4.REPLACEMENT OF PARTS
4.2.19 Side-L assembly, side-R assembly and base
assembly
.
(1) Remove the left side cover, the right side cover, the rear cover, the top cover
assembly, the operator panel assembly, the feeder assembly, the guide-ejection
assembly and the registration assembly.

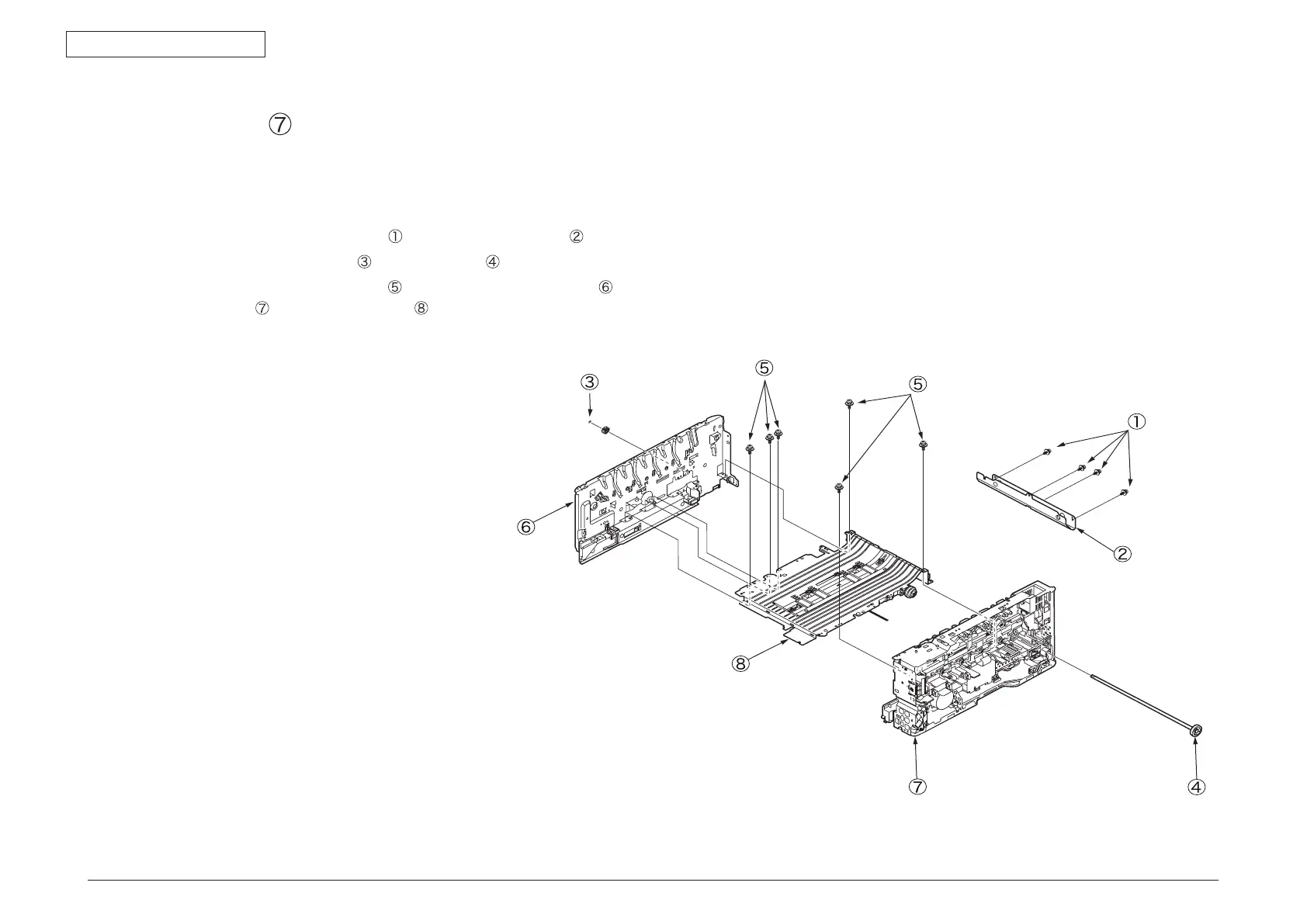

(2 Remove the four (silver-colored) screws
to remove the plate-bottom .
(3) Remove the E-shaped retainer ring
and then the shaft .
(4) Remove the six (silver-colored) screws
to detach the side-L assembly , the
side-R assembly and the base assembly .
