3. INSTALLATION
3.5 Assembly procedure
3.5.1 Assembly of the printer main unit
Setup of the printer

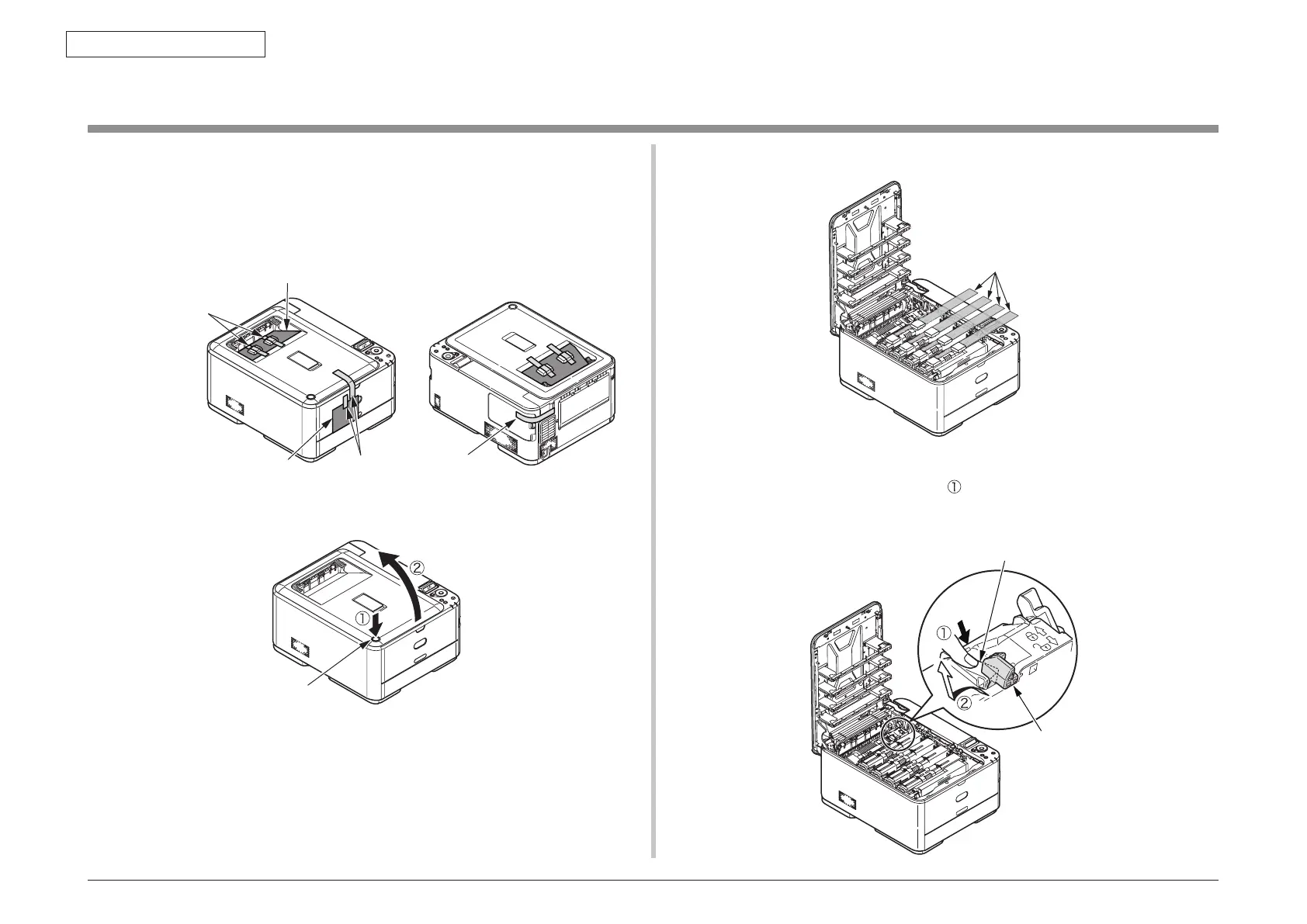

(1) Remove the protective tapes (six places) from the surface of the printer.
Paper
Paper
Protective tape
Protective tape
Protective tape
(2) Press the OPEN button to open the top cover.
(3) Remove the four protective sheets.
OPEN button
Stopper release
(orange)
Lever (blue) of the fuser unit
(4) Remove the stopper release (orange) while pushing down the lever (blue) of the
fuser unit in the direction of the arrow .
Note! The stopper release is used when the printer is not used for a long time or
being transported. Be sure to keep it.
Protective sheet
