44951501TH Rev.2
4-5
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

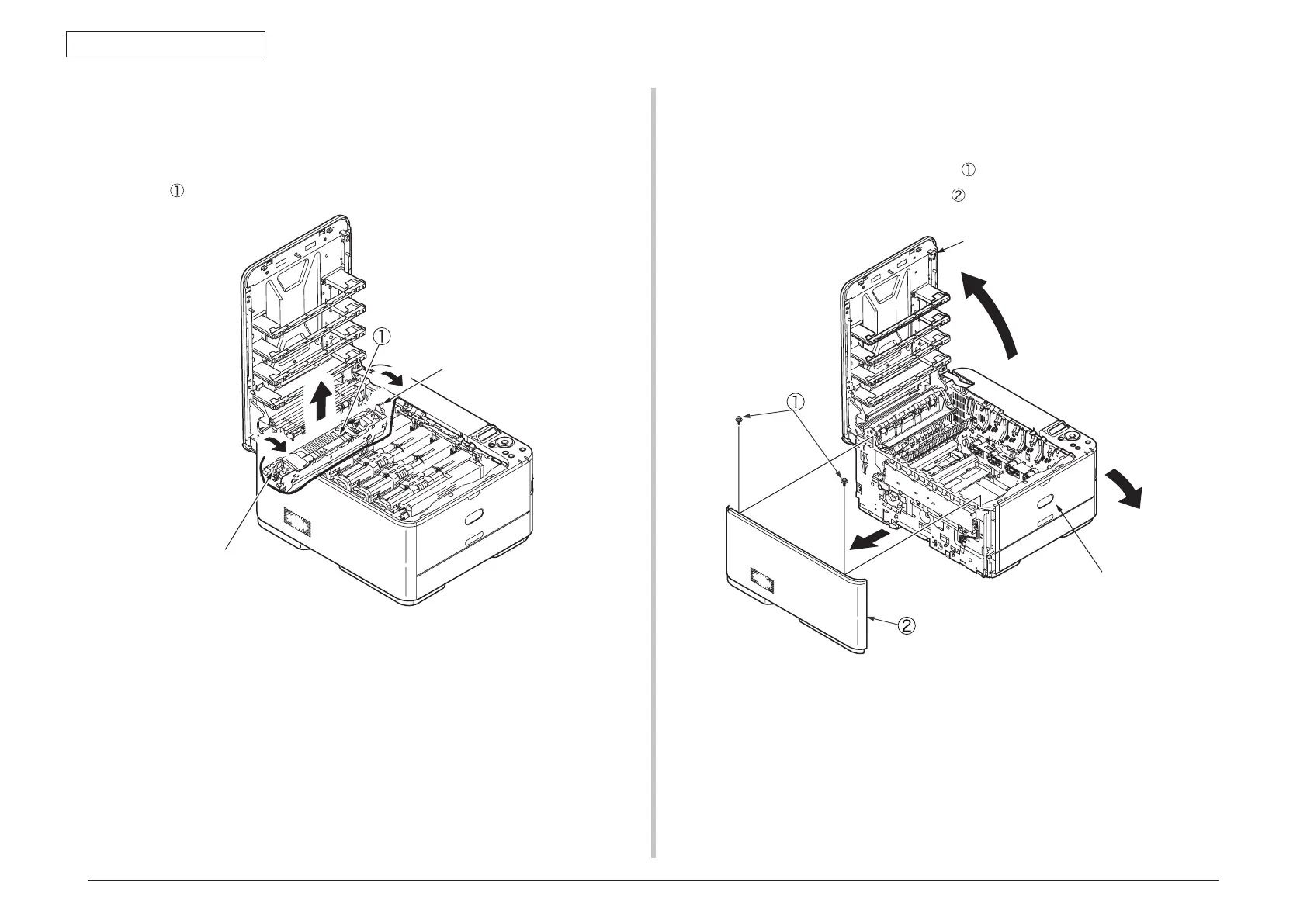

4.2.2 Fuser unit
(1) Open the top cover.
(2) Pull the (blue) fuser unit lock lever in the direction of the arrow and detach the fuser
unit
.
4.2.3 Left side cover
(1) Open the top cover.
(2) Remove the two (silver-colored) screws
.
(3) Unlatch and detach the left side cover
.
Fuser unit lock lever (blue)
Fuser unit lock lever (blue)
Feeder unit
Top cover
