4.REPLACEMENT OF PARTS
4.2.18 Frame-MPT assembly and feeder assembly
(1) Remove the left side cover, the right side cover, the rear cover, the hopping motor,
the plate shield assembly, the operator panel assembly, the cover-open switch and
the frame-MPT-side.
(2) Remove the RGSNS, HPSNS and MPC cables of the PU/CUPCB.

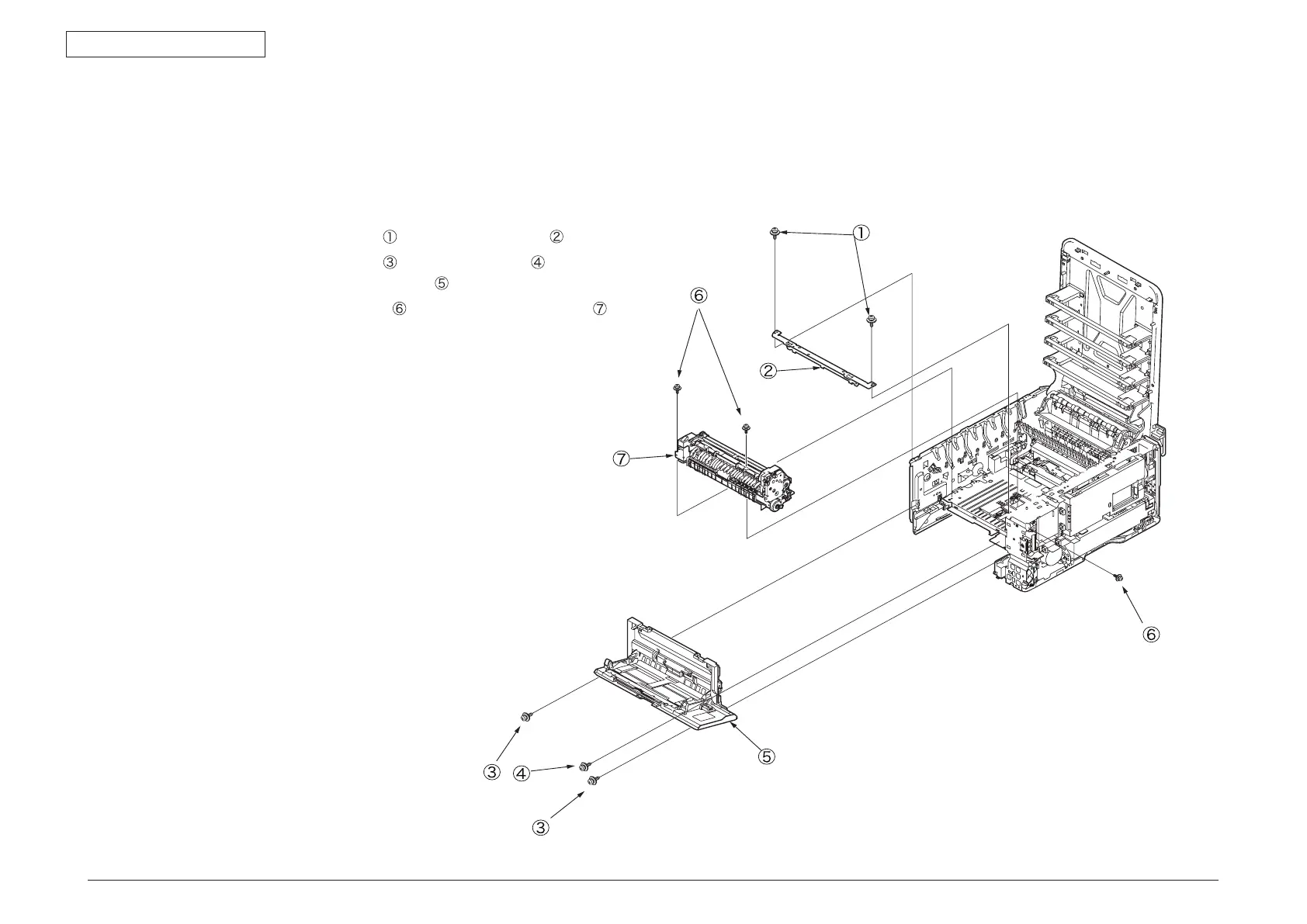

(3) Remove the two (silver-colored) screws
to remove the plate-front .
(4) Remove the two (silver-colored) screws
and the (black) screw and unlatch the
two portions to detach the frame-MPT assembly .
(5) Remove the three (silver-colored) screws
to detach the feeder assembly .
