44951501TH Rev.2
4-7
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

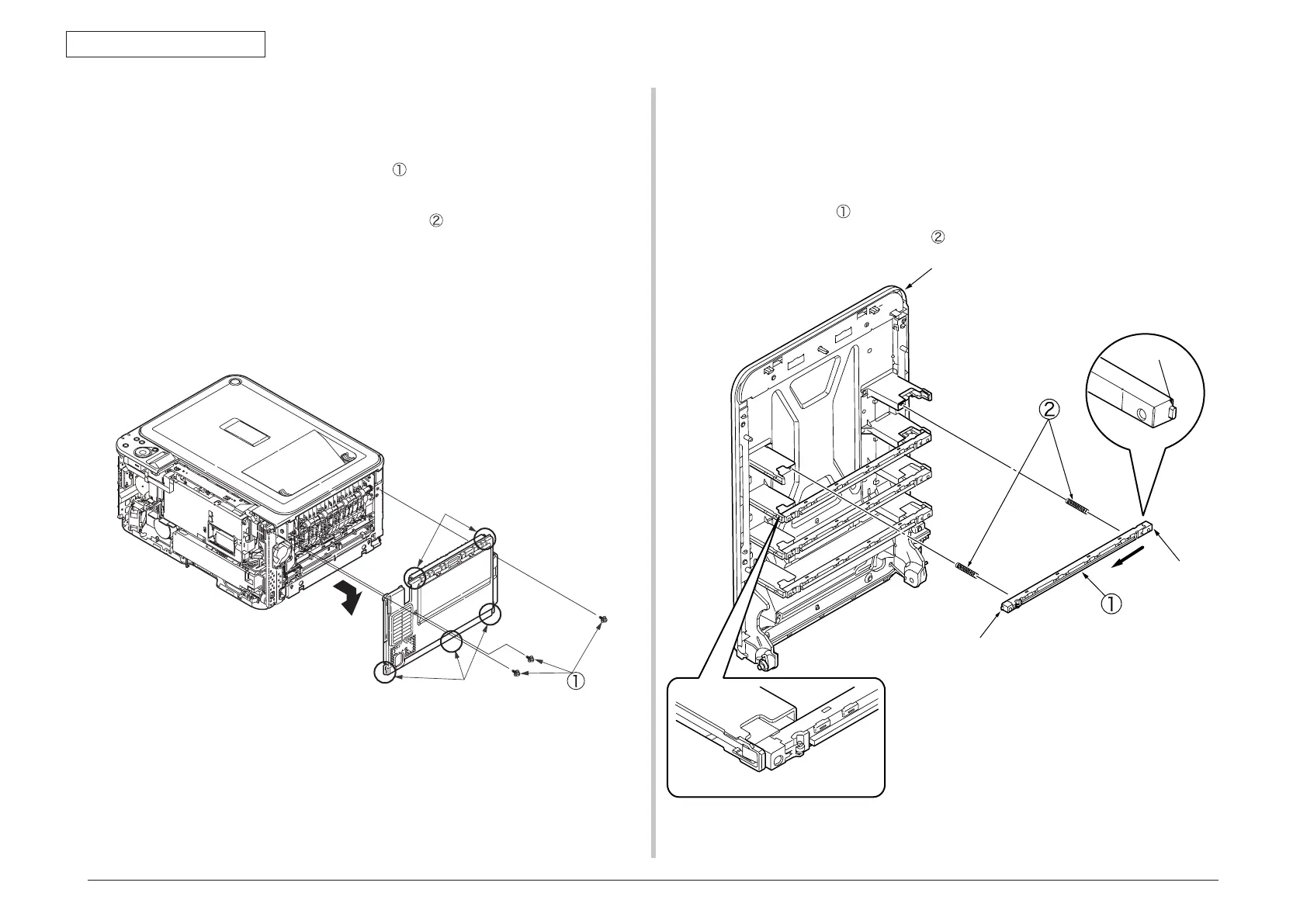

4.2.6 Rear cover
(1) Remove the left side cover and the right side cover.
(2) Remove the three (silver-colored) screws
.
(3) Unlatch two portions A with a flat-blade screwdriver.
(4) Unlatch three portions B to slide the rear cover
in the direction of the arrow C to
detach it.
4.2.7 LED assembly. and LED assembly springs
(1) Open the top cover.
(2) Remove the cables of the LED assembly. As shown in diagram (2), apply force in
the direction of the arrow to unlatch the portion A and then the portion B to detach
the LED assembly
.
(3) Turning the LED assembly springs
clockwise, detach it.
Latch B
Latch A
Diagram (1)
Diagram (2)
Latch A
Latches A
Latches A
C
To Next Page
