Introduction > 10
T
HE
O
PERATION
P
ANEL
The Operation Panel allows operator intervention and indicates both when the printer is
operating normally and when it requires attention.

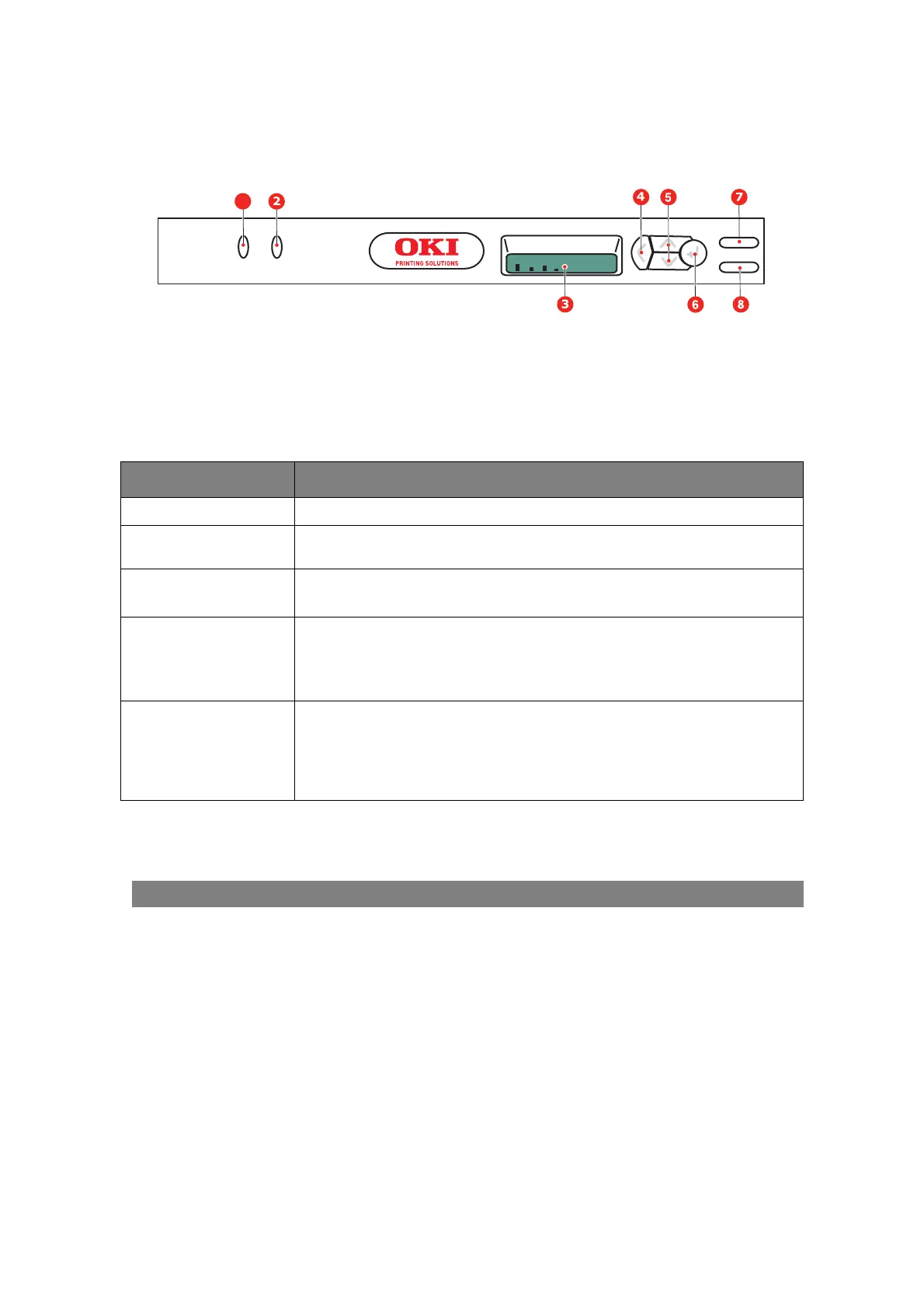

The Operation Panel incorporates 2 LEDs, a display screen and 6 push-button switches as
follows:
S
WITCHES
There are six switches on the operation panel labelled Back, Menu (up and down), Enter,
On Line and Cancel.
LED
S
There are two LEDs. A summary of the functions of each LED is given below:
Service call error
When a service call error occurs, all LEDs blink rapidly and simultaneously at 120ms
intervals.
SWITCH FUNCTION
4. Back Returns to the previous higher level menu item. Also exits menu.
5. Menu (up and down) Enters the Menu mode. In Menu mode, forwards or reverses the menu item
displayed. Press for 2 secs. or longer to fast forward or reverse.
6. Enter In the On Line or Off Line mode: enters the Menu mode.
In the Menu mode: determines the setting selected.
7. On Line Switches between OnLine and Off line.
Exits the menu and goes ONLINE when pressed in the Menu mode.
Forces printing on the paper currently loaded when pressed with PAPER SIZE
ERROR displayed.
8. Cancel Deletes the data being printed or received when pressed for two seconds or
longer.
Deletes the data when pressed for two seconds or longer when PAPER SIZE
ERROR or TRAY 1 EMPTY is displayed.
Exits the menu and goes ONLINE when pressed in the Menu mode.
LED FUNCTION
1. Attention ON: Attention state (e.g tray open/ paper out)
BLINKING: Warning state (e.g. cover open).
OFF: Normal condition.
2. On Line ON: Ready to receive data.
BLINKING: Processing data.
OFF: Offline.
C M Y K
1
