Introduction > 9
I
NSIDE
YOUR
PRINTER

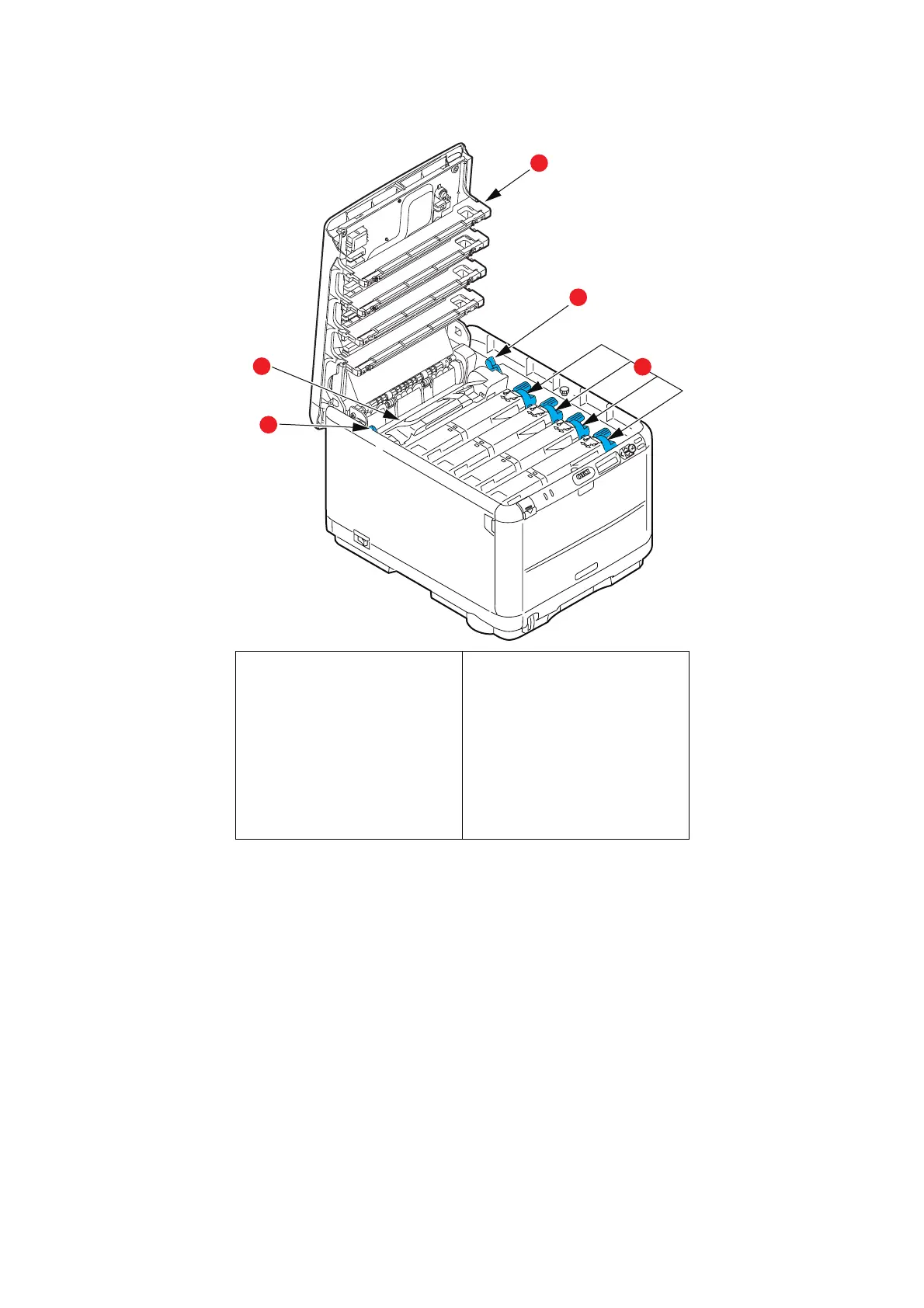

1. Fuser unit.
The Fuser unit contains a
heated roller that fixes toner
to the print media (paper or
card).
2. Fuser lever.
The lever has a locked
position for when the toner
cartridge is in place and an
unlocked position for removal
and changing.
3. Toner cartridges and toner
cartridge levers.
The 4 toner cartridges hold
dry powdered ink. The lever
locks the toner cartridge into
place on the image drum or
releases it for changing.
4. 4 LED (Light Emitting Diode)
Heads direct light onto the 4
image drums.
1
2
4
2
3
