Replacing consumable items > 44
R
EPLACING
THE
BELT
UNIT
The belt unit is located under the four image drums. This unit requires replacement
approximately every 60,000 pages.
Switch off the printer and allow the fuser to cool for about 10 minutes before opening the
cover.

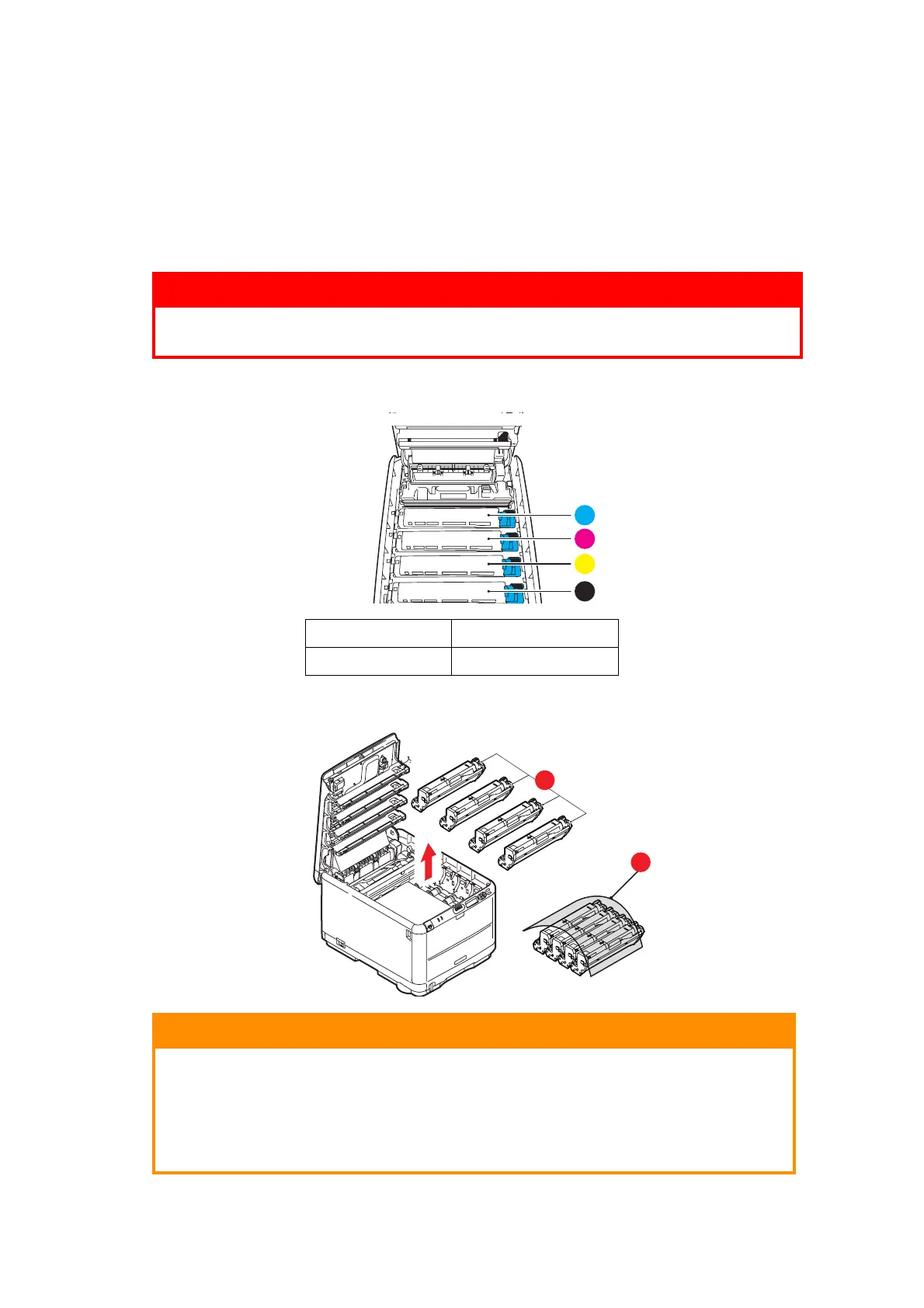

1. Press the cover release and open the printer’s top cover fully.
2. Note the positions of the four cartridges. It is essential that they go back in the same
order
3. Lift each of the image drum units out of the printer (1) and place them in a safe
place away from direct sources of heat and light (2).
WARNING!
If the printer has been powered on, the fuser will be hot. This area is
clearly labelled. Do not touch.
1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
CAUTION!
The green image drum surface at the base of each cartridge is very
delicate and light sensitive. Do not touch it and do not expose it to
normal room light for more than 5 minutes. If the drum unit needs to
be out of the printer for longer than this, please wrap the cartridge
inside a black plastic bag to keep it away from light. Never expose the
drum to direct sunlight or very bright room lighting.
1
2
3
4
2
1
