- 35 -

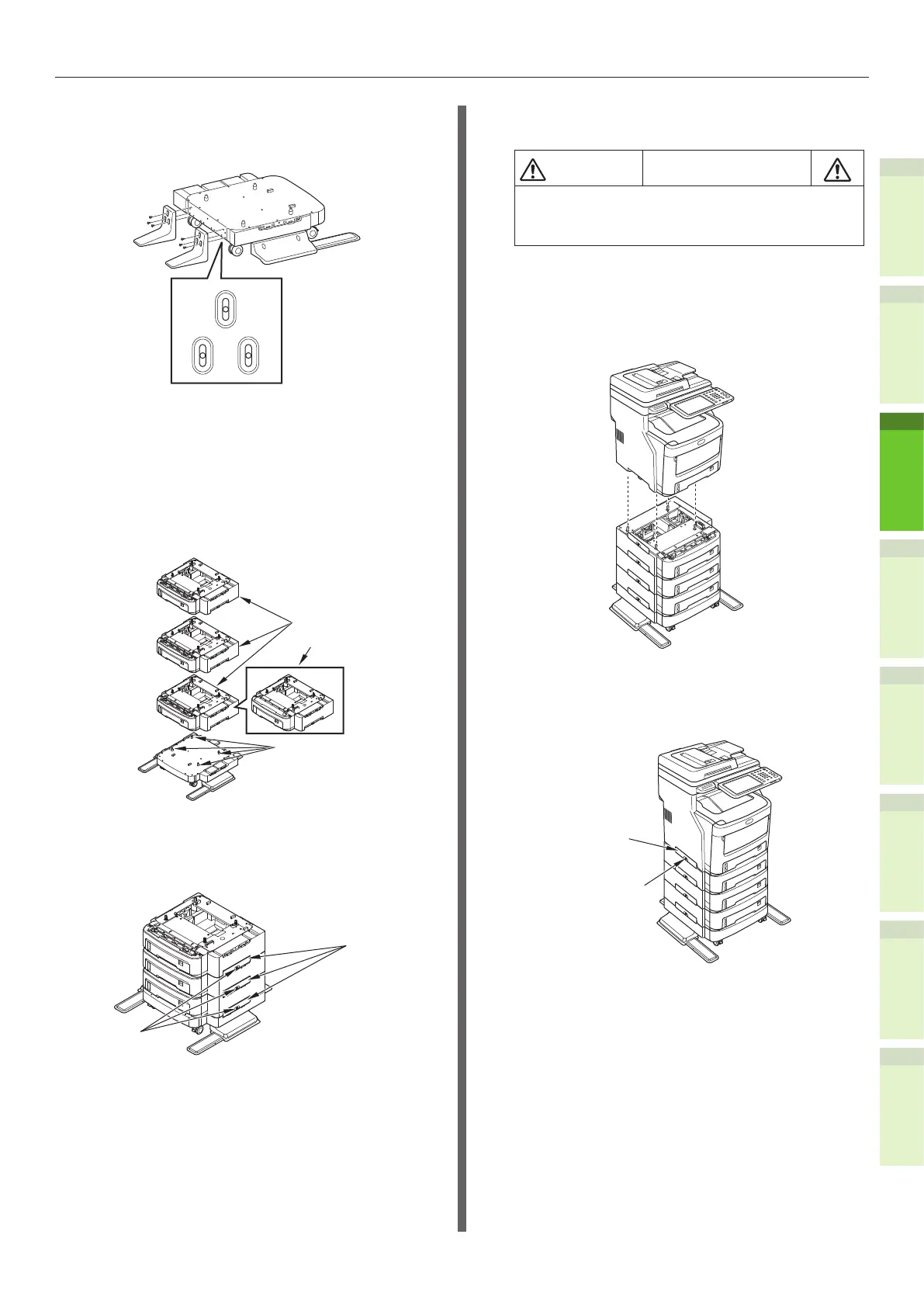

Installing Additional Tray Units
1
2
4
5
6
3
(5) Put the bottoms of the anti-tip
feet on the oor and tighten
them with three screws.
Attach the screw in the middle of the
oval cutout and tighten the screw.
4
Attach the additional tray and
spacer to the caster unit.
(1) Insert the posts of the cabinet to the
bottom holes of the tray.
Trays
Spacer
Post
(2) Fix the tray with the joint-option
and tighten the screws with the
screw-knob.
Joint-
Option
Screw-Knob
Tighten them on the both sides.
5
Put the machine on the additional
tray unit.
May cause injury!
•
At least three people are needed to
safely lift the machine due to its 50 kg
weight.
(1) Align the rear sides of the
machine and the additional
tray unit and place the machine
quietly.
(2) Fix the additional tray unit with
the joint-option, and tighten the
screw with the screw-knob.
Screw Knob
Joint Option
To Next Page
