安裝鏡頭殼 （可選）
若要使用本產品，您需要可選鏡頭殼、變焦裝置以及單獨銷售的抗反射套環。確保該組合適合您的鏡頭
P.144。

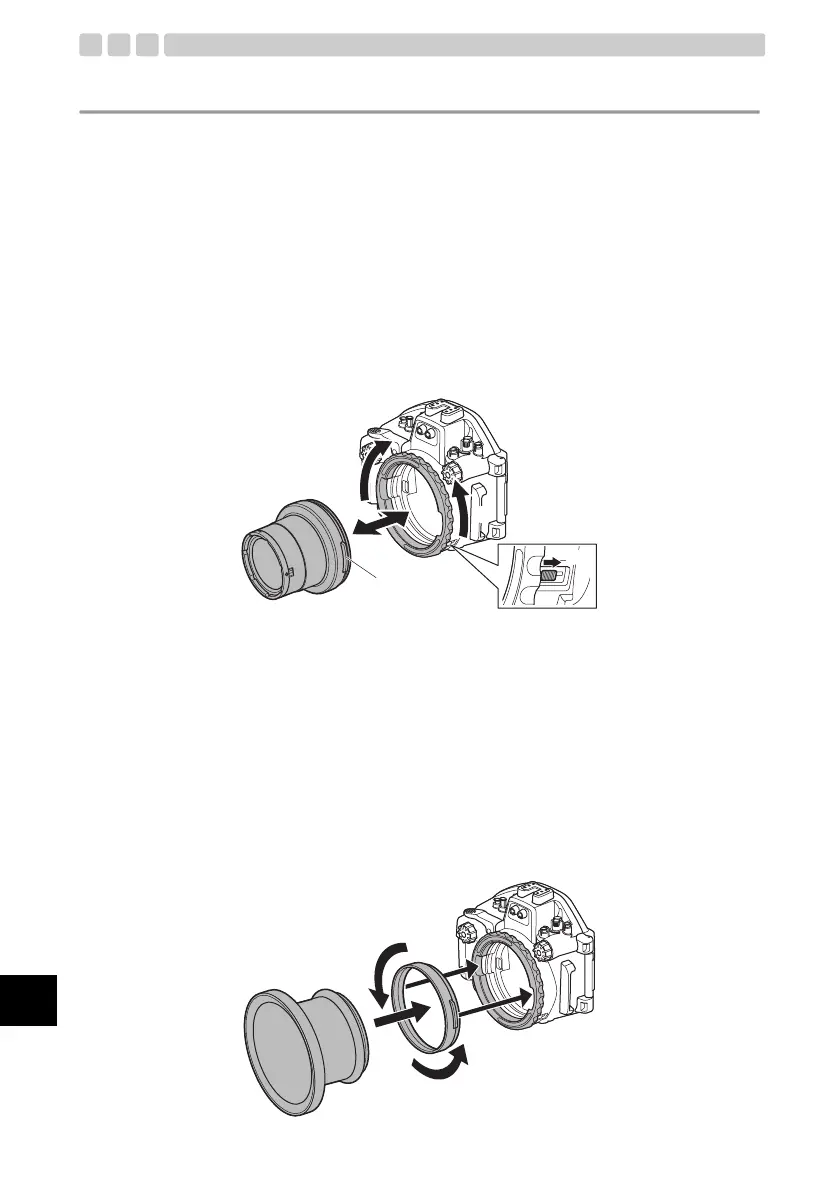

安裝與拆卸鏡頭殼
要開始準備工作，請遵循鏡頭殼的說明手冊。
對於鏡頭殼 PPO-EPXXX
安裝
將鏡頭殼安裝在潛水殼中 (1)。
然後，旋轉鏡頭殼套環 (2) 以鎖定。
確保鏡頭殼套環鎖定。
拆卸
滑動鏡頭殼套環的滑鎖 (3) 時，旋轉鏡頭殼套環 (4)。
然後，取下鏡頭殼。
對於鏡頭殼配接器 (PAD-EP08)
安裝
按逆時針方向將鏡頭殼配接器輕輕擰入到鏡頭殼 (1) 中。
將鏡頭殼配接器的左右突出部分安裝到鏡頭殼套環的凹陷部分 (2) 中。
擰緊鏡頭殼上的鏡頭殼配接器。
旋轉鏡頭殼套環以鎖定。
確保鏡頭殼套環鎖定。
拆卸
滑動鏡頭殼套環的滑鎖時，旋轉鏡頭殼套環。
取下鏡頭殼與鏡頭殼配接器。
旋轉鏡頭殼配接器，從鏡頭殼中卸下。
當鏡頭殼安裝在潛水殼上時，如果很難取下鏡頭殼配接器，請旋轉鏡頭殼以便使其鬆動。
3
4
1
2
1
1
2
