Running by Virtual External Inputs Section 8-4
177
Example for Operation Tim-
ing of the I/O Condition Ex-
pressions

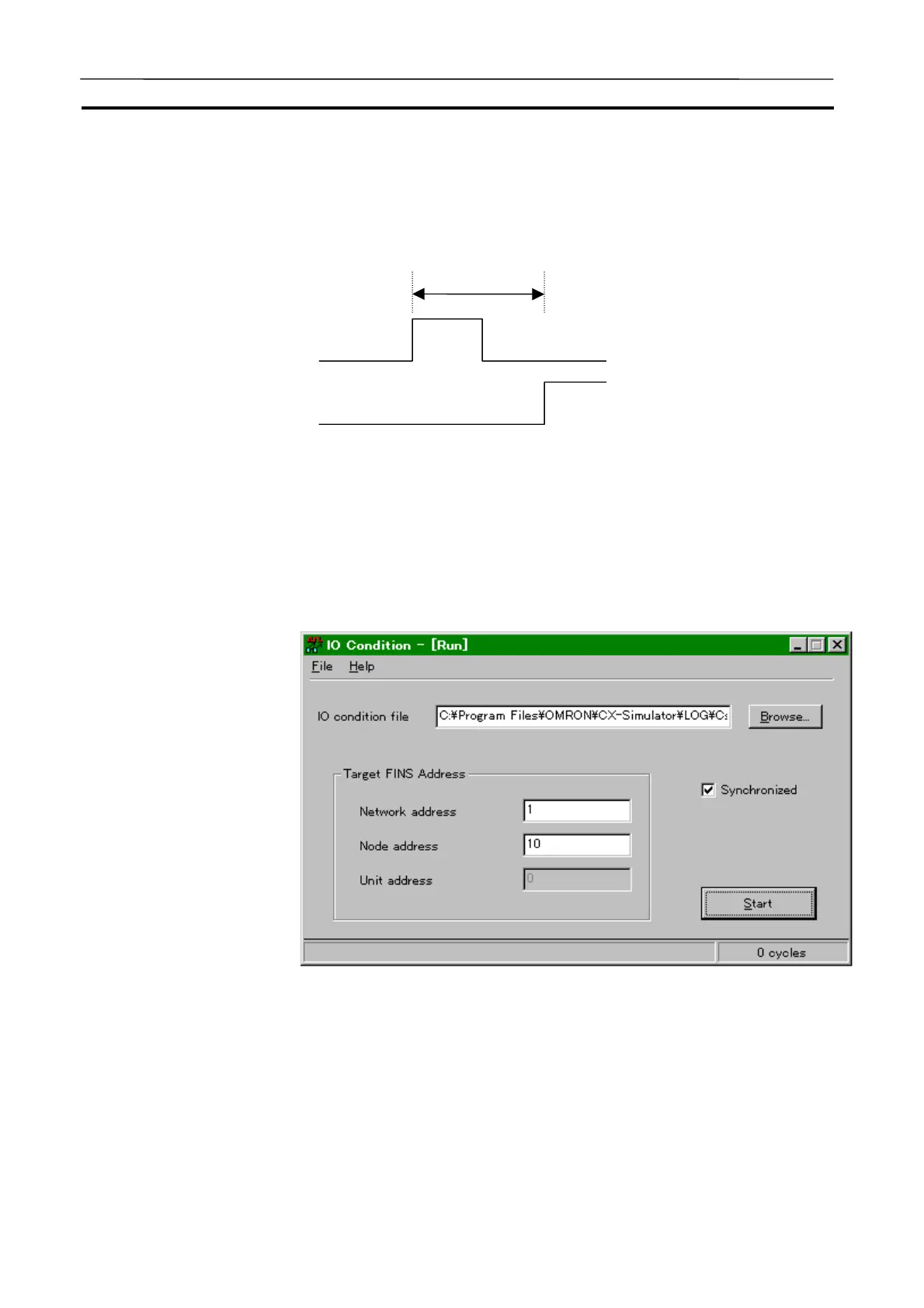

The following example shows the timing from when the I/O Condition expres-
sions hold to when the values registered in the output expressions are set, if
the delay time is 200 ms.
How to Replay using the I/O
Condition Tool
This section explains how to perform virtual external input using the I/O Con-
dition Tool.
1,2,3…
1. Select [IO Condition] in the [CX-Simulator Debug Console] | [Replay]
menu to display the [Run] window of the I/O Condition Tool.
2. Input "IO condition file" to the execution file. Browsing files using the
[Browse] button or [Open] in the [File] menu is also possible.
3. Check the target FINS address. Usually there is no need to change it be-
cause the FINS address for the Ladder Engine is set in default.
4. Check whether or not Synchronous process is specified. Multiple Syn-
chronous processes can not be performed at the same time. When an-
other Synchronous process is needed, remove the check mark for the
Synchronous process.
5. After checking the settings, click the [Start] button.
IO 0.0
IO 0.1
200 ms
Set output expressions.
ON
OFF
ON
OFF
Condition expression: IO0.0=ON
Delay time: 200ms
Output expression: IO0.1=ON
Conditions
hold.
