7 Connecting to LSIS PLCs
NB-series Programmable Terminals Host Connection Manual (V108)

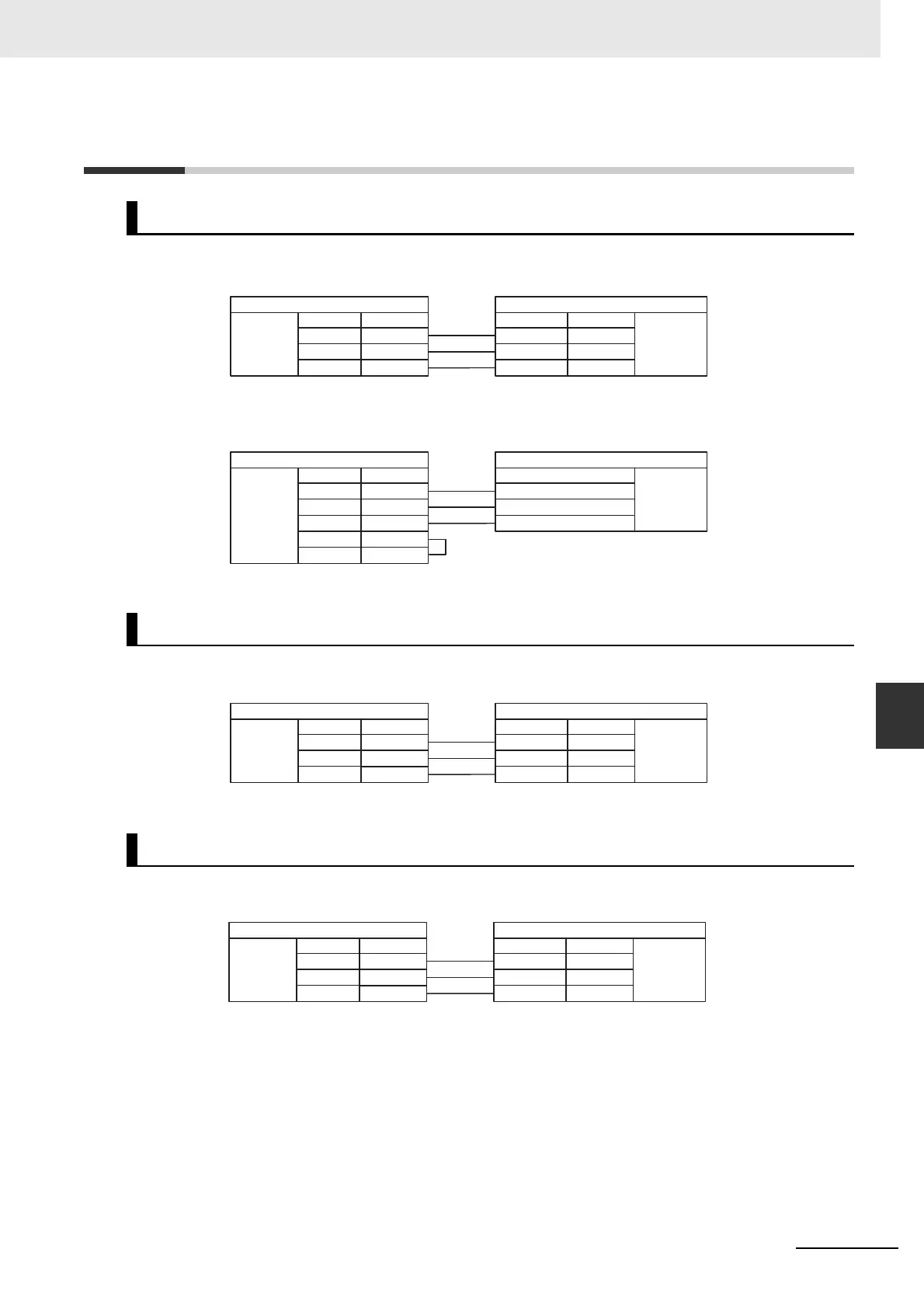

7-5 Cable Fabrication
7
7-5 Cable Fabrication
 RS232 Communication Cable
 RS485 Communication Cable
 RS232 Communication Cable
 RS232 Communication Cable
When Using LS Master-K Cnet/LS Master-K Modbus RTU Protocol
When Using LS Master-K CPU Direct Protocol
When Using LS XGT CPU Direct Protocol
PT (COM1/COM2)
Pin No.
2
3
9
Signal
SD
RD
SG
D-Sub
9Pin
(Female)
PLC
Pin No.
4
7
5
Signal
RX
TX
SG
D-Sub
9Pin
(Female)
PT (COM2)
Pin No.
6
8
9
Signal
RDB+
RDA-
SG
D-Sub
9Pin
(Female)
PLC
Signa l
SDB+/RDB+
SDA-/RDA-
SG
RS-485
connector
4 Terminal R1
5 Terminal R2
PT (COM1/COM2)
Pin No.
2
3
9
Signal
SD
RD
SG
D-Sub
9Pin
(Female)
PLC
Pin No.
2
3
5
Signal
RX
TX
GND
D-Sub
9Pin
(Female)
PT (COM1/COM2)
Pin No.
2
3
9
Signal
SD
RD
SG
D-Sub
9Pin
(Female)
PLC
Pin No.
2
6
3
Signal
RX
TX
GND
6Pin Mini
Din
(Female)
