Omron NS5-MQ00 V2 Series User Manual

3-7 Installing the Video Input Unit
3-7-4 Connecting to Video Input Connectors
Use the following method to connect cameras to the Video Input Unit mounted to the PT.
Note The tensile load of the cable is 30 N maximum. Do not exceed maximum load
● Connecting to Video Input Connectors

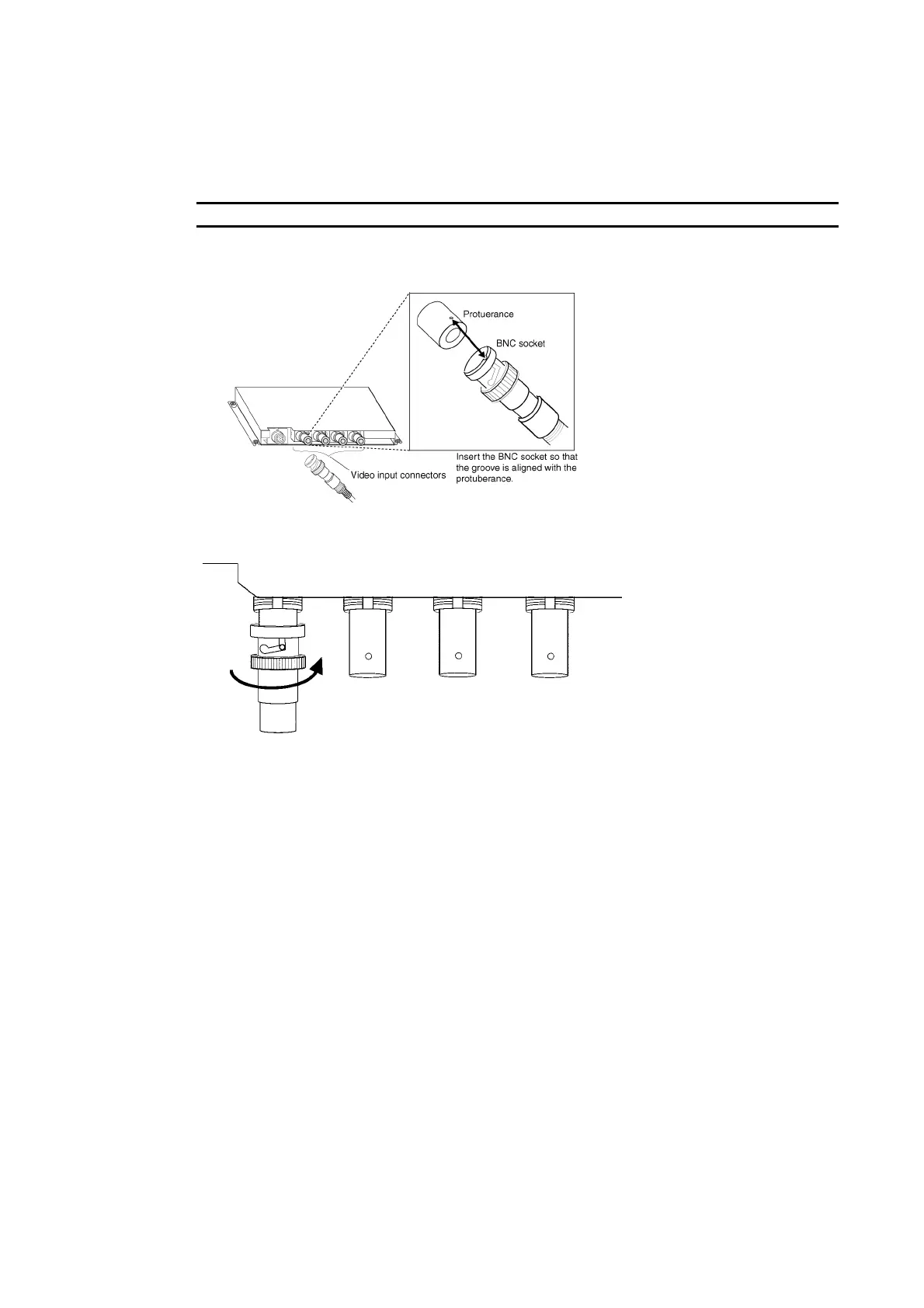

1. Insert the BNC socket on the camera’s video output cable into a video input connector.
2. After inserting the BNC socket, twist it clockwise until it locks into place.
Twist clockwise.
3-34

Omron NS5-MQ00 V2 Series Specifications

General

Display Size	5.7 inches
Display Type	TFT Color LCD
Touch Type	Analog Resistive
Power Supply	24 VDC
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Resolution	320 x 240 pixels
Communication Ports	RS-232C, USB
Protection Rating	IP65 (front panel)
