3-2
3-1 Installation

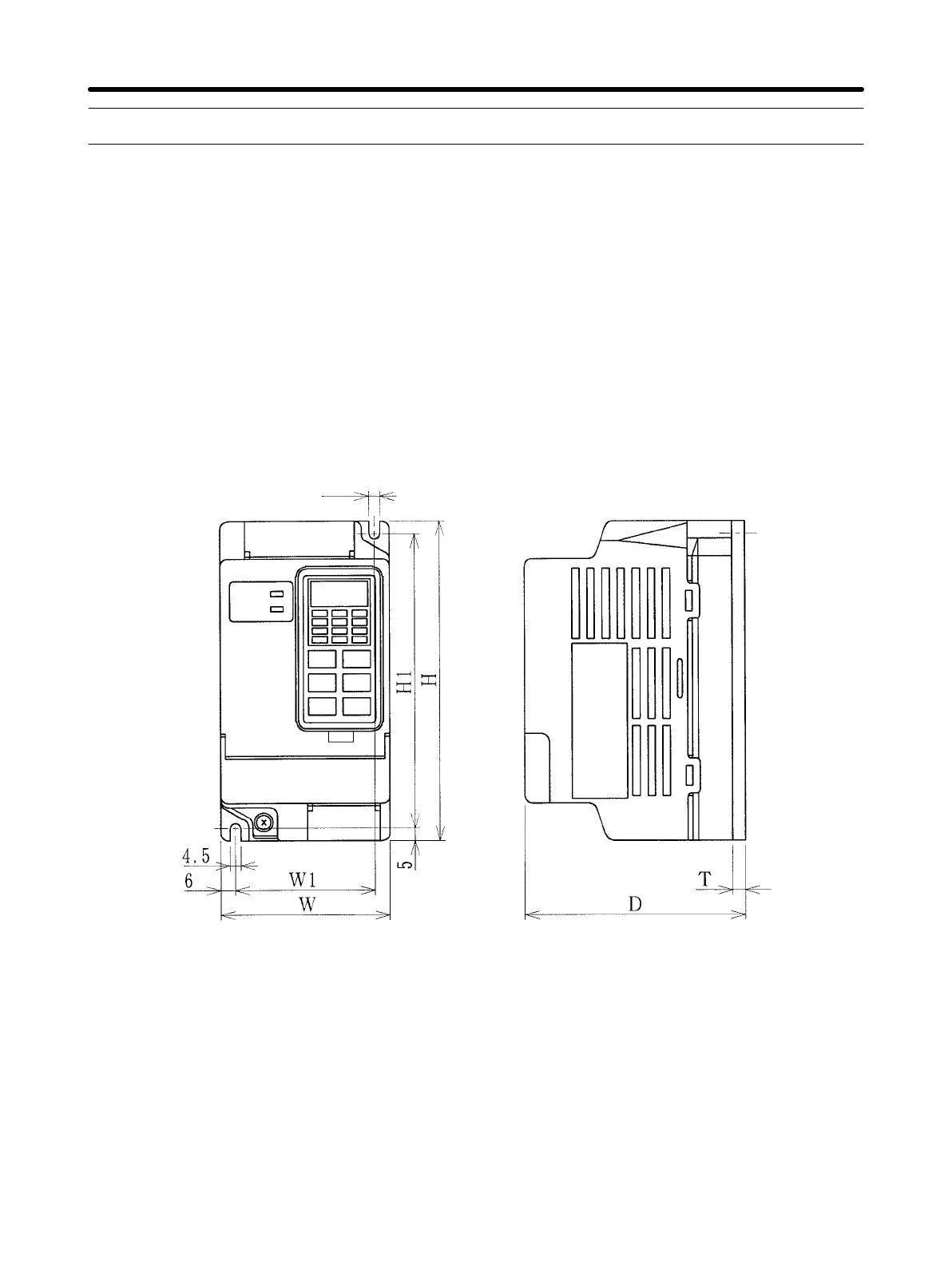

3-1-1 Outside/Mounting Dimensions
Note All dimensions are in millimeters.
H 3G3EV-A2001M(-j) to 3G3EV-A2004M(-j) (0.1 to 0.4 kW):
Three-phase 200-VAC Input
H 3G3EV-AB001M(-j) to 3G3EV-AB002M(-j) (0.1 to 0.2 kW):
Single/Three-phase 200-VAC Input
4.5 dia.
Note 1. For the 3G3EV-A2001M(-j), 3G3EV-A2002M(-j), and 3G3EV-AB001M(-j),
a U-shaped notch (4.5 mm wide) is provided instead of the upper mounting hole
(4.5 mm in diameter).
Note 2. Install the Inverter with two M4 bolts.
Design Chapter 3
