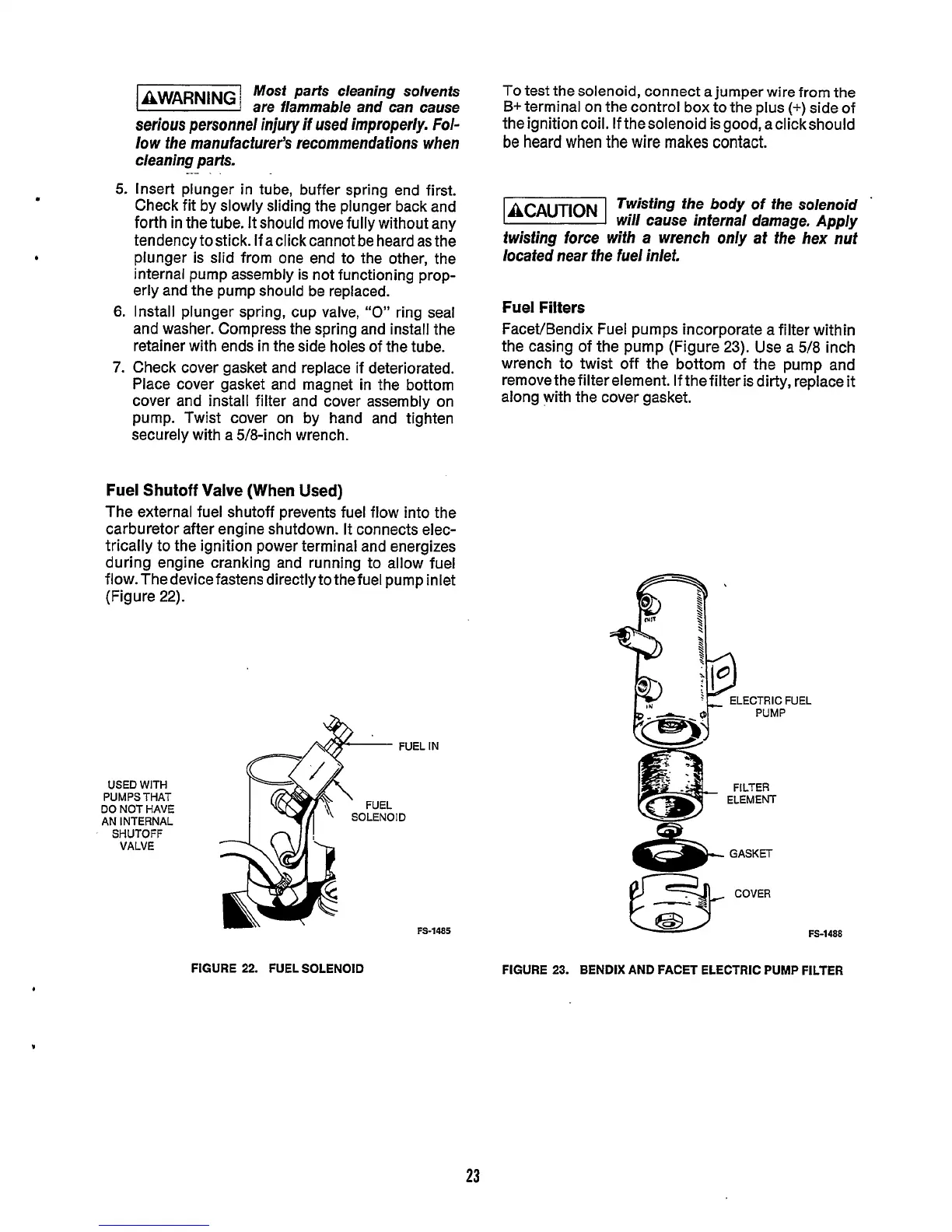

Most parts cleaning solvents
are flammable and can cause
serious personnel injury
if
used improperly.
Fol-
low fhe manufacturer‘s recommendafions when
cleaning
parts.
5.
Insert plunger in tube, buffer spring end first.
Check fit by slowly sliding the plunger back and
forth in the tube.
It
should move fully without any
tendency tostick. If aclick cannot be heard as the
plunger is slid from one end to the other, the
internal pump assembly
is
not functioning prop-
erly and the pump should be replaced.
6.
Install plunger spring, cup valve,
“0”
ring seal
and washer. Compress the spring and install the
retainer with ends in the side holes of the tube.
7.
Check cover gasket and replace if deteriorated.
Place cover gasket and magnet in the bottom
cover and install filter and cover assembly on
pump. Twist cover on by hand and tighten
securely with a 5/8-inch wrench.
---
.
.
Fuel
Shutoff
Valve
(When
Used)
The external fuel shutoff prevents fuel flow into the
carburetor after engine shutdown. It connects elec-
trically to the ignition power terminal and energizes
during engine cranking and running to allow fuel
flow.Thedevicefastens directly to the fuel pump inlet
(Figure
22).
USED WITH
PUMPSTHAT
DO
NOT HAVE
AN INTERNAL
SHUTOFF
VALVE
FS-1485
To
test
the
solenoid, connect
a
jumper wire from
the
B+
terminal on the control box to the plus
(+)
side
of
the ignition coil. If thesolenoid is good, aclickshould
be heard when the
wire
makes
contact.
-1
Twisfing the body
of
the solenoid
.
will cause infernal damage. Apply
twisting
force with
a
wrench only
at
fbe hex nut
locafed near fbe fuel inlef.
Fuel
Filters
Facet/Bendix Fuel pumps incorporate a filter within
the casing of the pump (Figure
23).
Use a
5/8
inch
wrench to twist off the bottom
of
the pump and
remove the filter element. If thefilter is dirty, replace
it
along with the cover gasket.
GASKET
FIGURE
22.
FUEL SOLENOID
FIGURE
23.
BENDIX
AND
FACET ELECTRIC
PUMP
FILTER
23
