- CAUTIDH-
REGULATOR MUST BE
MWKTED BLHlW
BWER WHEEL
81
----
ii
S'I I

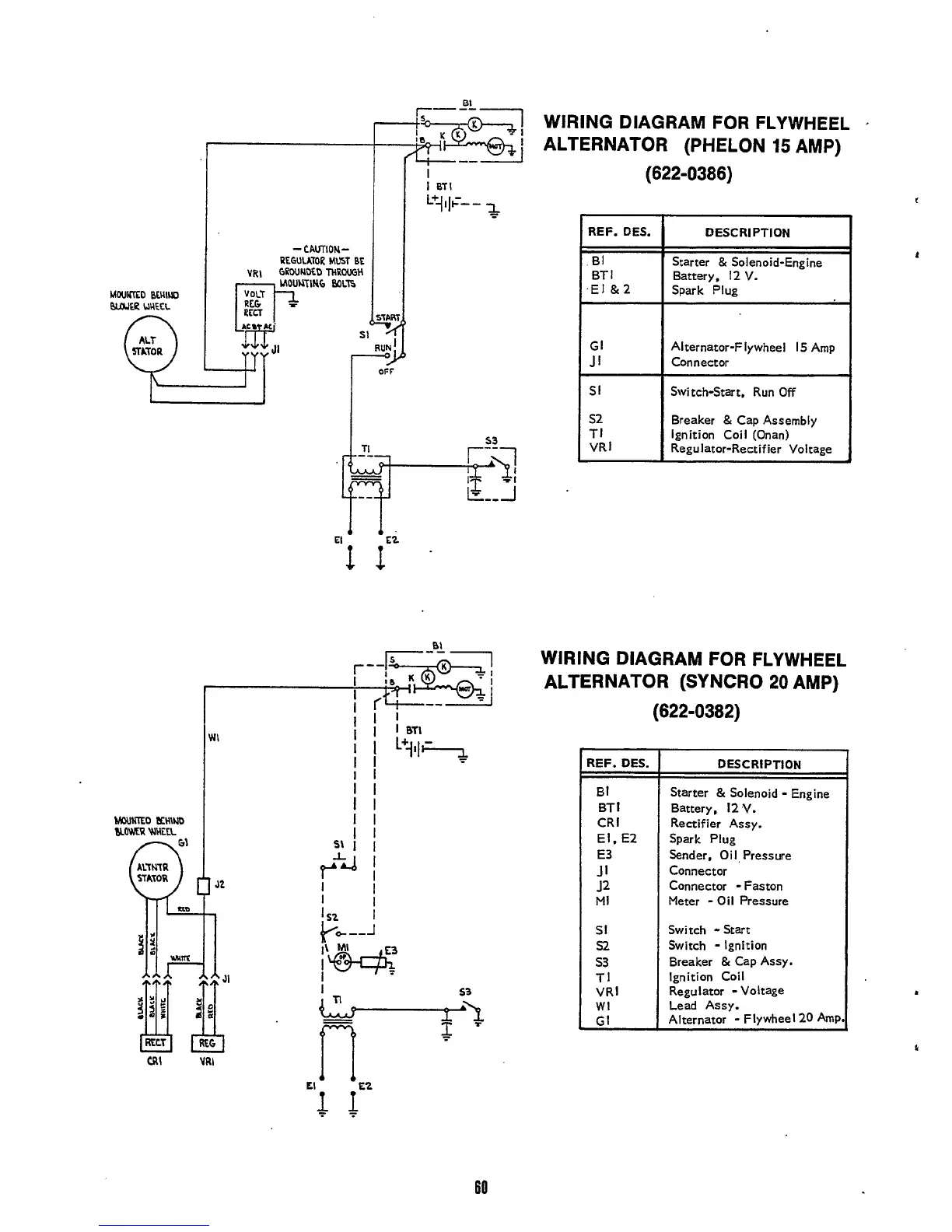

WIRING DIAGRAM FOR FLYWHEEL *
ALTERNATOR (PHELON 15 AMP)
(622-0386)
REF. DES.
BI
BT
I
.El &2
GI
JI
SI
s2
TI
VR I
DESCRI PTlON I
Starter & Solenoid-Engine
Battery,
12 V.
Spark Plug
Alternator-Flywheel
15 Amp
Connector
Switch-Start, Run
Off
Breaker & Cap Assembly
Ignition Coil (Onan)
Regulator-Rectifier Voltage
WIRING DIAGRAM FOR FLYWHEEL
ALTERNATOR (SYNCRO
20 AMP)
(622-0382)
REF. DES.
BI
BT
I
CR I
El. E2
E3
JI
J2
MI
SI
52
53
TI
VRI
WI
GI
DESCRIPTION
Starter & Solenoid - Engine
Battery,
12 V.
Rectifier Assy.
Spark Plug
Sender, Oil, Pressure
Connector
Connector
- Faston
Meter
- Oil Pressure
Switch -Start
Switch
- Ignition
Breaker
& Cap Assy.
Ignition Coil
Regulator -Voltage
Lead Assy.
Alternator
- Flywheel 20 hp
60
