Onkyo A-9130 User Manual

12
Preparations
a Analog Audio Cable

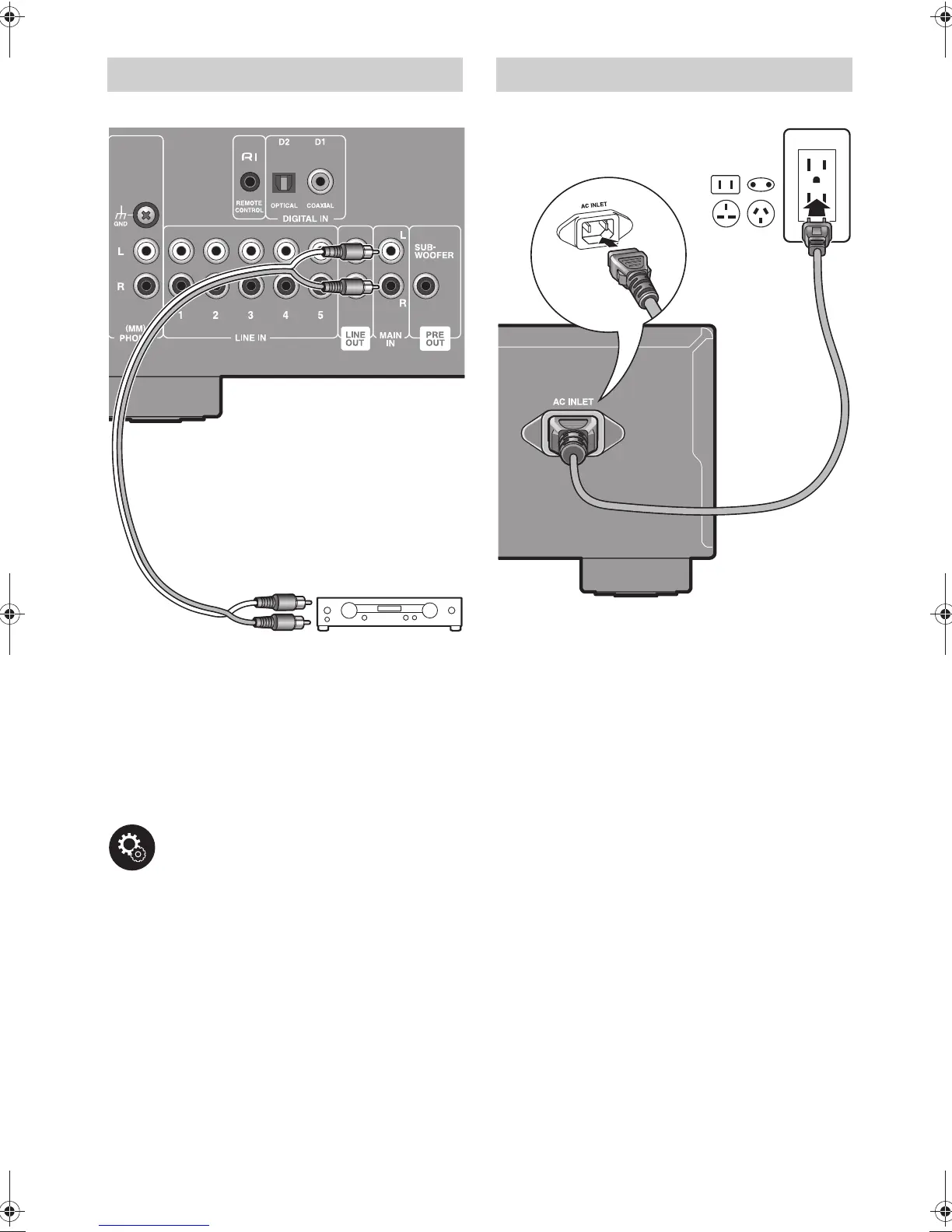

Connect your pre-amplifier and you can use this unit as a
power amplifier. Connect the MAIN IN jacks of the unit and
the PRE OUT jacks of the pre-amplifier with an analog audio
cable.
0 Do not connect a source device (CD device, etc.) to the
MAIN IN jack. Doing so may produce high-volume sound
that can damage the unit, speakers, and various other
devices.
Setup: Switch the unit to power amplifier mode to use this
unit as a power amplifier. (p19)
a Power Cord
This model includes a removable power cord. The power
cord must be connected only after all other connections are
completed. Make sure you first connect the power cord to
AC INLET terminal of the unit and then connect to the outlet.
Always disconnect the outlet side first when disconnecting
the power cord.
Using this unit as a power amplifier
a
Pre-amplifier
Power Cord Hookup
a
SN29403409_A-9130_En_1806XX.book 12 ページ ２０１８年７月１２日 木曜日 午後８時４５分

Onkyo A-9130 Specifications

Audio Specifications

rated output power	60 W at 4 ohms, 20 Hz-20 kHz
dynamic power	260 W (3 ohms, Front)
input sensitivity and impedance	200 mV/47 kohms (LINE (RCA))
frequency response	10 Hz - 100 kHz
signal to noise ratio	106 dB (IHF-A, LINE IN, SP OUT)
speaker impedance	4 ohms - 16 ohms

Power

power supply	AC 220-230 V, 50/60 Hz
power consumption	150 W
standby power consumption	0.2 W

Weight and Dimensions

dimensions	435 mm x 129 mm x 330 mm
dimensions (inches)	17-1/8" x 5-1/16" x 13"
weight	8.0 kg (17.6 lbs)
