Before use
1. RI REMOTE CONTROL jack: This jack is for linking when
you connect an Onkyo CD player, tuner, network audio
player, or RI dock that has an RI (“Remote Interactive”)
jack. (p11)
2. DIGITAL IN COAXIAL D1/DIGITAL IN OPTICAL D2 jacks:
Input digital audio signals from a playback device with a
digital coaxial cable or digital optical cable. (p9)
3. SPEAKERS terminals: Connect speakers with speaker
cables. (Not compatible with connection using banana
plugs or Y plugs.) (p8)
4. AC INLET: Connect the supplied power cord. (p12)
5. GND terminal: The ground wire of the turntable is
connected.
6. PHONO (MM) jacks: Use an Analog audio cable to
connect a Turntable that uses an MM type cartridge.
(p10)
7. LINE IN jacks: Input audio signals from a playback device
with an analog audio cable. (p10)
8. LINE OUT jacks: Use an Analog audio cable to output
audio signals to recording equipment, such as a cassette
tape deck. To select the input source for recording, use
the INPUT dial on this unit or use the remote controller.
9. MAIN IN jacks: When using this unit as a power amplifier,
connect the pre-amplifier here. (p12)
10. SUBWOOFER PRE OUT jack: Connect a powered
subwoofer with a subwoofer cable. (p9)

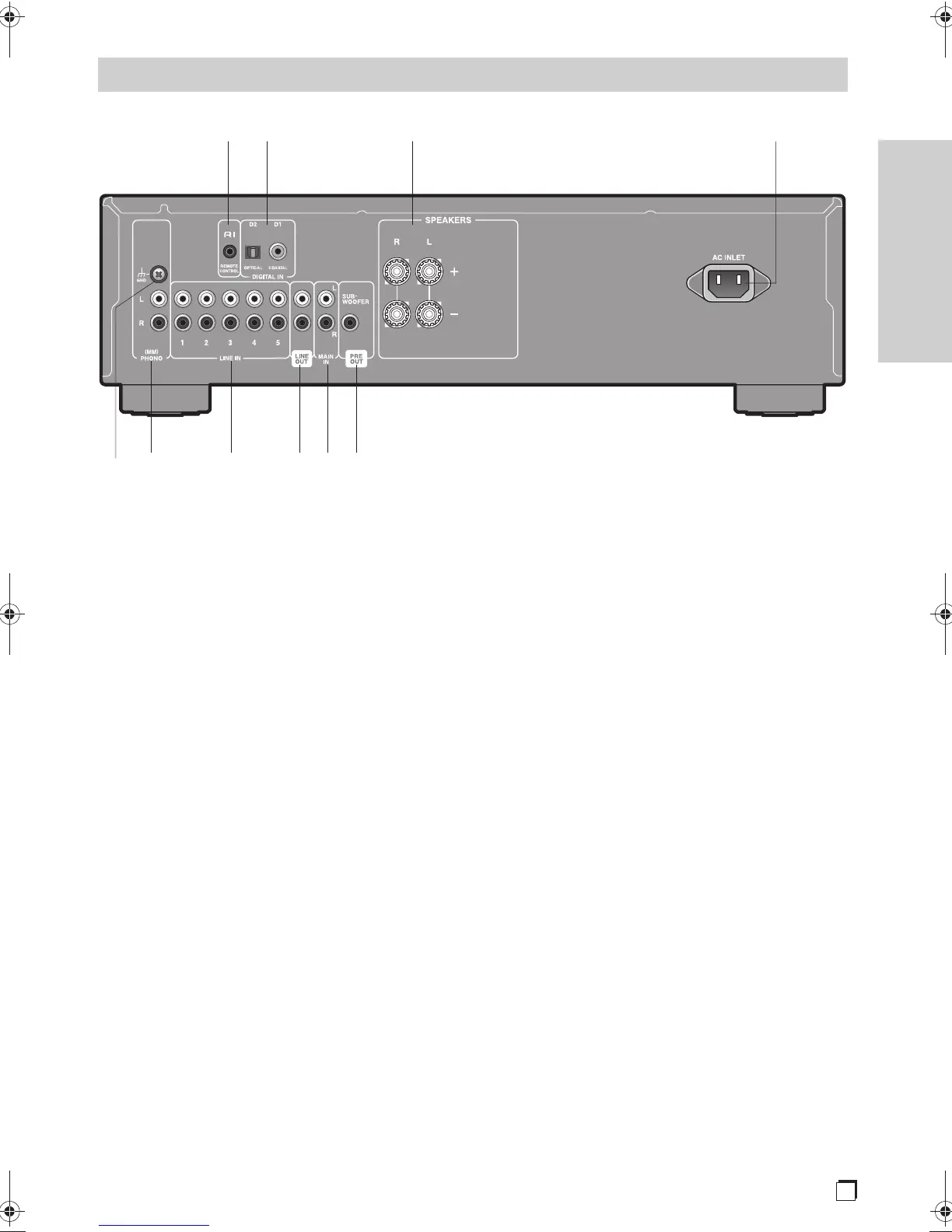

Rear Panel
 




SN29403409_A-9130_En_1806XX.book 5 ページ ２０１８年７月１２日 木曜日 午後８時４５分

Onkyo A-9130 Specifications

Audio Specifications

rated output power	60 W at 4 ohms, 20 Hz-20 kHz
dynamic power	260 W (3 ohms, Front)
input sensitivity and impedance	200 mV/47 kohms (LINE (RCA))
frequency response	10 Hz - 100 kHz
signal to noise ratio	106 dB (IHF-A, LINE IN, SP OUT)
speaker impedance	4 ohms - 16 ohms

Power

power supply	AC 220-230 V, 50/60 Hz
power consumption	150 W
standby power consumption	0.2 W

Weight and Dimensions

dimensions	435 mm x 129 mm x 330 mm
dimensions (inches)	17-1/8" x 5-1/16" x 13"
weight	8.0 kg (17.6 lbs)
