Preparations
a Speaker Cable
(Note) Speaker Impedance
Connect speakers with an impedance of 4 ≠ to 16 ≠.
Setup: You have to change the setting on this unit if any of
the connected speakers have 4 ≠ or more to less than 8 ≠
impedance. Change the speaker impedance setting to 4 ≠.
(p14)
Connect the Speaker Cables
Make correct connection between the unit’s jacks and
speaker’s jacks (+ side to + side, and - side to - side) for
each channel. If the connection is wrong, a bass sound will
not be reproduced properly due to reverse phase. Twist the
wires exposed from the tip of the speaker cable so that the
wires do not stick out of the speaker terminal when
connecting. If the exposed wires touch the rear panel, or the
+ side and - side wires touch each other, the protection
circuit will be activated.

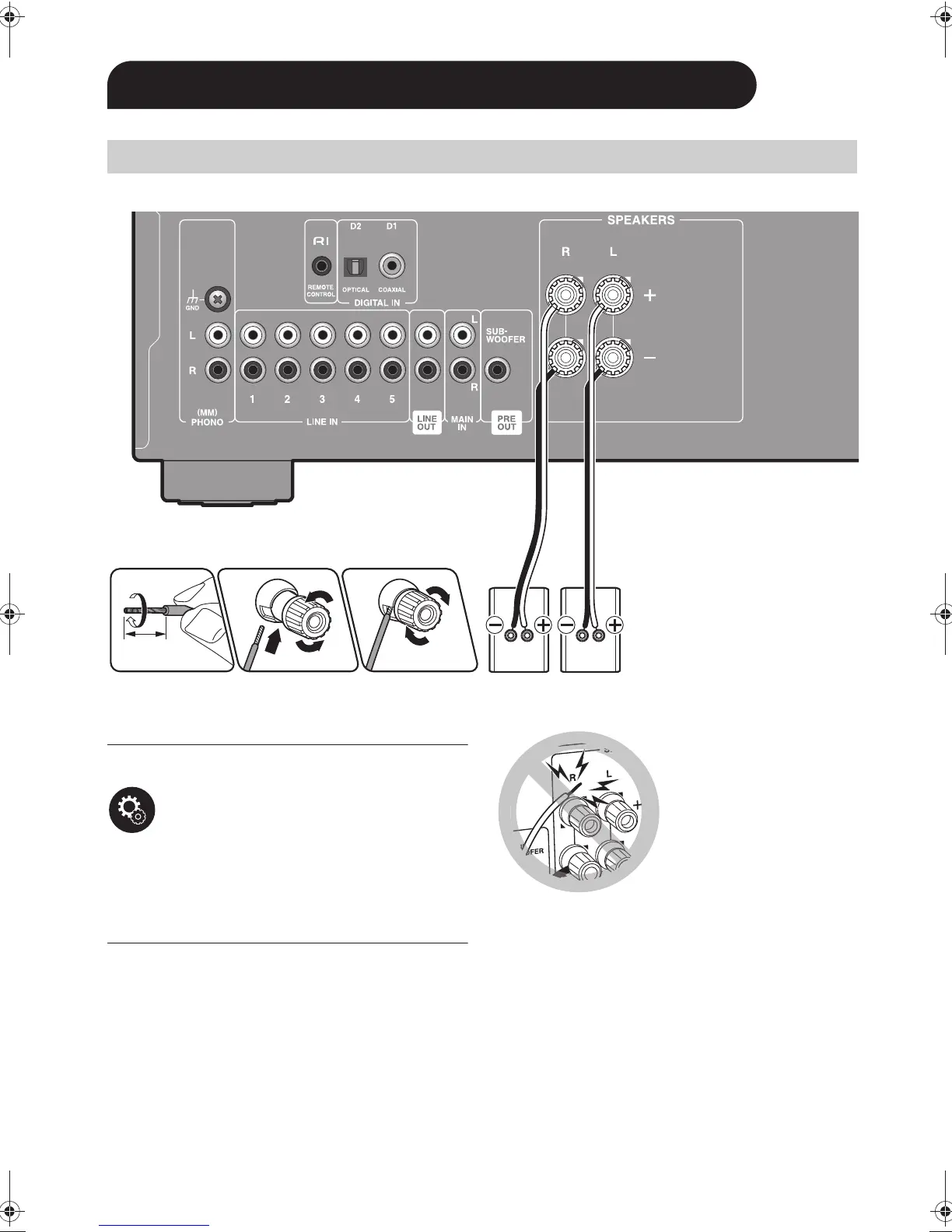

Connecting speakers
Connections
a
1/2”~5/8”
(12~15 mm)
Right Left
SN29403409_A-9130_En_1806XX.book 8 ページ ２０１８年７月１２日 木曜日 午後８時４５分

Onkyo A-9130 Specifications

Audio Specifications

rated output power	60 W at 4 ohms, 20 Hz-20 kHz
dynamic power	260 W (3 ohms, Front)
input sensitivity and impedance	200 mV/47 kohms (LINE (RCA))
frequency response	10 Hz - 100 kHz
signal to noise ratio	106 dB (IHF-A, LINE IN, SP OUT)
speaker impedance	4 ohms - 16 ohms

Power

power supply	AC 220-230 V, 50/60 Hz
power consumption	150 W
standby power consumption	0.2 W

Weight and Dimensions

dimensions	435 mm x 129 mm x 330 mm
dimensions (inches)	17-1/8" x 5-1/16" x 13"
weight	8.0 kg (17.6 lbs)
