To control the AV receiver with the remote controller
while you’re in Zone 2, you’ll need a commercially avail-
able multiroom remote control kit for each zone.
• Multiroom kits are made by Niles and Xantech.
These kits can also be used when there isn’t a clear line of
sight to the AV receiver’s remote sensor, such as when it’s
installed inside a cabinet.

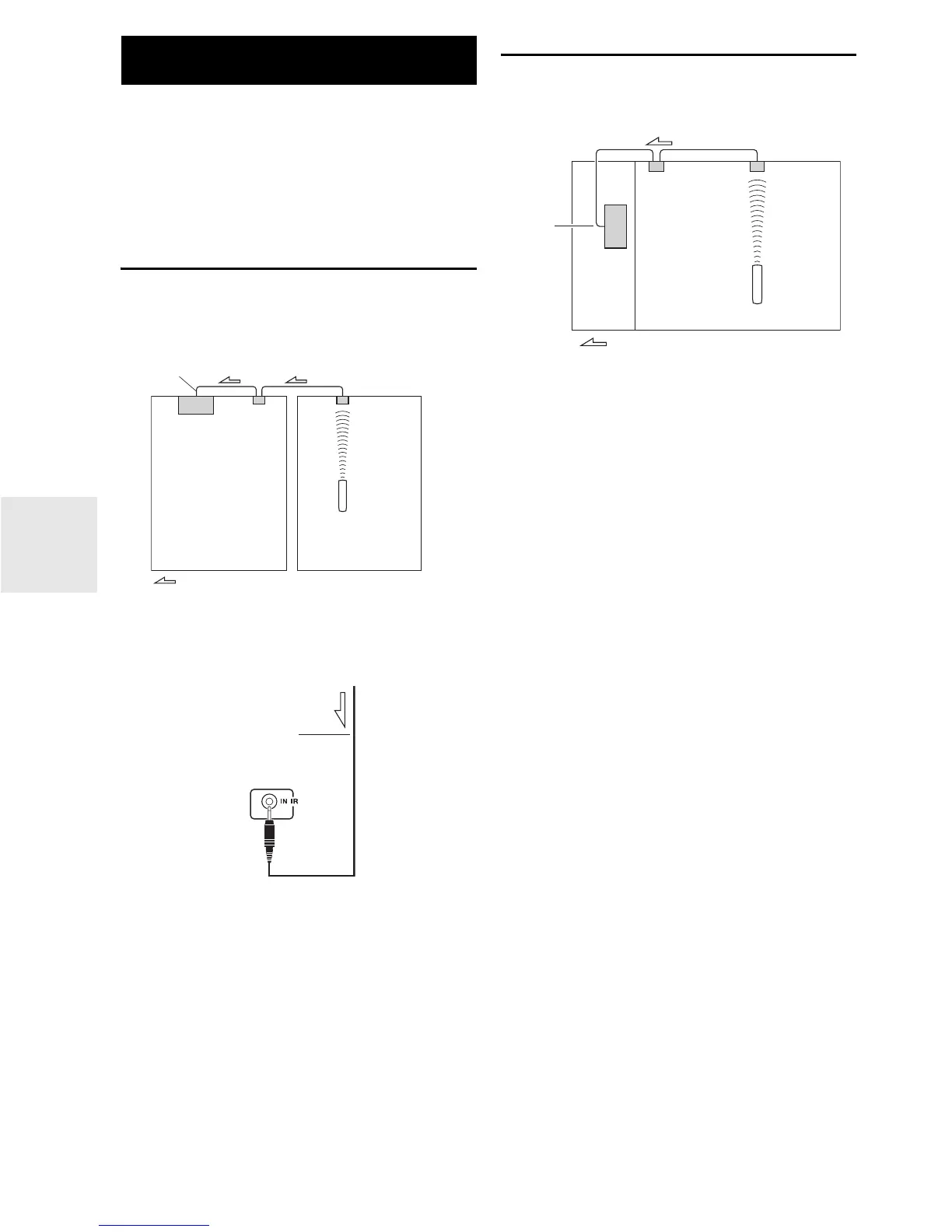

Using a Multiroom Kit with Zone 2
In this setup, the IR receiver in Zone 2 picks up the infra-
red signals from the remote controller and feeds them
through to the AV receiver in the main room via the con-
necting block.
The miniplug cable from the connecting block should be
connected to the AV receiver’s IR IN jack, as shown
below.
Using a Multiroom Kit with a Cabinet
In this setup, the IR receiver picks up the infrared signals
from the remote controller and feeds them to the AV
receiver located in the cabinet via the connecting block.
Using the Remote Controller in
Zone 2 and Multiroom Control Kits
IR IN
Connect-
ing block
Remote controller
IR
receiver
Main room Zone 2
Signal flow
From the connecting block
Miniplug cable
AV receiver
IR IN
Connecting
block
Remote controller
IR
receiver
Inside
cabinet
Signal flow
