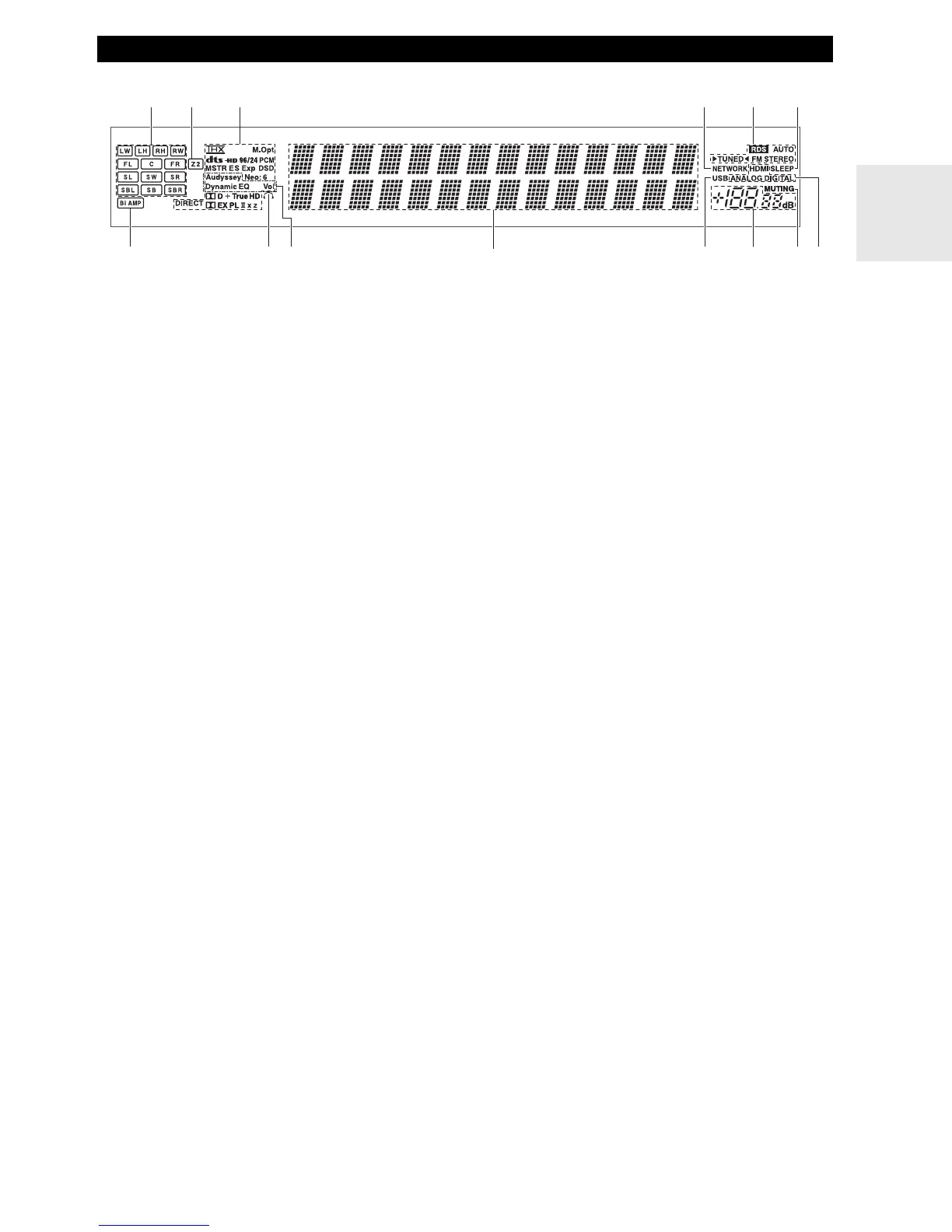

For detailed information, see the pages in parentheses.
a Speaker/channel indicators
b Z2 (Powered Zone 2) indicator ( 70)
c Listening mode and format indicators ( 36, 58)
d NETWORK indicator ( 61)
e Tuning indicators
RDS indicator (excluding North American and
Taiwan models) ( 33)
AUTO indicator ( 32)
TUNED indicator ( 32)
FM STEREO indicator ( 32)
f SLEEP indicator ( 26)
g Bi AMP indicator ( 16)
h Headphone indicator ( 27)
i Audyssey indicator ( 29, 49)
Dynamic EQ indicator ( 49)
Dynamic Vol indicator ( 50)
j Message area
k USB indicator ( 67)
l Volume level ( 25)
m MUTING indicator ( 26)
n Audio input indicators
Display
bc ea f
ghi
j
klm
n
