14
Operation
7 Operation

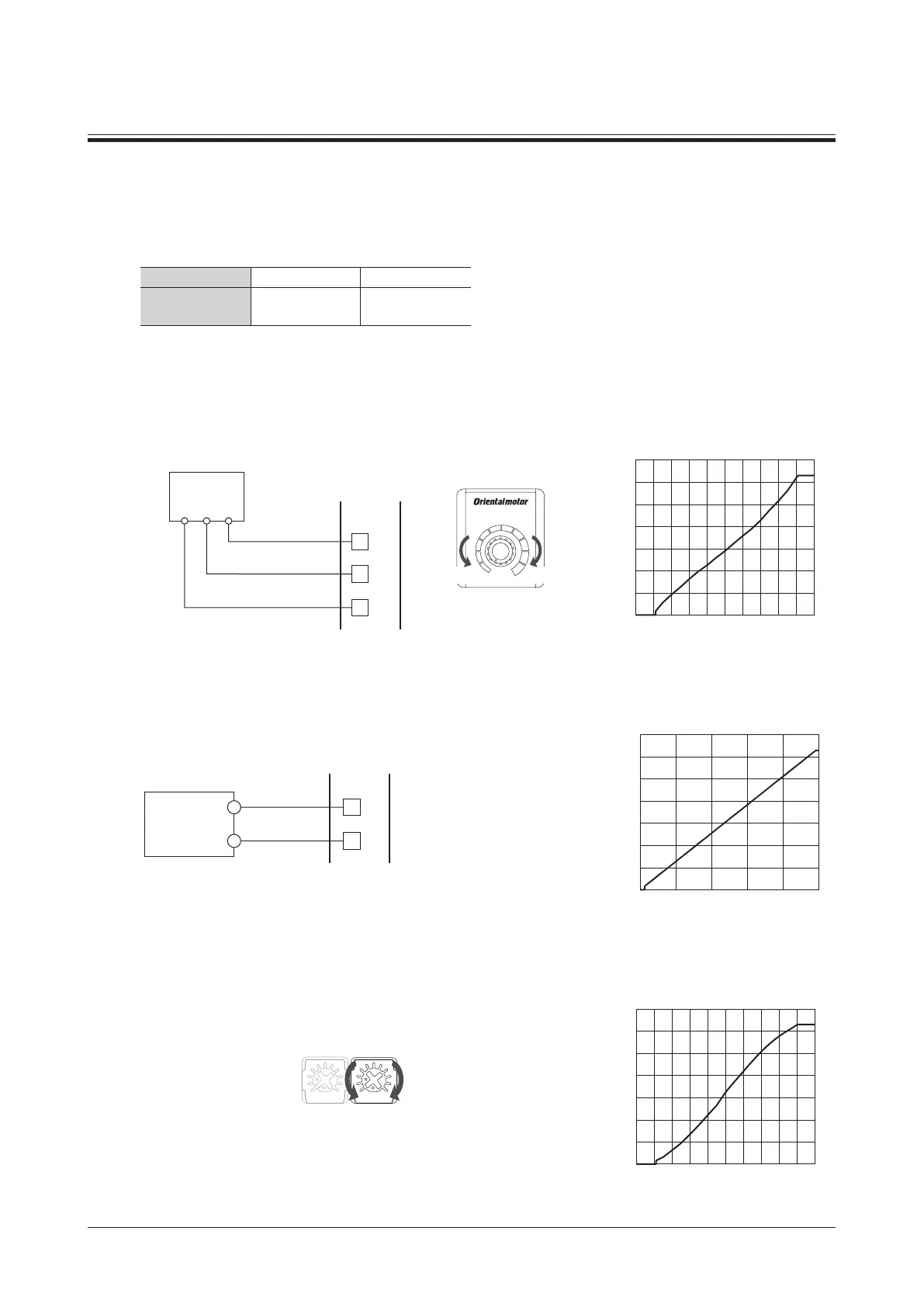

7.1 Setting the rotation speed
The rotation speed can be set using the external analog setting device (external potentiometer or external DC voltage)
or VR1.
Whether to use the external analog setting device or VR1 can be selected by switching the ON/OFF status of the M0 input.
The setting range is 100 to 3000 r/min.
M0 input OFF ON
Speed setting
External analog
setting device
VR1

External potentiometer
An external potentiometer is used when the speed is set from a place away from the driver.
Use the
PAVR2-20K
(sold separately) for an external potentiometer.
External potentiometer
PAVR2-20K
(sold separately)
21
3
VH
VM
VL
I/O signal connecto
r
(CN2)
0 to 20 kΩ
Blue
Green
Yellow
6
5
4
PAVR2-20K
LOW
HIGH
Motor output shaft speed [r/min]
PAVR2-20K [scale]
External potentiometer -
Rotation speed characteristics
(representative values)
LOW
HIGH
500
1000
1500
2000
2500
3000

External DC voltage
Use when the speed is set by DC voltage from an external control device.
For the external DC voltage, use a DC power supply (0 to 5 VDC, 1 mA or
more) with reinforced insulation on its primary and secondary sides.
External DC voltage -
Rotation speed characteristics
(representative values)
Motor output shaft speed [r/min]
012345
Setting voltage [VDC]
500
1000
1500
2000
2500
3000
External DC
power supply
0 to 5 VDC
1 mA or more
VM
VL
I/O signal connector
(CN2)
Green
Yellow
5
4
+
–

VR1
The internal potentiometer VR1 is used when the rotation speed is not
changed frequently or an operation by switching two-level speeds is
performed in combination with the external analog setting device.
Adjust the potentiometer using an insulated screwdriver.
Factory setting: 0 r/min
Internal potentiometer -
Rotation speed characteristics
(representative values)
Motor output shaft speed［r/min］
VR1 [scale]
HIGH
LOW
500
1000
1500
2000
2500
3000
VR1
LOW
HIGH
