22

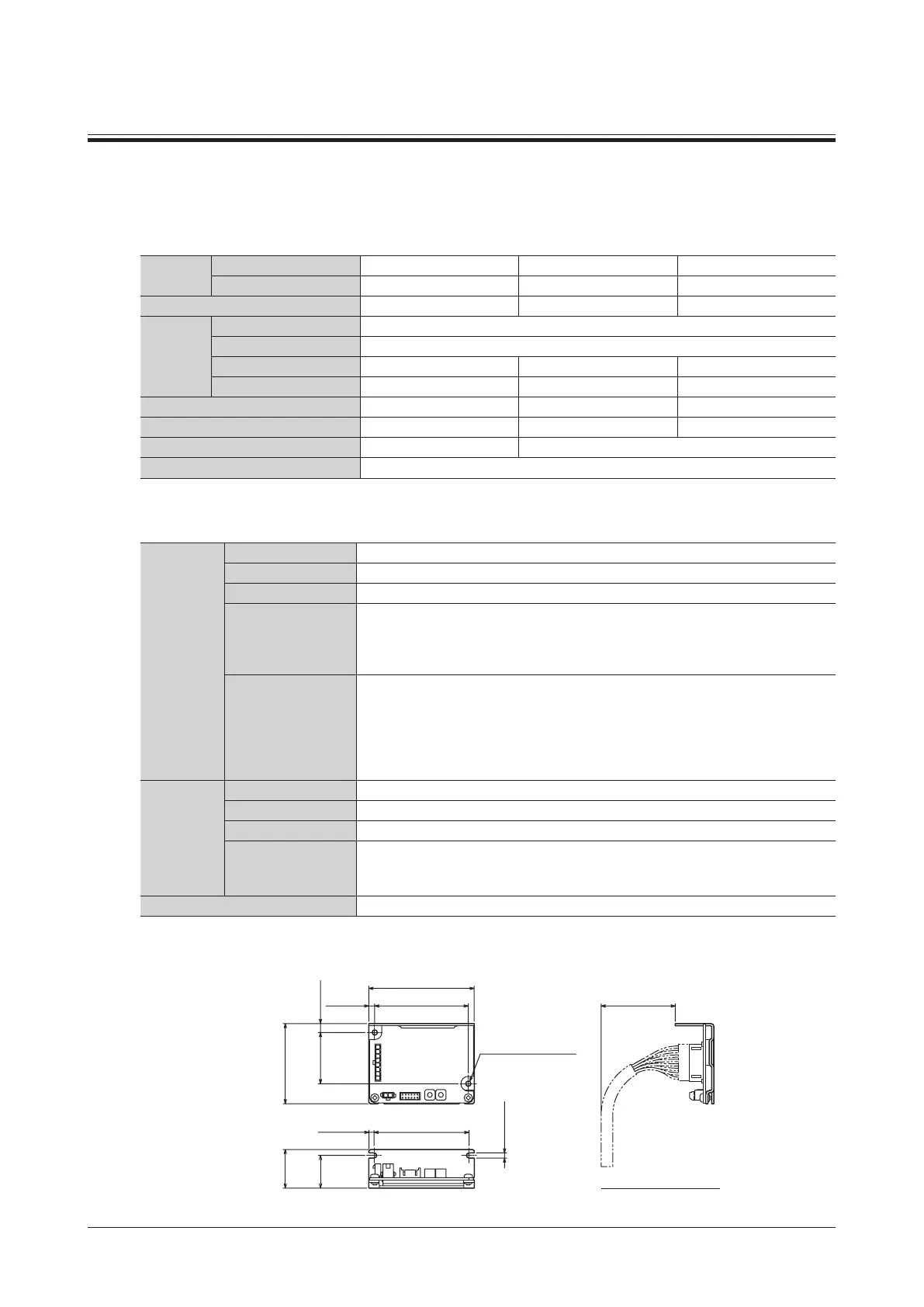

Specications
11 Specications
11.1 Specications
Values in the rated torque, peak torque, rated rotation speed, and speed control range represent those in a state where
the gearhead is not combined. Refer to "4.4 Products possible to combine" (p.5) for the motor model name.
Model
Motor
BLHM015K-
oo
BLHM230K-
oo
BLHM450K-
oo
Driver
BLH2D15-K BLH2D30-K BLH2D50-K
Rated output power (Continuous) 15 W 30 W 50 W
Power
supply
input
Rated voltage 24 VDC
Permissible voltage range
- 10 to +10%
Rated input current 0.93 A 1.9 A 2.9 A
Maximum input current 2.3 A 4.1 A 5.4 A
Rated torque 0.048 N·m (6.8 oz-in) 0.115 N·m (16.3 oz-in) 0.191 N·m (27 oz-in)
Peak torque 0.072 N·m (10.2 oz-in) 0.173 N·m (24 oz-in) 0.287 N·m (40 oz-in)
Rated rotation speed 3000 r/min 2500 r/min
Speed control range 100 to 3000 r/min
Check on the Oriental Motor Website for the product specications.
11.2 General specications
Operating
environment
Ambient temperature Driver: 0 to +50 °C [+32 to +122 °F] (non-freezing)
Ambient humidity 85% or less (non-condensing)
Altitude Up to 1000 m (3300 ft.) above sea level
Surrounding
atmosphere
No corrosive gas, dust, water or oil.
Cannot be used in radioactive materials, magnetic eld, vacuum or other special
environment.
(For details about installation locations, refer to p.7.)
Vibration
Not subject to continuous vibrations or excessive impact.
In conformance with JIS C 60068-2-6 "Sine-wave vibration test method"
Frequency range: 10 to 55 Hz
Pulsating amplitude: 0.15 mm (0.006 in.)
Sweep direction: 3 directions (X, Y, Z)
Number of sweeps: 20 times
Storage
environment
Shipping
environment
Ambient temperature Driver: −25 to +70 °C [−13 to +158 °F] (non-freezing)
Ambient humidity 85% or less (non-condensing)
Altitude Up to 3000 m (10000 ft.) above sea level
Surrounding
atmosphere
No corrosive gas, dust, water or oil.
Cannot be used in radioactive materials, magnetic eld, vacuum or other special
environment.
Degree of protection IP00
11.3 Dimension
Mass: 46 g (1.62 oz.) [Unit: mm (in.)]
34.5±0.2
(1.358±0.008)
6 (0.236)
55 (2.17) max.
4 (0.157)63±0.2 (2.480±0.008)
72 (2.83) max.
3.5 (0.138)
64±0.2 (2.520±0.008)
3.5 (0.138)
27 (1.06) max.
[50 (1.97)]
2×
ϕ
3.5 (
ϕ
0.138) Thru
Installation of motor cabl
e
22±0.2
0.866
±0.008
( )
