Preparation

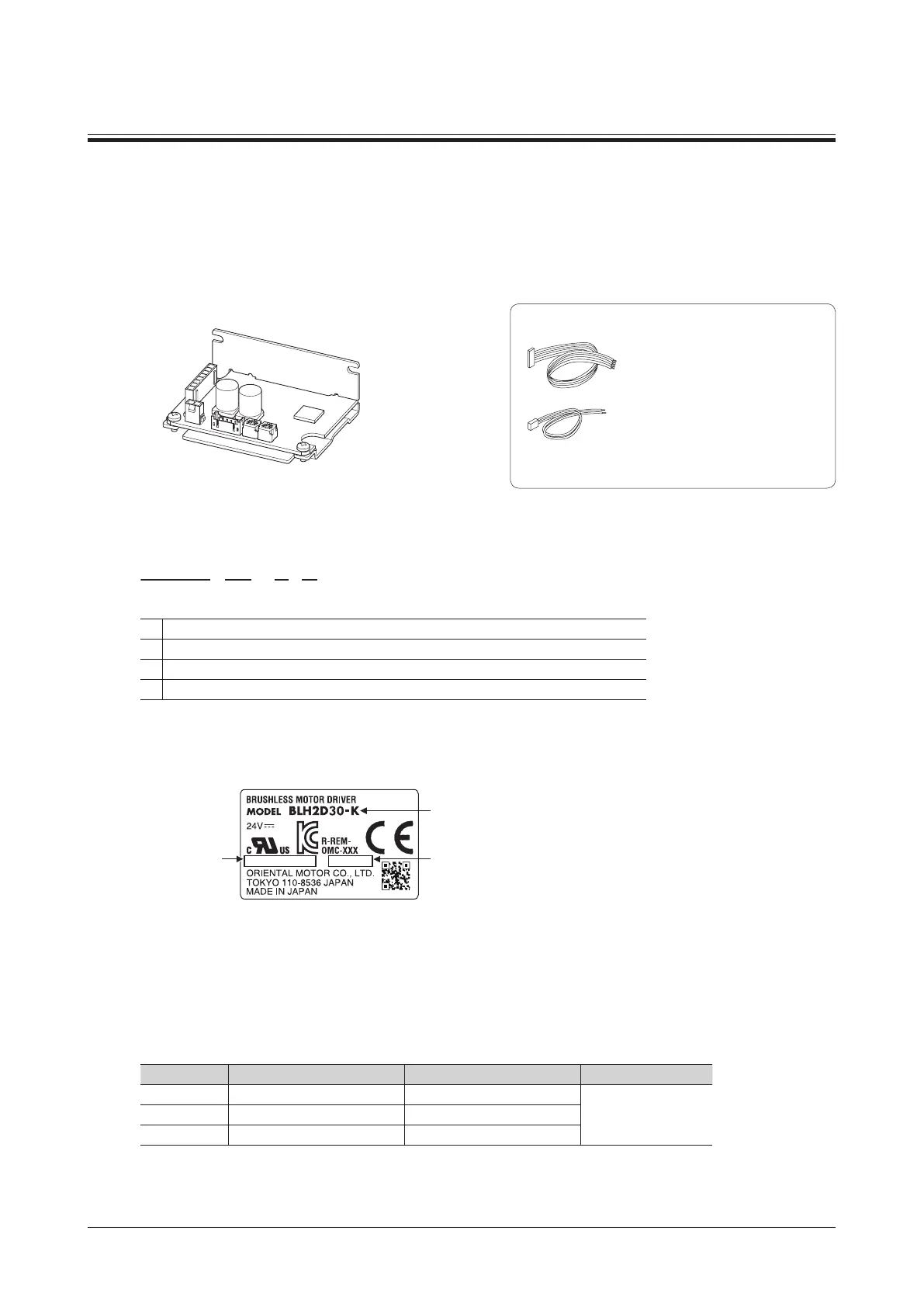

4 Preparation
This chapter explains the items you should check, as well as the name and function of each part.
4.1 Checking the product
Verify that the items listed below are included.
Report any missing or damaged items to the branch or sales oce from which you purchased the product.
Refer to "4.4 Products possible to combine" for combinations of the driver and motor.
□
Driver............................................... 1 unit
•
Cable set (
LHS003CC
)
I/O signal cable (
LH003C3
) ............ 1 pc [300 mm (11.8 in.)]
Power supply cable (
LH003C1
) .... 1 pc [300 mm (11.8 in.)]
The cable set does not come with the driver.
It is needed to purchase separately.
□
OPERATING MANUAL................. 1 copy
4.2 How to identify the product model
BLH2D 30 - K
①②③ ④
①
Driver type
BLH2D
:
BLH
Series driver
②
Output power
15
: 15 W
30
: 30 W
50
: 50 W
③
Power supply voltage
K
: 24 VDC
④
Blank: Analog setting type
D
: Digital setting type
4.3 Information about nameplate
The following nameplate is an example for the 30 W type driver.
Serial number
Manufacturing date
VZ5 1234567
2018/12
Driver model
4.4 Products possible to combine
Products with which the drivers can be combined are listed below.
Verify the motor model and the driver model against the model name described on the nameplate of the product.
The box (
o
) in the motor model name indicates a code or a number representing the gear ratio, the shaft type, or the
gearhead type.
For details about the motor, refer to the operating manual included with the motor.
Output power Motor model Driver model Cable set model
15 W
BLHM015K-
oo
BLH2D15-K
LHS003CC
30 W
BLHM230K-
oo
BLH2D30-K
50 W
BLHM450K-
oo
BLH2D50-K
