Connection
−12−
Cable type
CN1
Grounding
Grounding
CN2
CN3
Motor cable
[ 0.5 m (1.6 ft.) ]
otective Earth Terminal
Protective Earth Terminal
Be sure to ground.

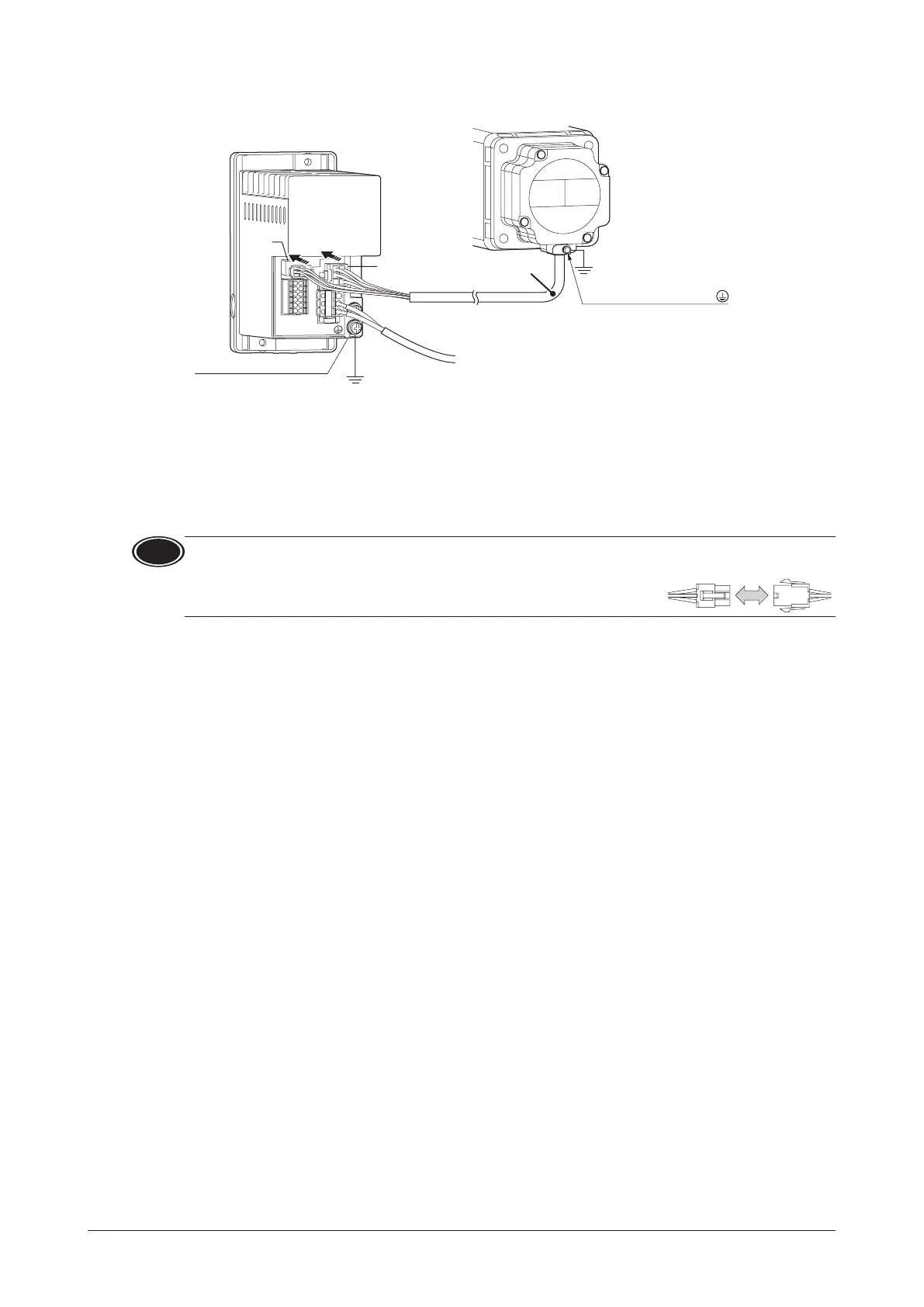

Connect the motor connector (white) of the motor cable to the CN2, and the sensor connector (black) to the CN3 on the
driver.
Use a connection cable (accessory) for relay when extending the wiring distance between the motor and driver.
The connection cable for relay can be used by connecting up to 2 pieces. The wiring distance between the motor and the
driver can be extended up to 10.5 m [34.4 ft.] (including the motor cable).
Refer to p.40 for the connection cable for relay.
Note
•
Secure each connectors part not to apply stress on the connectors part. If not secured, the cables may
damage by the stress.
•
Securely insert the connector straight. Insecure connections may cause
malfunction or damage to the motor or driver.
