Parker DB Series User Manual

43
DB Series Nitrogen Generator DB5-20 Model

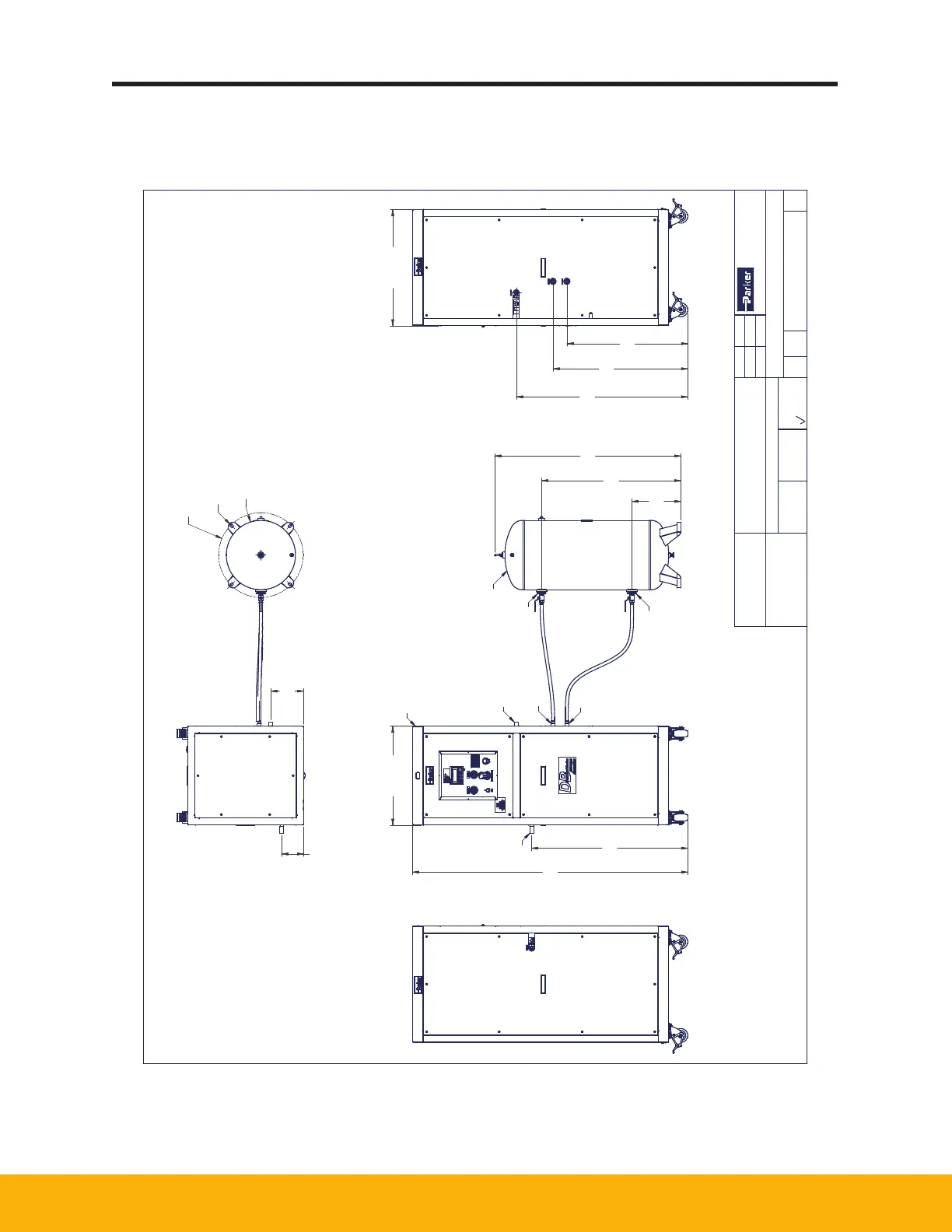

10. General Arrangement Drawings
PROPERTY OF PARKER-HANNIFIN CORPORATION
THIS DOCUMENT CONTAINS INFORMATION THAT IS CONFIDENTIAL AND PROPRIETARY TO PARKER HANNIFIN, AND IS FURNISHED ON THE UN DERSTANDING THAT THE DOCUMENT AND THE INFORMATION IT CONTAINS WILL NOT BE COPIED OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN CONDUCTING BUS INESS WITH PARKER, AND
COPYRIGHT IS THE FIRST YEAR INDICATED ON THIS DOCUMENT. ALL RIGHTS RESERVED.
WILL BE RETURNED AND ALL FURTHER U SE DISCONTINUED UPON REQUEST BY PARKER.
DRAWN BY DATE SCALE UNITS
TITLE SIZE
SHEET
DRAWING NUMBER
REVISION
PART NUMBER
MATERIAL
PARKER HANNIFIN LANCASTER, NY 14086 USA
INCHES
OF
C
JK
1:12
DUAL BED NITROGEN GENERATOR
DB-AB
-
2 1
DB-AB
1/28/2022
ALL TOLERA NCES: ± 1/64
ANGLES: ± 2º
FRACTIONS: ± 1/4
ANGLES: ± 3º
SHEET METAL PARTS
WELDED PARTS AND
SALES DRAWINGS
USE CORRESPONDING TOLERANCES UNLESS OTHERWISE SPECIFIED
ANGLES ± 1/2
~
2 PLACE (.00): ±.01
MACHINED PARTS
3 PLACE (.000): ±.005
R
a
SURFACE FINISH
125
JOB NUMBER: __________________________________________________________ REVIEWED BY: __________________________ DATE: _________________________
79 9/16 in
2020.748 mm
45 1/8 in
1145.946 mm
28 5/8 in
726.491 mm
33 5/8 in
853.435 mm
49 9/16 in
1259.027 mm
53 7/8 in
1368.498 mm
40 1/4 in
1023.032 mm
14 1/8 in
359.457 mm
6 5/16 in
160.579 mm
9 7/16 in
240.005 mm
n
20 in
n
508.000 mm
n
24 7/16 in
n
620.776 mm
Ø5/8 in
Ø17.272 mm
AIR IN
NITROGEN GENERATOR
N2 OUT
FROM NST
TO NST
NST OUT
NITROGEN
SURGE TANK
NST IN
34 15/16 in
887.298 mm
38 15/16 in
989.084 mm
DB-AB
