5.3 Peplink Balance 380 / 390

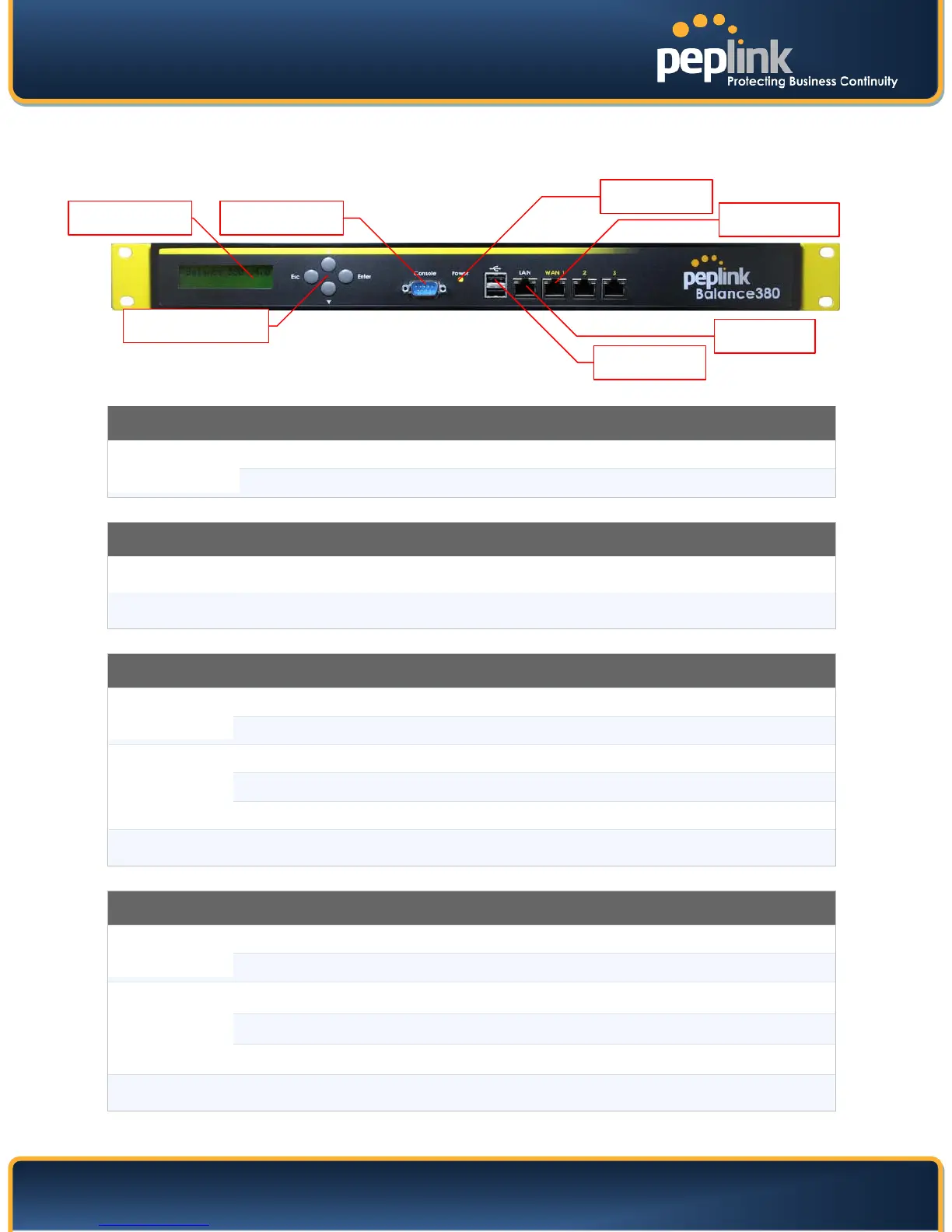

5.3.1 Front Panel Appearance
5.3.2 LED Indicators
The statuses indicated by the Front Panel LEDs are as follows:
Power and Status Indicators
Power LED
OFF – Power off
Green – Power on
Console and USB Ports
Console Port
Reserved for engineering Use
USB Ports
For connecting a USB based mobile modem.
LAN and WAN Ports (Balance 380)
Green LED
ON – 100 Mbps
OFF – 10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Port Type
MDI ports
LAN Port and WAN Ports (Gigabit ports on Balance 390)
Green LED
ON – 1000 Mbps
OFF – 100/10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Port Type
Auto MDI/MDI-X ports
LCD Display
Console
LCD Controls
LAN Port
Power LED
WAN Ports
USB Ports
