5.5 Peplink Balance 710

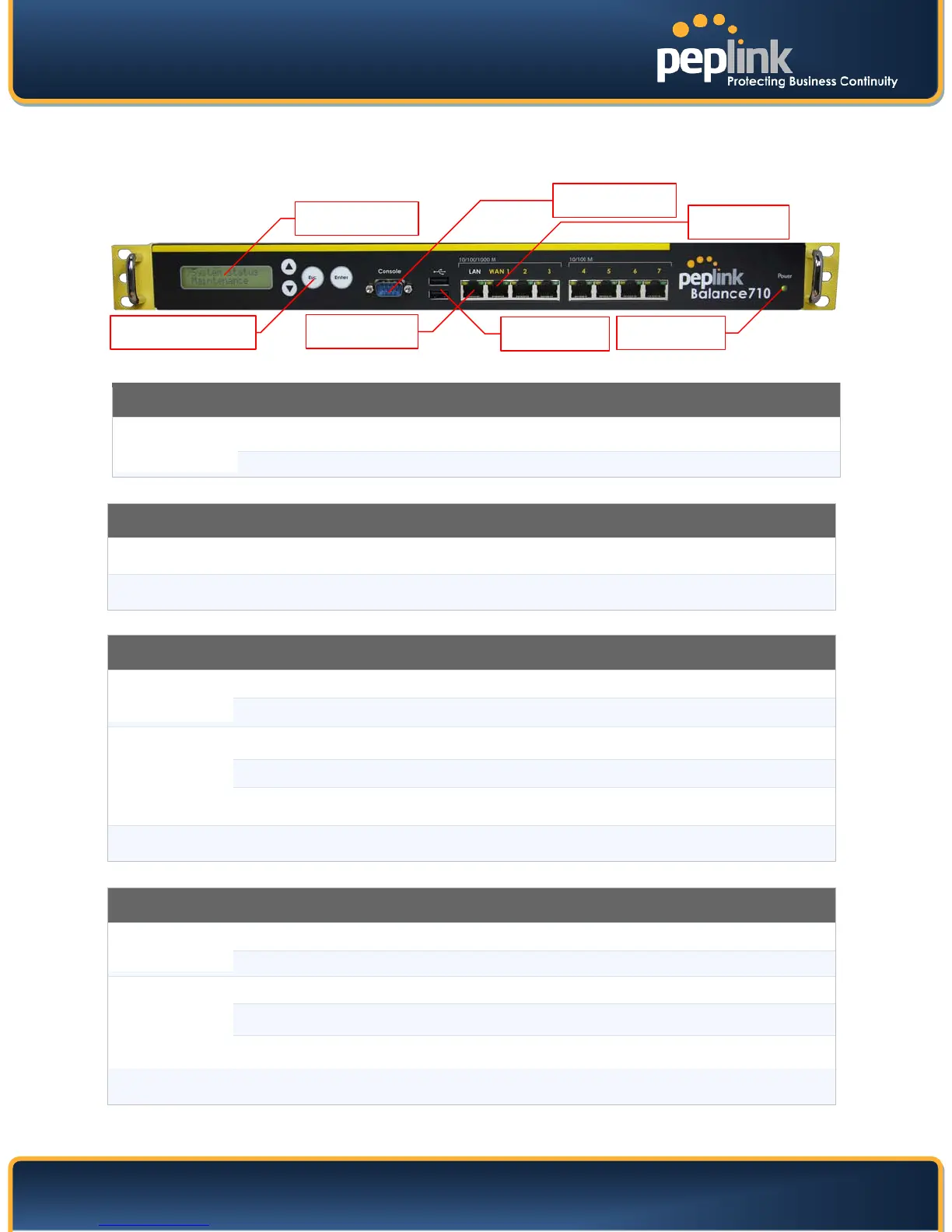

5.5.1 Front Panel Appearance
Status indicated in the Front Panel is as follows:
Console Port
Console Port
Reserved for engineering Use
USB Ports
For connecting a USB based mobile modem.
LAN Port and WAN Ports 1 to 3 (Gigabit Ethernet)
Green LED
ON – 1000 Mbps
OFF – 100/10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Port Type
Auto MDI/MDI-X ports
WAN Ports 4 to 7 (Fast Ethernet)
Green LED
ON – 100 Mbps
OFF – 10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Port Type
MDI ports
LED Indicator
Power LED
OFF – Power off
ON (Green) – Power on
LCD Display
Console Port
LCD Controls
WAN Port
LAN Ports
Power LED
USB Ports
