In the event of a breakdown
Spare wheel
Procedure for changing a wheel with a
punctured tyre for the spare wheel using the
tools provided with the vehicle.
Access to the spare wheel
Only a "space-saver" type spare wheel
may be fixed beneath the vehicle.

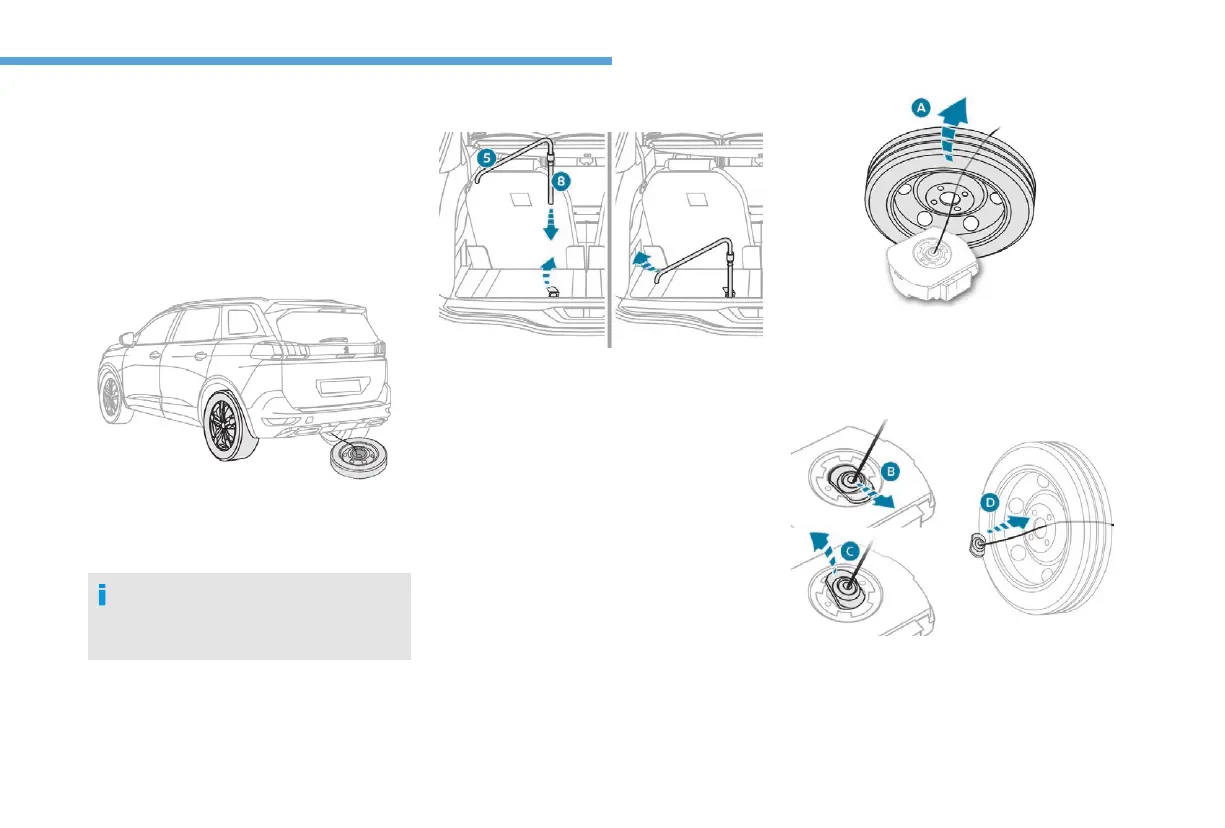

Removal of the spare wheel
The spare wheel is held by a winch system
underneath the back of the vehicle.
F Fold back the concertina board and install
the third row seat, on the left-hand side (if
your vehicle is equipped with it).
F Lift the pre-cut section of carpet to remove
the fixing winch bolt from the spare wheel.
F With extension piece 8 at the edge of
wheelbrace 5, "tighten" the nut to unreel the
winch cable until the spare wheel is flat on
the ground. Unreel as much as necessary in
order to access the wheel easily.
F Remove the wheel/gearbox unit through
the back of the vehicle.
F Straighten the spare wheel to access the
tool box (A).
F Detach the connecting piece from the cover
of the tool box (B – C).
F Pass the connecting piece through the
wheel hub to release it (D).
