3
89
Ease of use and comfort
Folding the concertina
boards
When the 3rd row seats are straightened, these
folded concertina floors can be left:
- either flat behind the seats,
- or in the vertical position,
thus clearing the inside of the seat as a storage
space.

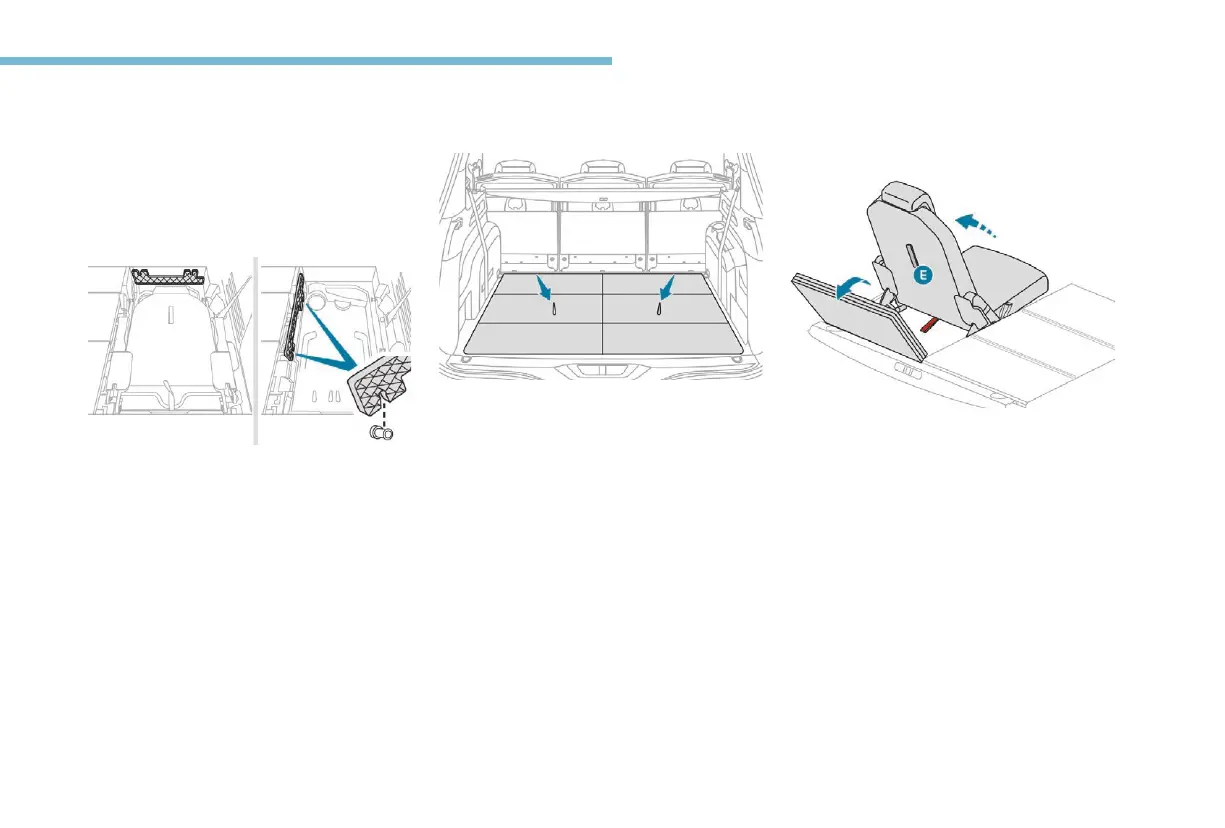

Installing the seats
This is done from the boot sill.
When there is a seat at the back of the boot,
the removable carrier is fixed against the wall in
front of its holder.
If you remove the seat from the back of the
boot for extra storage space, you must place
the removable carrier on the two lugs on the
central wall.
F Pull one of the straps; the 3 parts of the
corresponding floor fold into concertina
form.
F Remove the load space cover.
F Straighten the continuity panels of the
2nd row seats.
F Fold back the concertina board and
straighten it vertically.
F Pull the black strap E, located behind the
backrest.
The backrest tilts backwards bringing the
seat cushion with it; the seat locks in the open
position. The load space cover can be stored
behind the backrests of the seats in the 3rd
row.
For more information on the Interior fittings
and particularly on the load space cover, refer
to the corresponding section.
