Pfaff 3371-1 series Adjustment Manual

Adjustment
14 - 10
14.11 Needle rise and needle guard
Requirement
When the bottom marking of the ascending needle bar is level with the lower edge of the
needle bar bush
1. the hook point should be centred to the needle and
2. the needle guard (see arrow) should slightly touch the needle.
● Turn catch 1 (screw 2) in accordance with requirement 1, or move it in accordance with
requirement 2.

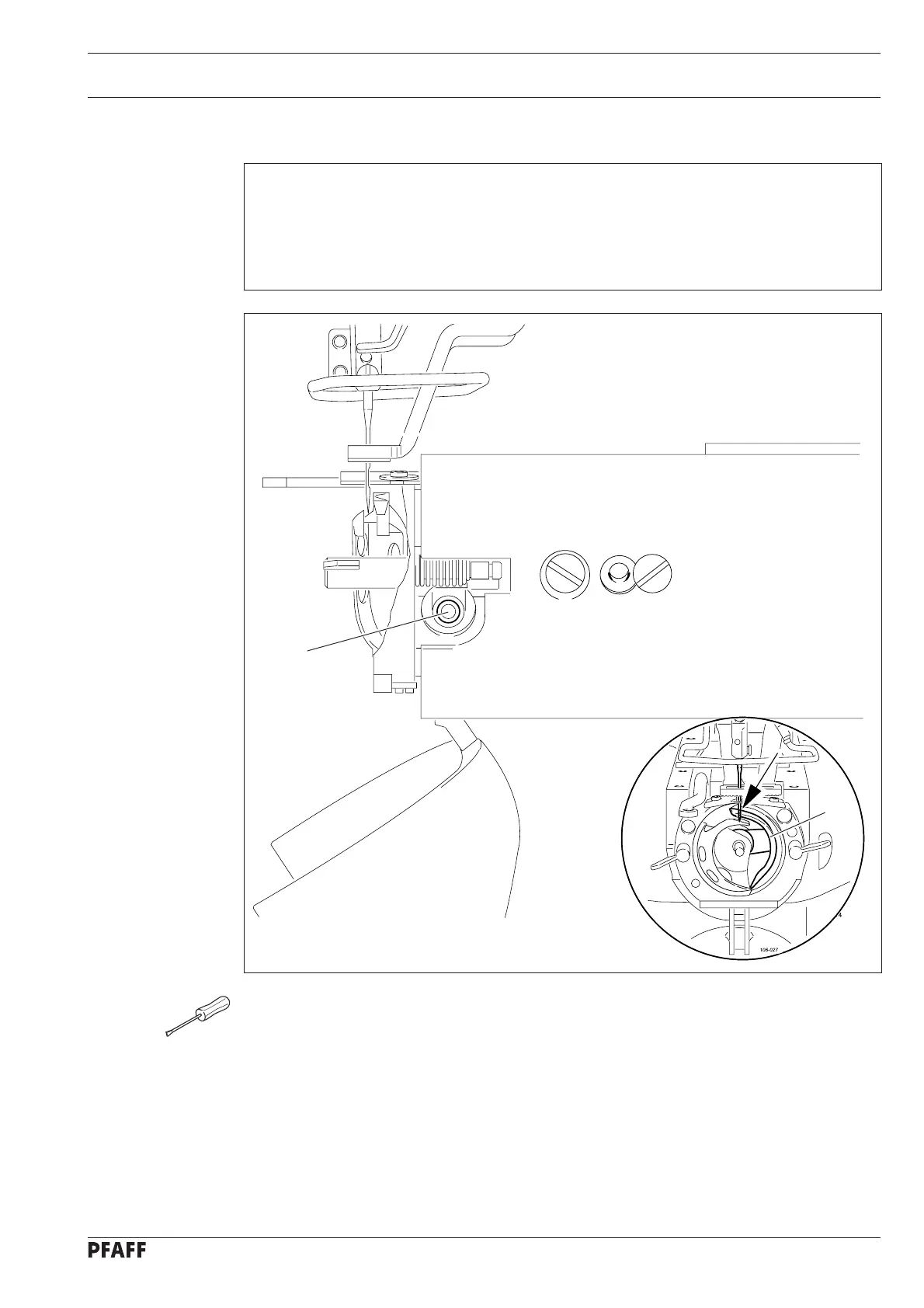

Fig. 14 - 07
2
1
