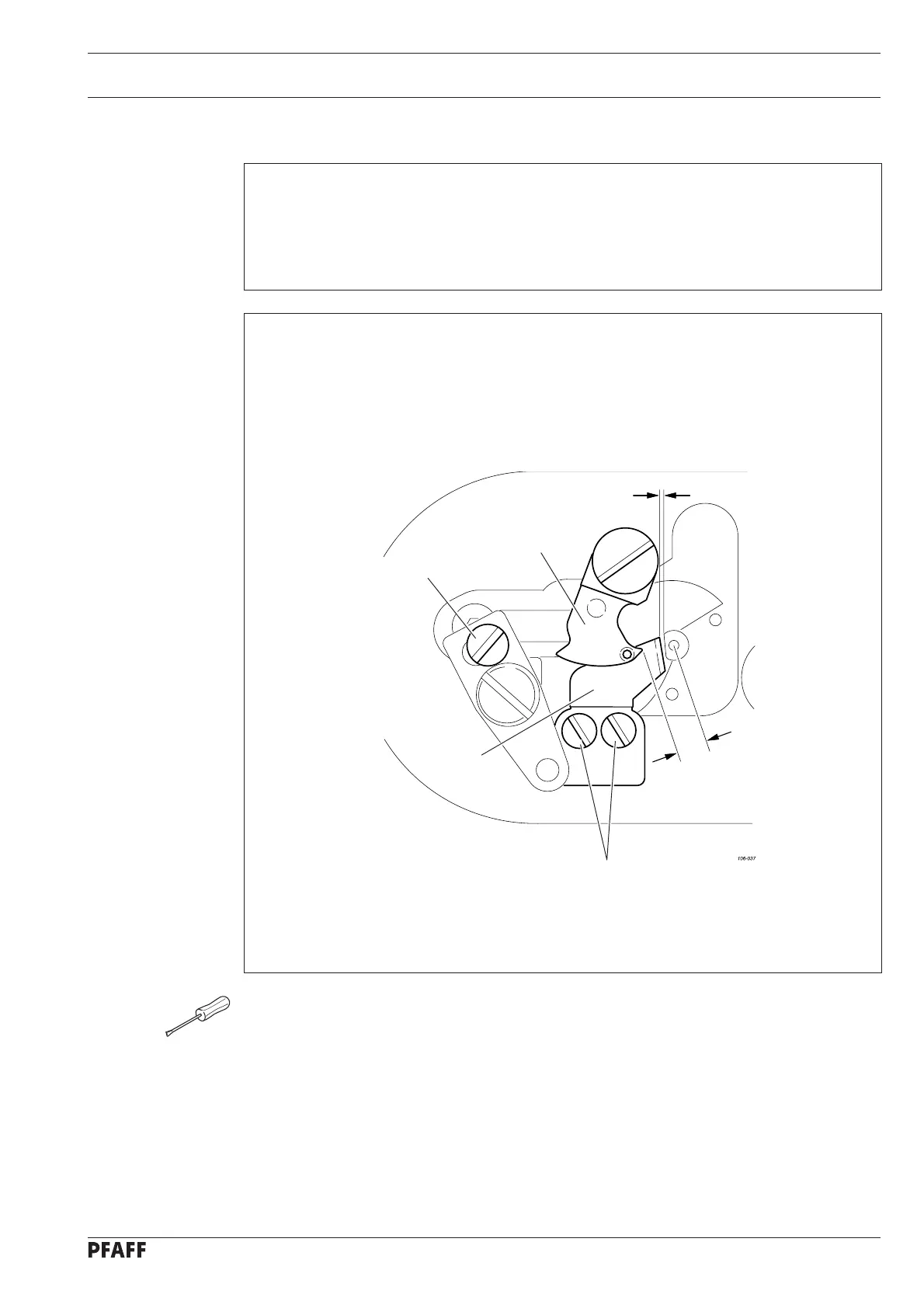

14.21 Position of the thread catcher and knife
Requirement
When the machine is in its basic position
1. the tip of the thread catcher 1 should be at a distance of 4.5 mm from the centre of the
needle hole.
2. The blade of knife 3 should be at distance of 0.5 mm from the needle plate insert.
● Adjust thread catcher 1 (screw 2) in accordance with requirement 1.
● Adjust knife 3 (screws 4) in accordance with requirement 2.
Fig. 14 - 17
4
2
3
1
4,5 mm
0,5 mm
