Adjustment
14 - 18

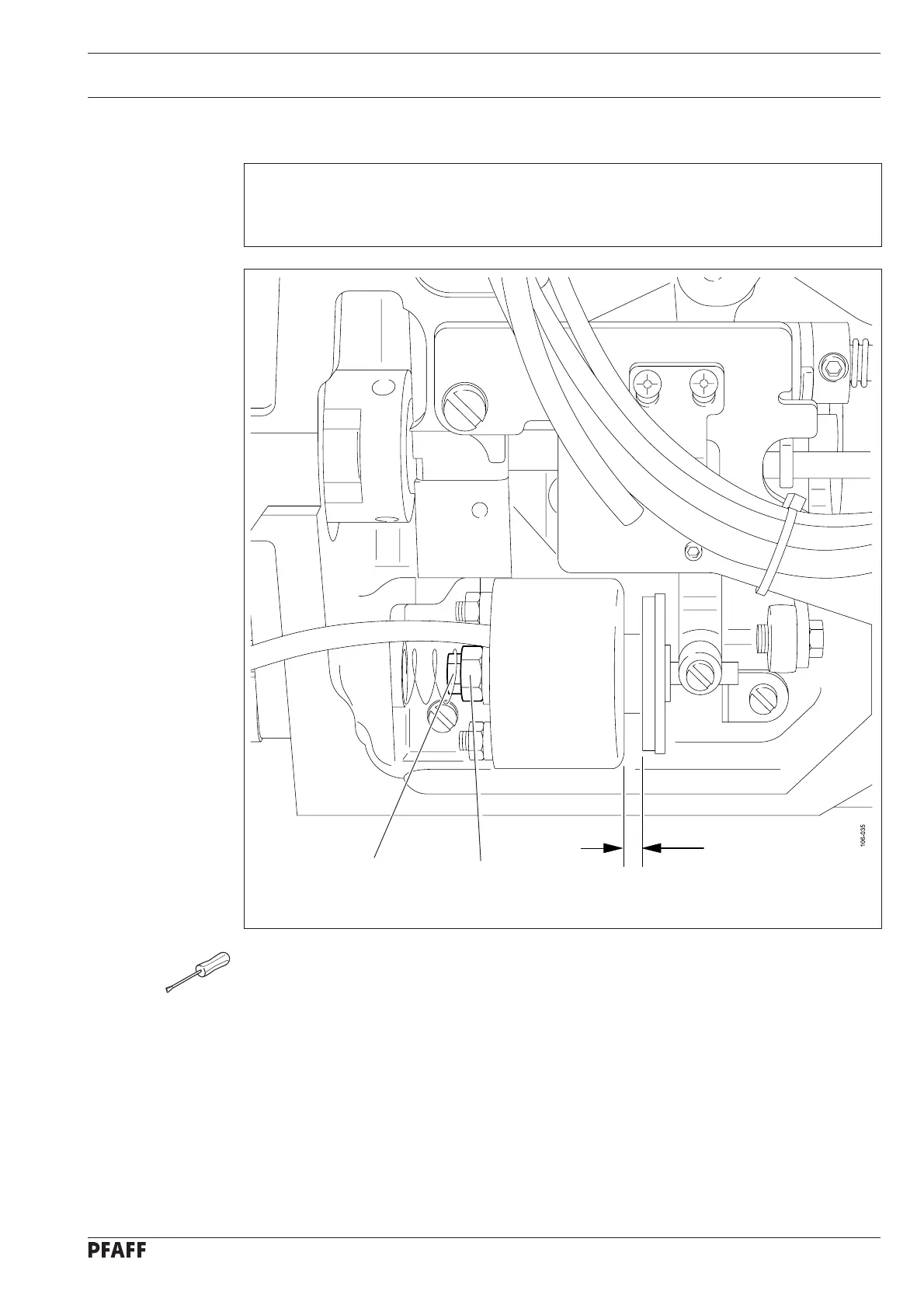

14.19 Adjusting the trimmer solenoid
Requirement
When the thread trimmer is in its neutral position, solenoid 1
should be at a distance
of 5 mm from the case.
ā— Turn nut 1 (nut 2) in accordance with the requirement.
Fig. 14 - 15
5 mm
2
1
