Pfaff 3371-1 series - Aligning the Stop Plate

Adjustment
14 - 17
14.18 Aligning the stop plate
Requirement
When the thread trimmer is in its basic position, there should be a clearance of 0.3 mm
between lever 3 and plate 1.
● Move plate 1 (screws 2) in accordance with the requirement.

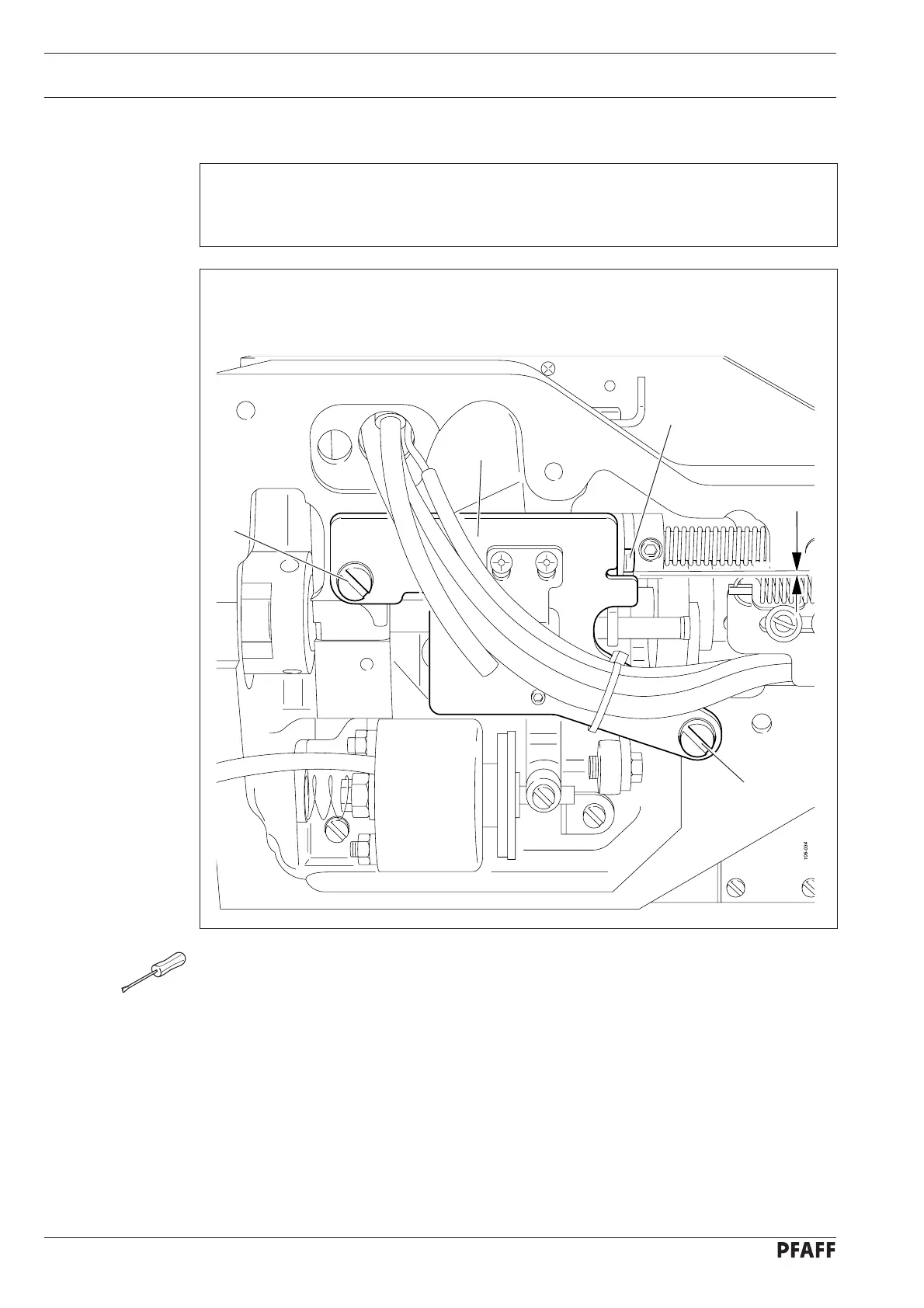

Fig. 14 - 14
0,3 mm
2
2
1
3
