Adjustment
14 - 19
14.20 Adjusting the engaging lever
Requirement
When the thread trimmer is in its neutral position, pin 3 should be at a distance of 0.5 mm
from release trip 4.
ā— Move lever 1 (screws 2) in accordance with the requirement.

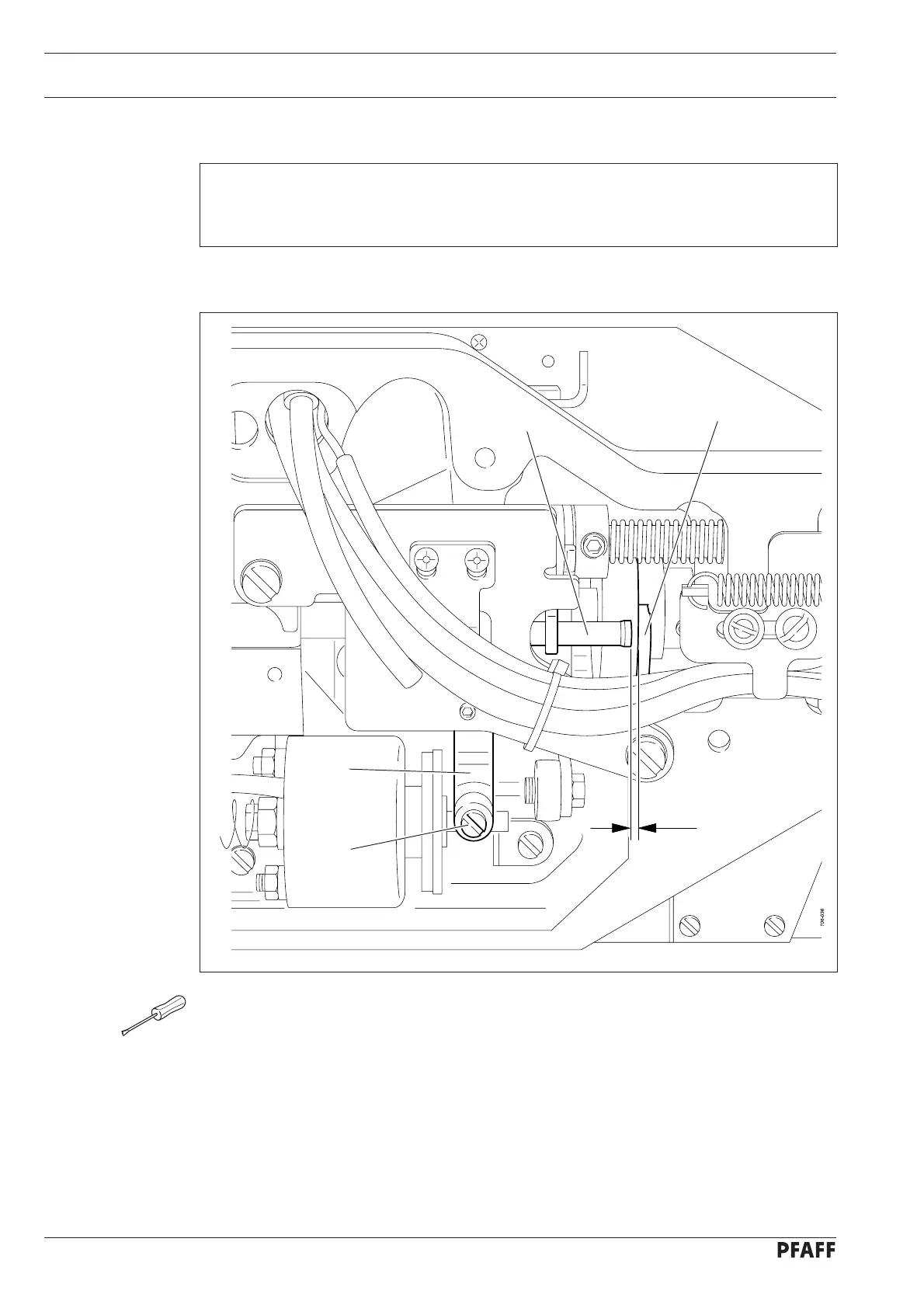

Fig. 14 - 16
1
2
3
4
0,5 mm
