Adjustment
14 - 16
14.17 Position of the drive shaft of the thread trimmer
Requirement
When the thread trimmer is in its basic position, shaft 1
should be flush with the metal
edge of the machine case.
ā— Move shaft 1 (screws 2 and 3) in accordance with the requirement.

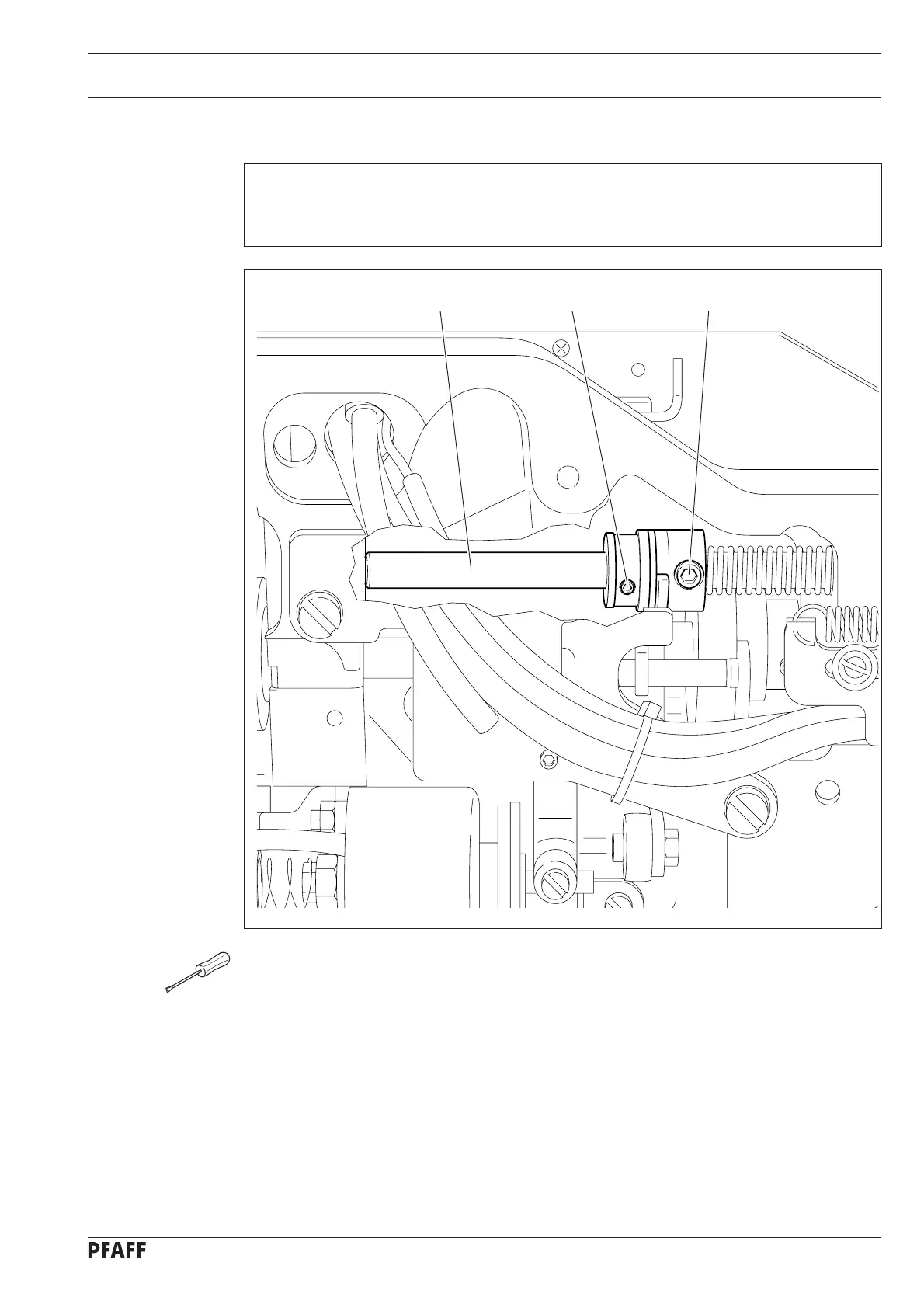

Fig. 14 - 13
12 3
