14.28 Changing the work clamp
XX
XX
X
YY
YY
Y

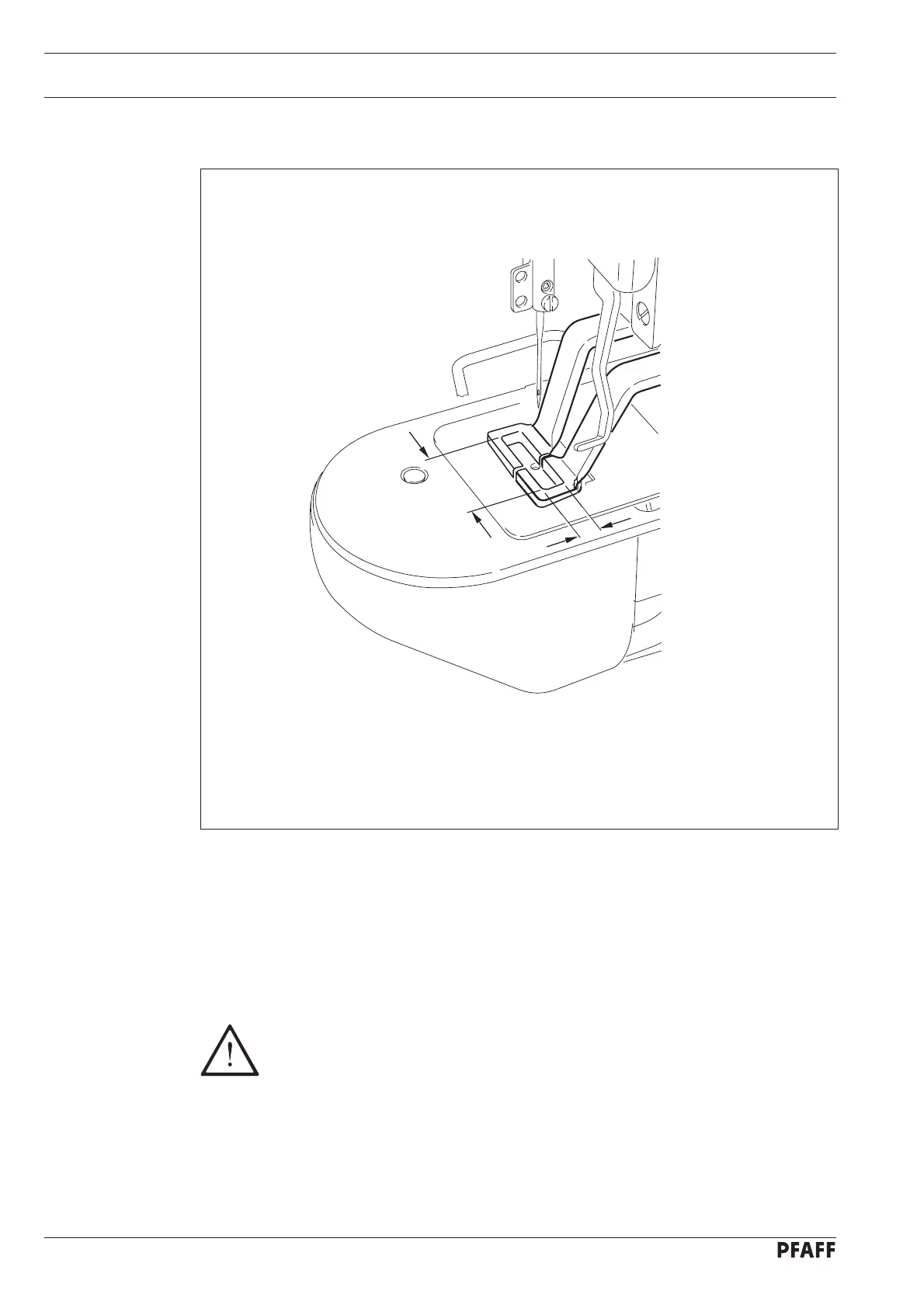

Fig. 14 - 24
● Measure the cutout of the new work clamp in X-
and Y-direction.
● Adjust the sewing area size as described in Chapter 9.07
of the instruction manual.
● Fit the new work clamp and align it in as described in Chapter 14.07.
● Select the seam program to match the work clamp cutout (see Chapter 9.06
of the
instruction manual).
● Check the seam program by tacting
(see Chapter 7.04
of the instruction manual).
If the actual size of the sewing area differs from the size entered, serious
damage can be caused to the machine!
