Philips DVDR615 Service Manual

Diagnostic Software

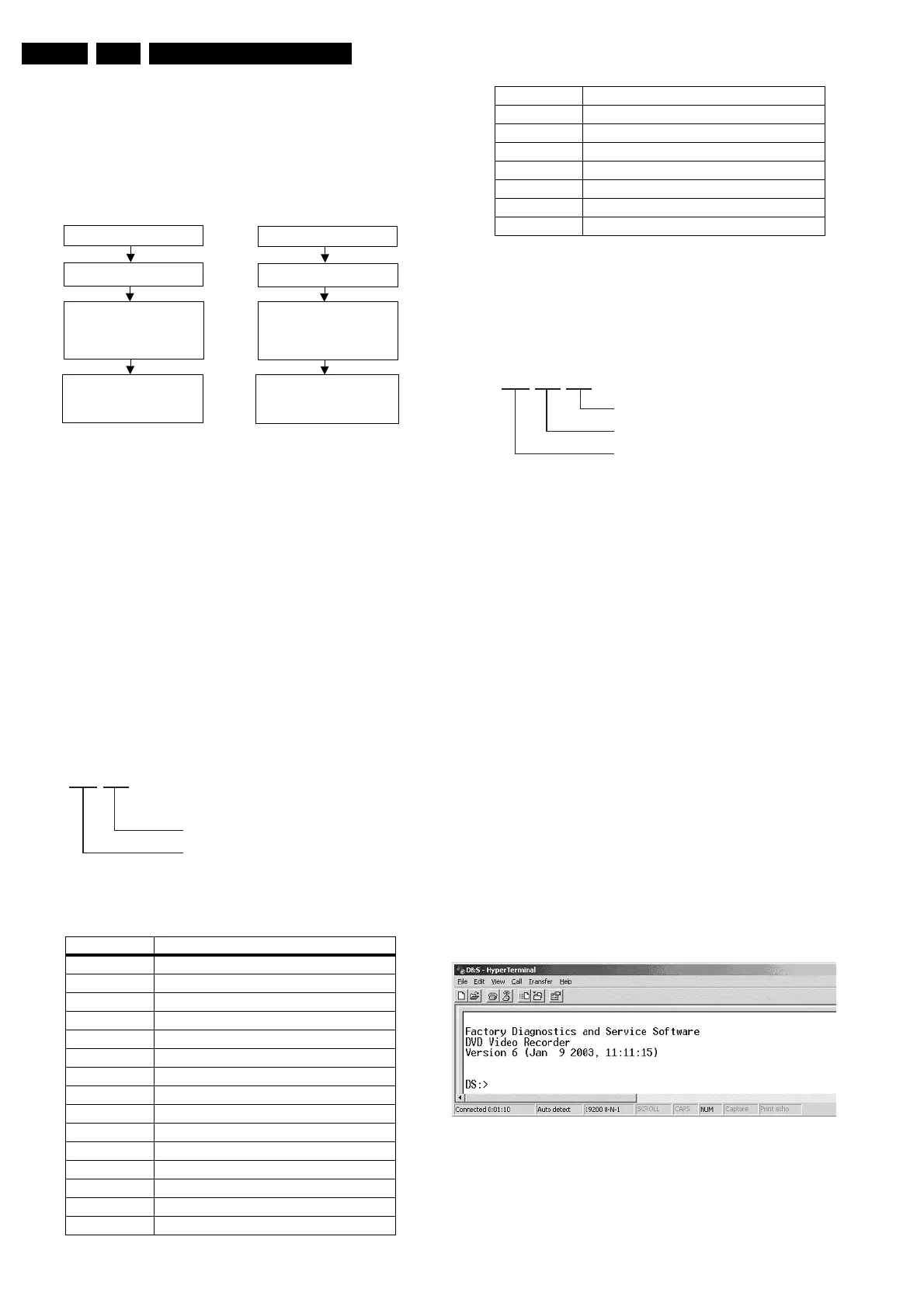

EN 14 DVDR615/695.
5.2 Player Script Interface
5.2.1 Trade Mode
Figure 5-2
5.2.2 Virgin mode
If you want that the recorder starts up in Virgin mode, follow this
procedure:
• Unplug the recorder
• plug the recorder again while you keep the STAND BY/ON
key pressed
• the set starts up in Virgin mode.
5.3 Menu and Command Mode Interface
5.3.1 Nuclei Numeration
Each nucleus has a unique number of four digits. This number
is the input of the command mode.
Figure 5-3
* Not applicable for DVDR610, DVDR615 & DVDR616 Range
5.3.2 Error Handling
Each nucleus returns an error code. This code contains six
numerals, which means:
Figure 5-4
The nucleus group numbers and nucleus numbers are the
same as above.
5.3.3 Command Mode Interface
Set-Up Physical Interface Components
Hardware required:
•Service PC
• one free COM port on the Service PC
• special cable to connect DVD recorder to Service PC
The service PC must have a terminal emulation program (e.g.
Hyperterminal) installed and must have a free COM port (e.g.
COM1). Activate the terminal emulation program and check
that the port settings for the free COM port are: 19200 bps, 8
data bits, no parity, 1 stop bit and no flow control. The free COM
port must be connected via a special cable to the RS232 port
of the DVD recorder. This special cable will also connect the
test pin, which is available on the connector, to ground (i.e.
activate test pin).
Code number of PC interface cable: 3122 785 90017
Activation of Diagnostic Software
1. Pull the mains cord from the recorder and reconnect it
again (reboot).
2. The next welcome message will appear on the PC:
Welcome screen D&S program
Figure 5-5
Now, the prompt 'DS:>' will appear. The diagnostic software is
now ready to receive commands. The commands that can be
given are the numbers of the nuclei. If you see above shown
screen, continue with paragraph 'Nuclei Codes'.
Group number Group name
0Scripts
1 Codec (e.g. Chrysalis, Leco)
2 Boot EEPROM
3 NVRAM
4SDRAM
5Flash
6 Video Input Processor
7DVIO
8* Progressive Scan
9 Basic Engine
10* Display and Control Board
11* Analogue Board
12 System
13* Electronic Program Guide Board
14* PCMCIA
UNPLUG THE RECORDER
IF TRADE MODE OFF
PRESS 2 KEYS
SIMULTANEOUSLY
PLUG THE RECORDER
RECORDER IS IN TRADE MODE
WHEN PRESSING FRONT
KEYS, THE RECORDER
DOESN'T RESPOND
TRADE MODE
When the recorder is in Trade Mode, the recorder cannot be
controlled by means of the front key buttons, but only by means
of the remote control.
<STOP> + <OPEN/CLOSE>
UNPLUG THE RECORDER
IF TRADE MODE ON
PRESS 2 KEYS
SIMULTANEOUSLY
PLUG THE RECORDER
RECORDER IS IN NORMAL MODE
WHEN PRESSING FRONT
KEYS, THE RECORDER
WILL RESPOND
<STOP> + <OPEN/CLOSE>
CL 16532095_071.eps
150801
[ XX YY ]
Nucleus number
Nucleus group numbe
r
CL 06532152_012.ep
s
05120
0
15* HDMI
16 Analogue Slave Processor
17 Analogue Board EEPROM
18 Video Matrix
19 Audio Matrix
20 Front End
21* Hard Disk
22* Digital Terrestrial Tuner Module
[ XX YY ZZ ]
Error code
Nucleus number
Nucleus group numbe
r
CL 06532152_013.ep
s
051200
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Philips DVDR615 Specifications

Picture/Display

Aspect ratio	4:3, 16:9
D/A converter	10 bit, 54 MHz
A/D converter	10 bit, 54 MHz

Sound

D/A converter	24 bit, 96 kHz
A/D converter	24 bit, 96 kHz
Signal to noise ratio	90
Distortion and Noise (1kHz)	83 dB
Crosstalk (1kHz)	105 dB
Dynamic Range (1kHz)	83 dB

Power

Power supply	110V, 60Hz
Power consumption	27 W
Standby power consumption	< 4 W

Dimensions

Set dimensions (W x H x D)	435 x 285 x 65 mm
Set weight	3.5 kg
Packaging dimensions (W x H x D)	518 x 159 x 383 mm
Weight incl. Packaging	5.5 kg
