Philips DVDR615 Service Manual

Circuit-, IC descriptions and list of abbreviations
EN 157DVDR615/69 9.
IC7402, SA56202 FEBE Board, Motor Drivers
Figure 9-29
Philips Semiconductors Preliminary Specification Rev 0.14
OneChip MotorDriver SA56202
PIN CONFIGURATION

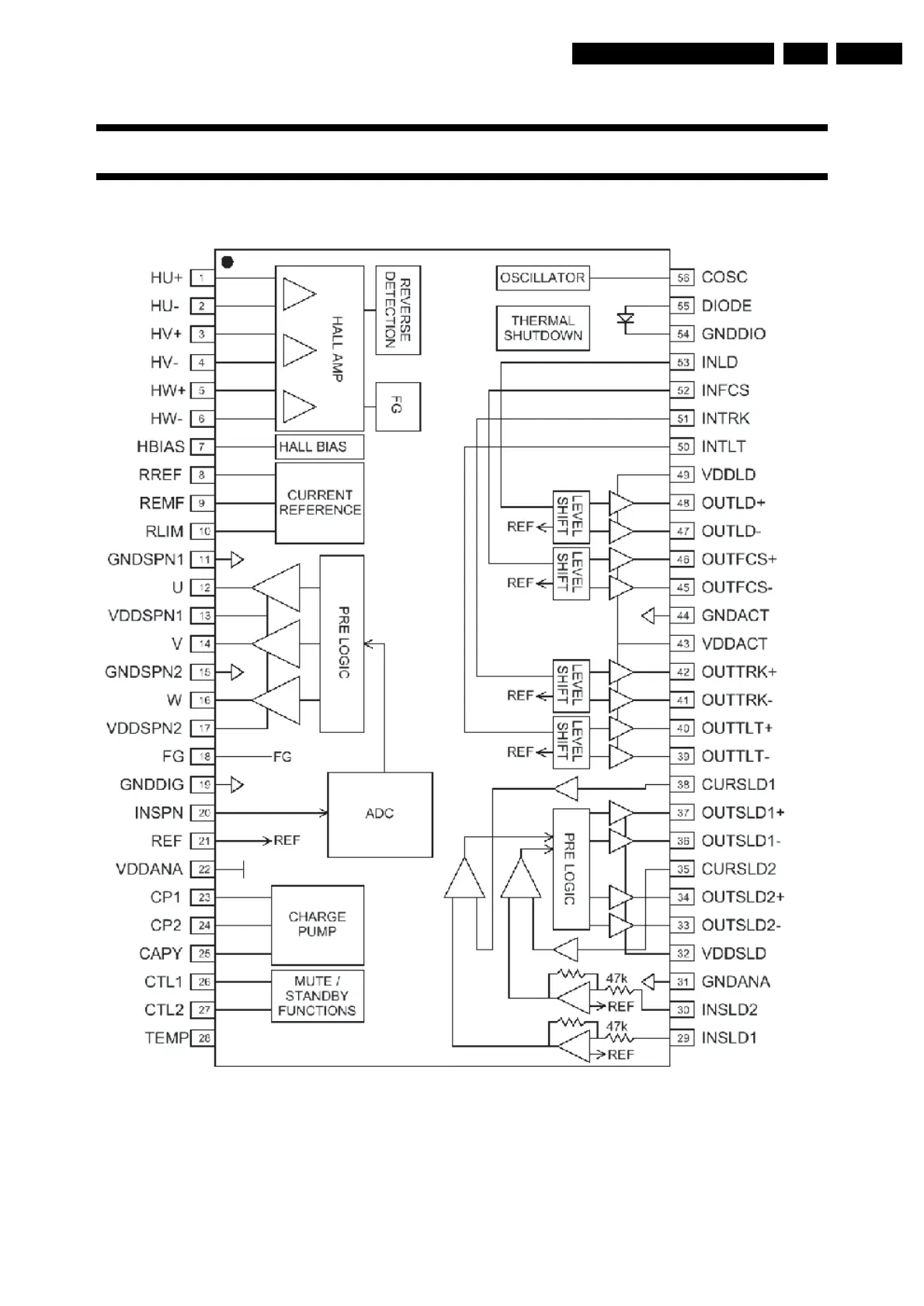

Fig.2 Block diagram SA56202.
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Philips DVDR615 Specifications

Picture/Display

Aspect ratio	4:3, 16:9
D/A converter	10 bit, 54 MHz
A/D converter	10 bit, 54 MHz

Sound

D/A converter	24 bit, 96 kHz
A/D converter	24 bit, 96 kHz
Signal to noise ratio	90
Distortion and Noise (1kHz)	83 dB
Crosstalk (1kHz)	105 dB
Dynamic Range (1kHz)	83 dB

Power

Power supply	110V, 60Hz
Power consumption	27 W
Standby power consumption	< 4 W

Dimensions

Set dimensions (W x H x D)	435 x 285 x 65 mm
Set weight	3.5 kg
Packaging dimensions (W x H x D)	518 x 159 x 383 mm
Weight incl. Packaging	5.5 kg
