PIAGGIO MP3 300 User Manual

02_17
unlocking position «2».If it cannot be unlocked, contact an Authorised Service Cen-
tre.
02_18

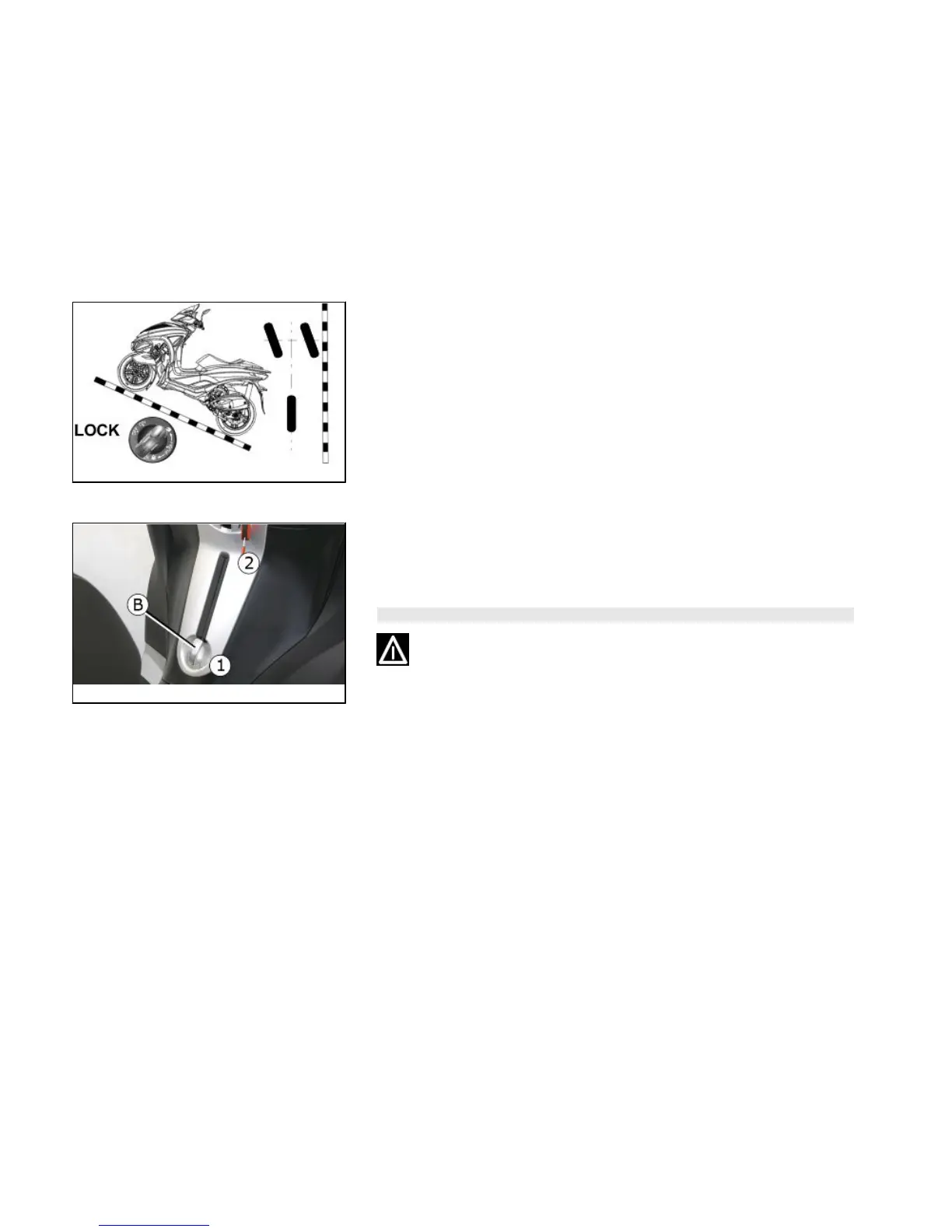

Parking brake (02_18)
To engage the parking brake «B», move the lever from position «1» to position «2».
The vehicles not equipped with the front suspension locking system, are equipped
with a side stand in addition to the centre stand.
CAUTION
The opening of the side stand inhibits the ignition of the engine or turns it off if
in motion.
44
2 Use

PIAGGIO MP3 300 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	278 cc
Fuel System	Electronic fuel injection
Transmission	Automatic CVT
Rear Brake	240 mm disc
Seat Height	780 mm
Dry Weight	225 kg
Cooling System	Liquid-cooled
Front Suspension	Articulated quadrilateral
Front Brake	Two 258 mm discs
Fuel Tank Capacity	11 liters
Front Tire	110/70-13
Rear Tire	140/60-14
Rear Suspension	Dual hydraulic shock absorbers
