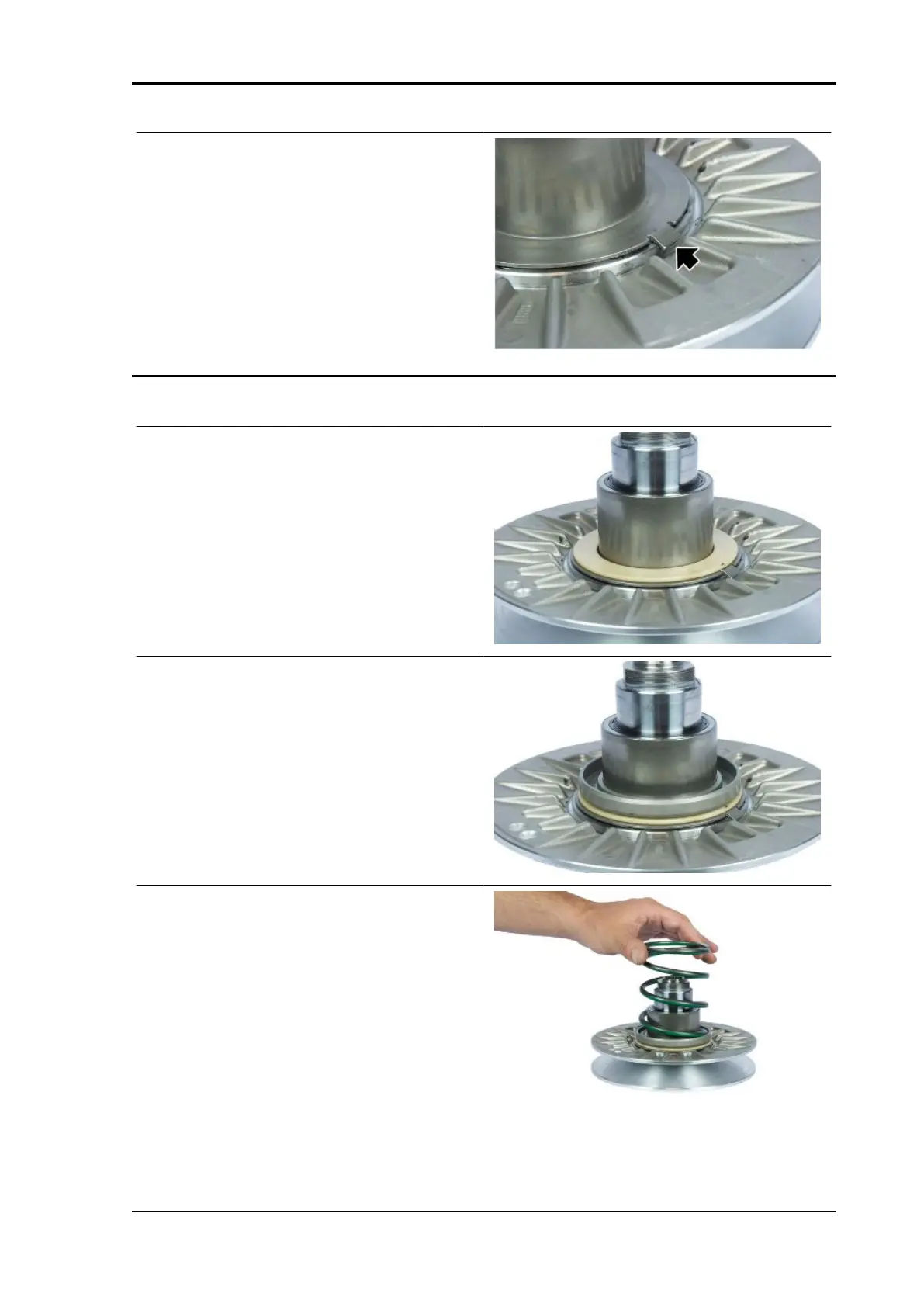

- Insert the closure sheath of the torque server
taking care to respect the positioning of the ap-
pendices in their corresponding seats.
Refitting the driven pulley
- Insert the synthetic ring.
- Insert the lower spring support.
- Insert the spring, lubricating the ends.
MP3 400 hpe E5
Engine
ENG - 59
58
60
