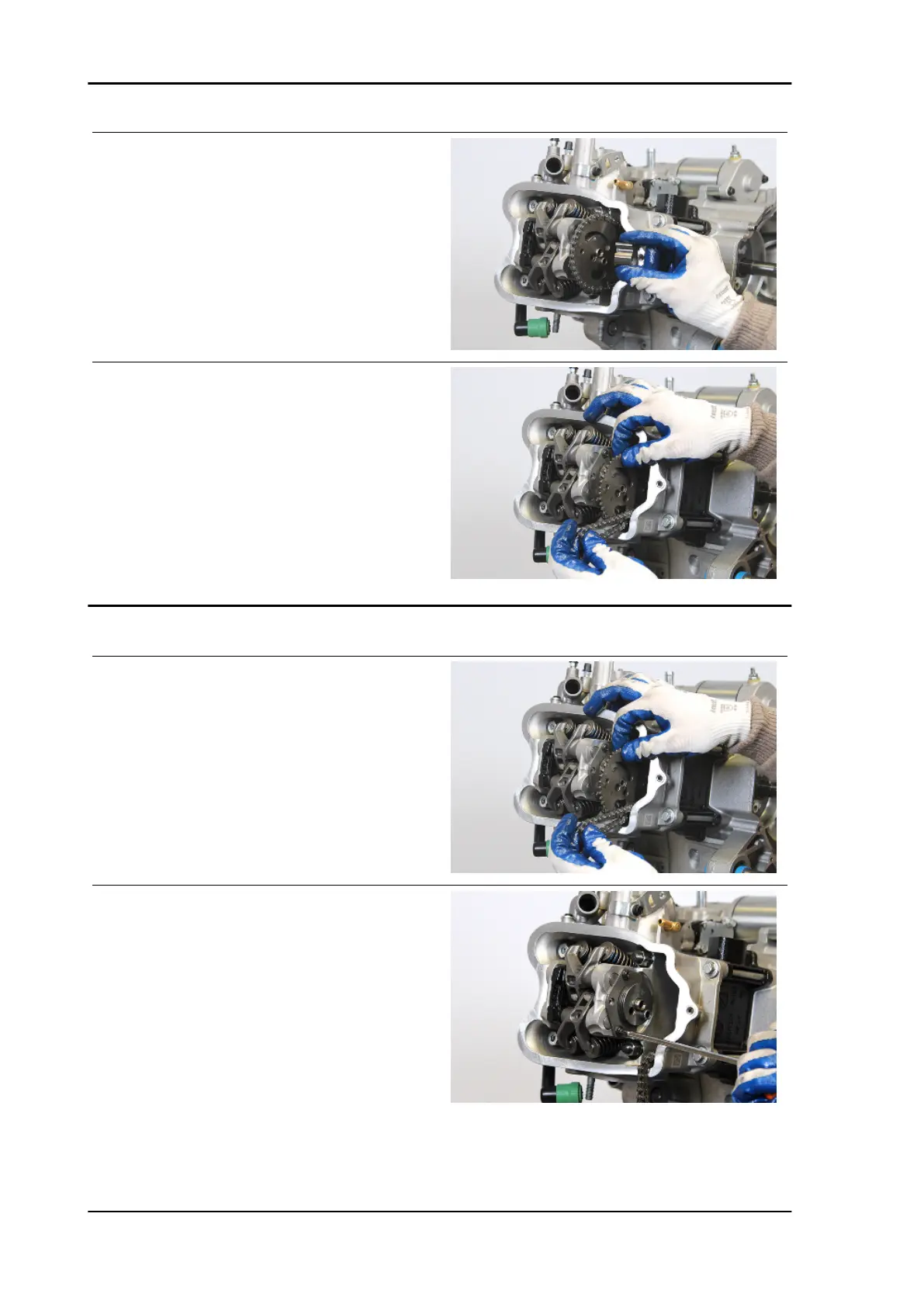

- Remove the counterweight.
- Disengage the chain from the sprocket and re-
move the camshaft control sprocket.
Removing the cam shaft
- Remove the big end cover.
- Remove the timing system control.
- Unscrew the two screws of the camshaft lock.
Engine
MP3 400 hpe E5
ENG - 88
87
89
Table of Contents
Index of Topics
5
General Safety Warnings
8
Electrical System
12
Functional Inspection
14
Vehicle Identification
18
Vehicle Data
18
Engine Data
19
Engine Specifications
19
Maintenance Chart
33
Scheduled Maintenance Table
33
Recommended Products
33
Specifications
37
Automatic Transmission
37
Transmission Cover
37
Removing the Driven Pulley Shaft Bearing
39
Removing the Driven Pulley
40
Inspecting the Clutch Drum
40
Removing the Clutch
42
Final Check
54
Refitting the Driven Pulley
59
Removing the Driving Pulley
62
Flywheel Cover
76
Removing the Stator
78
Removing the Starter Motor
80
Intermediate Gear
82
Removing the Intake Manifold
85
Removing the Cam Shaft
88
Removing the Cylinder Head
90
Removing the Valves
91
Removing the Piston
95
Inspecting the Cylinder Head
98
Valve Clearance Check
99
Inspecting the Cam Shaft
101
Crankcase - Crankshaft
105
Oil Pressure Check
112
Crankshaft Oil Seals
113
Oil Pump
115
Water Pump
120
