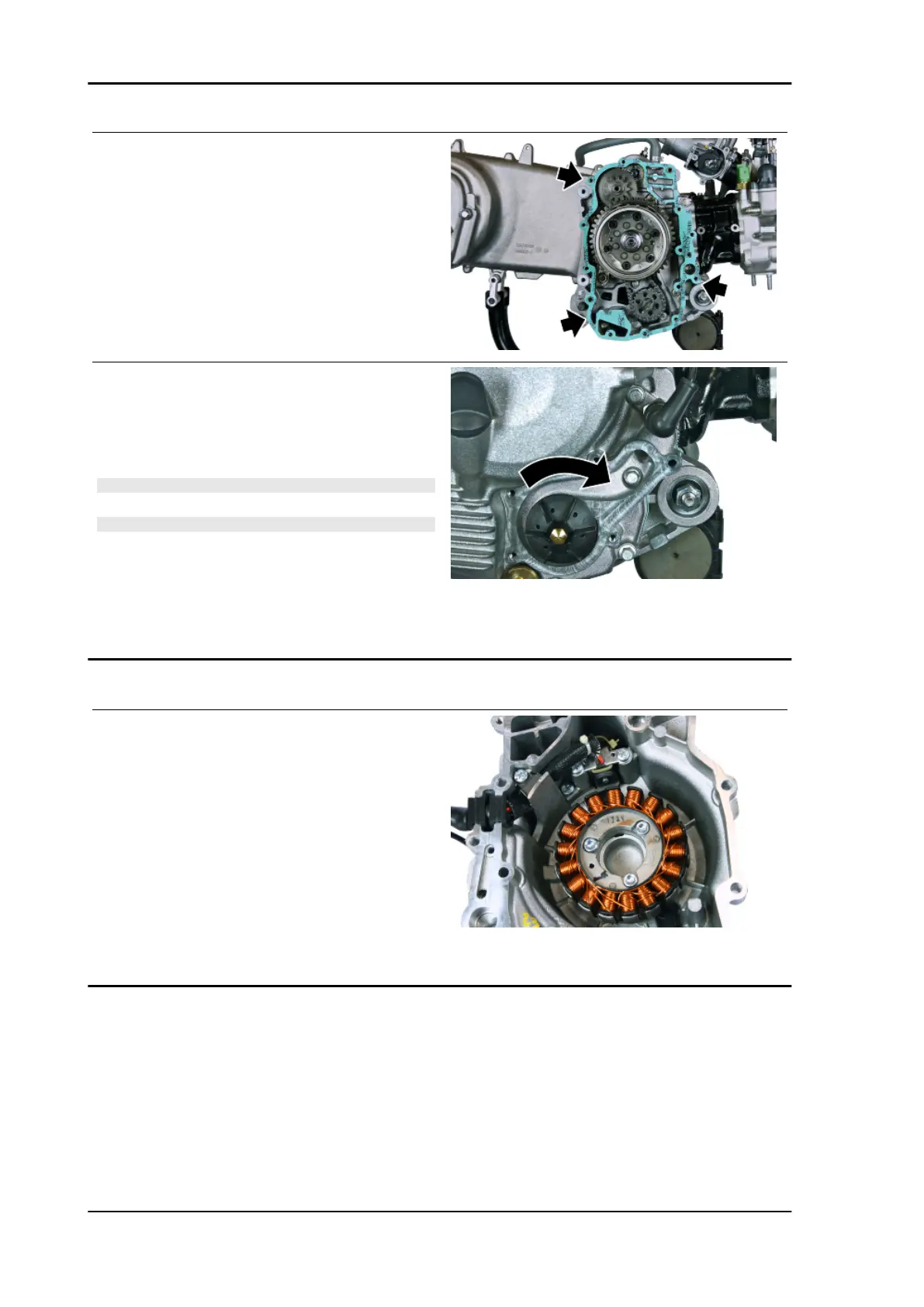

- Remove the cover and the relative gasket.
- The flywheel cover can be removed without un-
screwing the impeller.
- Should it be necessary to remove the impeller,
loosen the moulded nut.
CAUTION
THE THREAD IS ANTICLOCKWISE.
CAUTION
IF THE EFFORT REQUIRED TO UNSCREW THE IMPELLER
IS HIGHER THAN THE NORMAL LOCKING TORQUE, REF-
ERENCE SHOULD BE MADE TO THE REMOVAL OF THE
DISMOUNTED FLYWHEEL COVER IMPELLER.
FAILURE TO FOLLOW THIS WARNING WILL CAUSE AB-
NORMAL AXIAL THRUST THAT CAN CAUSE DAMAGE TO
THE CERAMIC SEAL.
Removing the stator
- Remove the flywheel cover.
- Unscrew the three flywheel fixing screws and the
four pick-up fixing screws and cable harness re-
tainer screws.
- Remove the flywheel and the pick-up complete with wiring harness.
Engine MP3 400 hpe E5
ENG - 78
