Installation
Notes
! Check all connections and systems before
final installation.
! Do not use unauthorized parts as this may
cause malfunctions.
! Consult your dealer if installation requires dril-
ling of holes or other modifications to the vehi-
cle.
! Do not install this unit where:
— it may interfere with operation of the vehi-
cle.
— it may cause injury to a passenger as a re-
sult of a sudden stop.
! Do not install the display where it may (i) ob-
struct the driver’s vision, (ii) impair the perfor-
mance of any of the vehicle’s operating
systems or safety features, including air bags,
hazard lamp buttons or (iii) impair the driver’s
ability to safely operate the vehicle.
! The semiconductor laser will be damaged if it
overheats. Install this unit away from hot
places such as near the heater outlet.

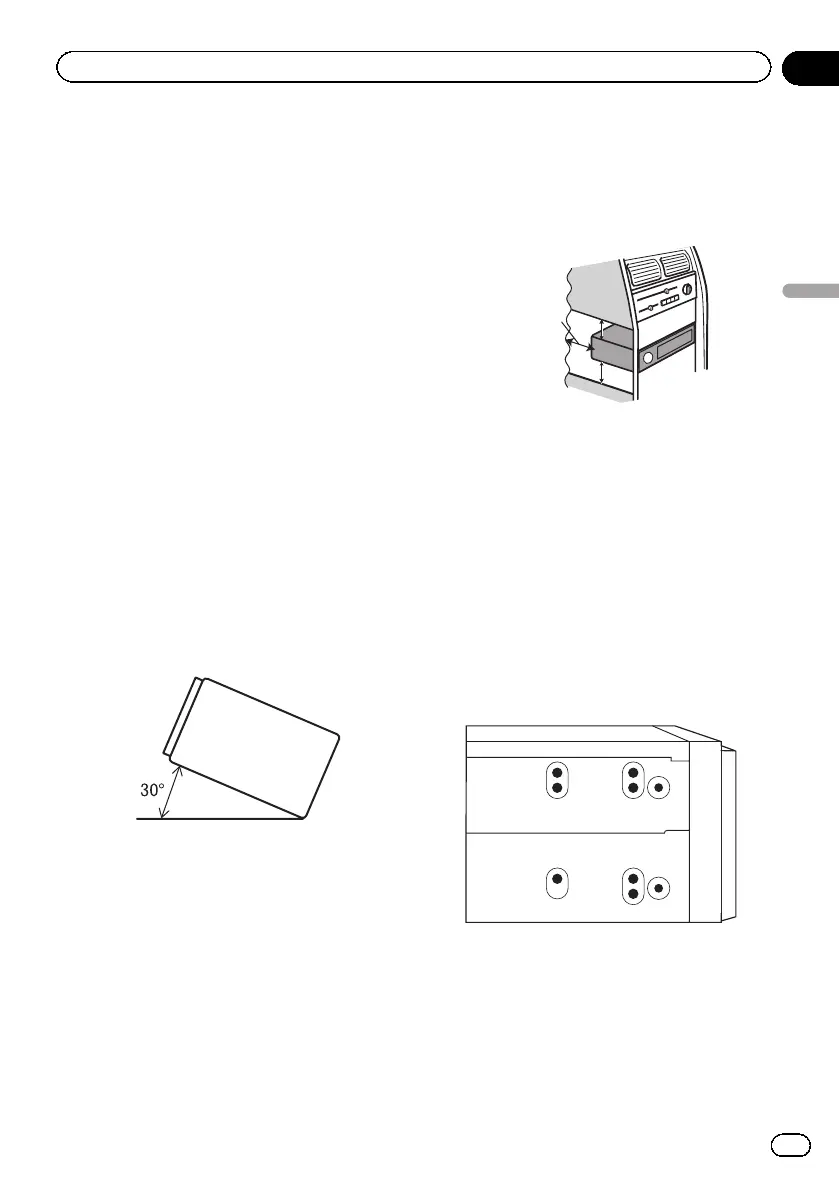

! Optimum performance is obtained when the
unit is installed at an angle of less than 30°.
! To ensure proper heat dispersal when using
this unit, make sure you leave ample space
behind the rear panel and wrap any loose
cables so they are not blocking the vents
when installing the unit.
Leave ample
space
5 cm
5 cm
! To some types of vehicles, this unit cannot be
properly installed. In such case, use the op-
tional installation kit (ADT-VA133).
Installation using the screw
holes on the side of the unit
% Fastening the unit to the factory radio-
mounting bracket.
Position the unit so that its screw holes are
aligned with the screw holes of the bracket,
and tighten the screws at 3 or 4 locations on
each side.
<QRB3126-A/N>83
En
83
Section
17
Installation
Installation
