C
Section
~•n_s_t_al_la_t_io~n~
_____________________________
)CBI

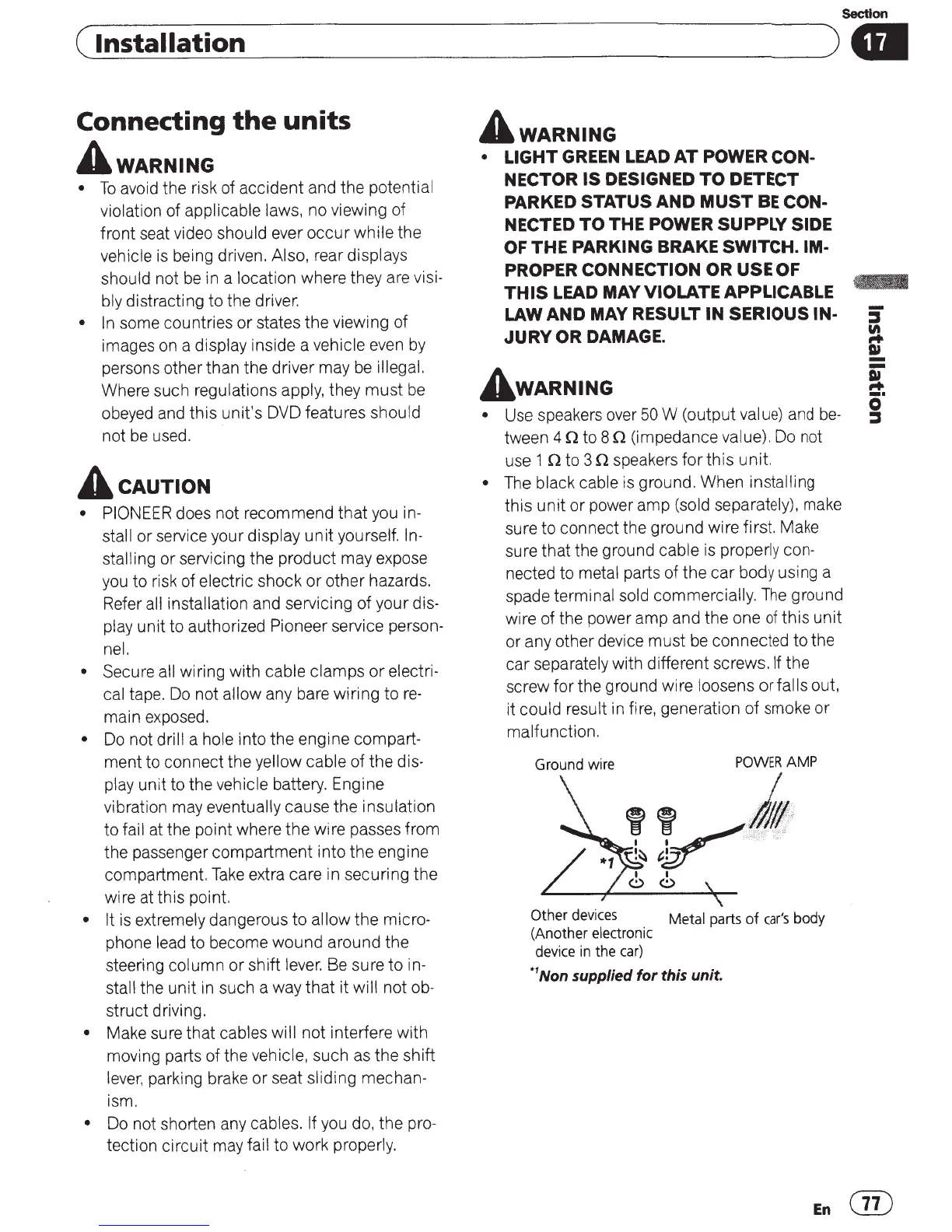

Connecting
the
units
A wARNING
•
To
avoid the risk of accident and the potential
violation of applicable laws, no viewing of
front seat video should ever
occur
while the
vehicle
is
being driven. Also, rear displays
should not
be
in a location where they are
visi-
bly distracting to the driver.
•
In
some countries
or
states the viewing of
images
on
a display inside a vehicle
even
by
persons other than the driver may
be
illegal.
Where such regulations apply, they must
be
obeyed and this unit's DVD features should
not
be
used.
A
cAUTION
• PIONEER does not recommend that you
in-
stall or service your display
unit
yourself.
In-
stalling or servicing the product may expose
you
to risk of electric shock
or
other hazards.
Refer all installation and servicing
of
your
dis-
play unit to authorized
Pioneer
service
person-
nel.
•
Secure all wiring with cable clamps
or
electri-
cal tape. Do not allow any bare wiring
tore-
main exposed.
•
Do
not drill a hole into the engine
compart-
ment to connect the yellow cable of the
dis-
play unit to the vehicle battery. Engine
vibration may eventually cause the insulation
to fail at the point where the wire passes from
the passenger compartment
into the engine
compartment.
Take
extra care in securing the
wire
at
this point.
• It
is
extremely dangerous
to
allow the micro-
phone lead to become wound around the
steering column or shift
lever.
Be
sure to
in-
stall the unit in such a way that it will not
ob-
struct driving.
• Make sure that cables will not interfere with
moving parts of the vehicle, such as the shift
lever,
parking brake or seat sliding mechan-
ism.
• Do not shorten any cables.
If
you do, the
pro-
tection circuit may fail to work properly.
A
wARNING
• LIGHT
GREEN
LEAD
AT
POWER CON-
NECTOR
IS
DESIGNED
TO
DETECT
PARKED
STATUS
AND
MUST
BE
CON-
NECTED
TO
THE POWER SUPPLY SIDE
OF
THE
PARKING
BRAKE
SWITCH. IM-
PROPER CONNECTION OR USE OF
THIS
LEAD MAY VIOLATE APPLICABLE
LAW
AND
MAY RESULT
IN
SERIOUS IN-
JURY
OR DAMAGE.
A
wARNING
•
Use speakers over
50
W (output value)
and
be-
tween
4
n
to
8
n
(impedance value).
Do
not
use
1
n
to
3
n speakers
for
this unit.
•
The black cable
is
ground. When installing
this unit or power amp (sold separately), make
sure to connect the ground wire first. Make
sure that the ground cable
is
properly con-
nected to metal parts of the car body using a
spade terminal sold commercially.
The
ground
wire of the power amp and the one
of
this unit
or any other device must
be
connected to the
car separately with different screws.lf the
screw for the ground wire loosens or falls out,
it could result in fire, generation
of
smoke or
malfunction.
Ground wire
POWER
AMP
''
.cit
!~tv
I I
(!)
(!)
Other
devices
Metal parts
of
car's
body
(Another electronic
device
in
the
car)
.,
Non supplied for this unit.
En®
To Next Page
