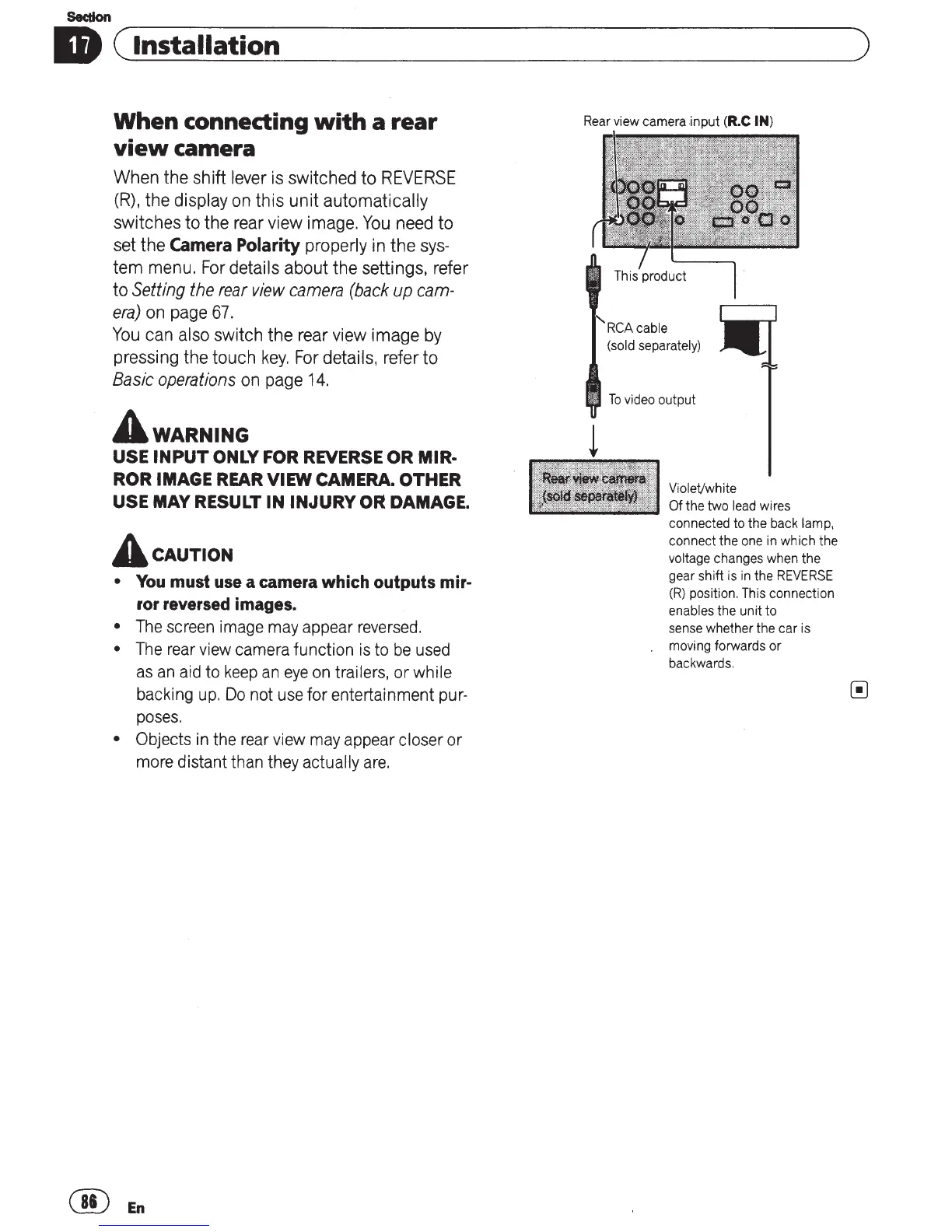

D ( Installation
When conneding with a rear
view camera
When the shift lever is switched to REVERSE
(R), the display on this unit automatically
switches to the
rear view image. You need to
set the camera Polarity properly in the sys-
tem menu. For details about the settings, refer
to
Setting the rear view camera (back up cam-
era) on page 67.
You can also switch the rear view image by
pressing the touch key. For details, refer to
Basic operations on page 14.
A wARNING
USE INPUT ONLY FOR REVERSE OR MIR-
ROR IMAGE
REAR VIEW CAMERA. OTHER
USE MAY
RESULT IN INJURY OR DAMAGE.
A cAUTION
•
You must use a camera which outputs mir-
ror reversed images.
• The screen image may appear reversed.
• The rear view camera function is to be used
as an aid to keep an eye on trailers, or while
backing up. Do not use for entertainment pur-
poses.
• Objects in the rear view may appear closer or
more distant than they actually are.
@En
Rear view camera input (R.C IN)
!'..
RCA cable
(sold separately)
To video output
Violet/white
Of the two lead wires
connected
to the back lamp,
connect the one in which the
voltage changes when the
gear shift is in the REVERSE
(R) position. This connection
enables the unit to
sense whether the car is
moving forwards or
backwards.
)
