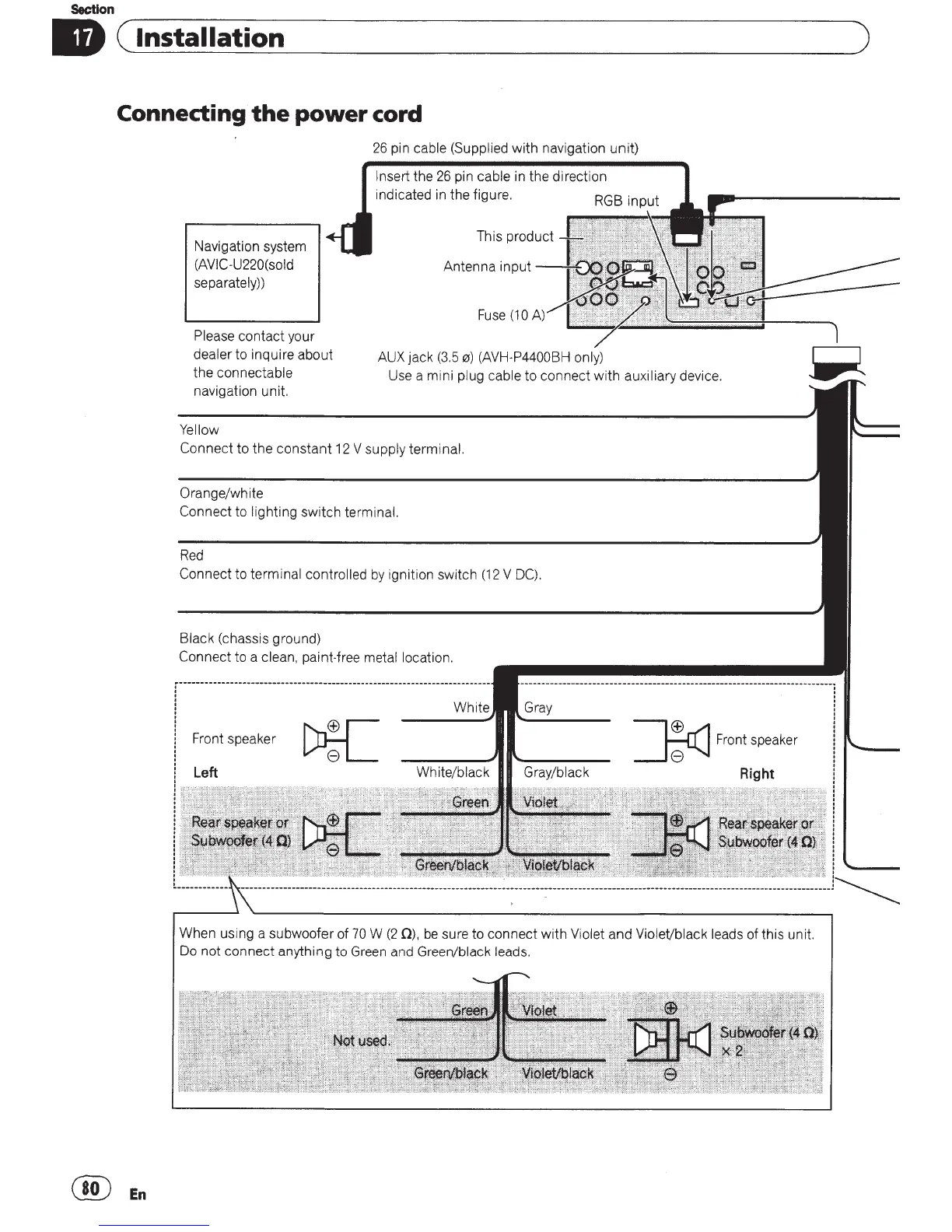

( Installation
Conneding
the
power
cord
En
Navigation system
(AVIC-U220(sold
separately))
26
pin
cable (Supplied
with navigation unit)
Insert the
26
pin
cable
in the direction
indicated
in
the figure.
RGB
input
This product
Antenna input
Fuse
(
10
AUX
jack
(3.5
0)
(AVH-P4400BH only)
Please
contact your
dealer to inquire about
the
connectable
navigation unit.
Use
a mini
plug cable
to connect with
au
xiliary
device.
Yellow
Connect
to the constant
12
V supply terminal.
Orange/white
Connect to lighting switch
terminal.
Red
Connect
to
terminal controlled
by
ignition switch
(12
V
DC).
Black
(chassis ground)
Connect
to a clean,
paint-free
metal location.
Front speaker
-
Front speaker
Me
Right
When using a subwoofer of
70
W
(2
0),
be
sure to connect with
Violet
and Violet/black leads
of this unit.
Do
not connect anything to
Green
and
Green/black leads.
)
