Connecting your equipment
Installing your speaker system
At the very least, front left and right speakers only are necessary. Note that your main surround speakers should
always be connected as a pair, but you can connect just one surround back speaker if you like (it must be con-
nected to the left surround back terminal).

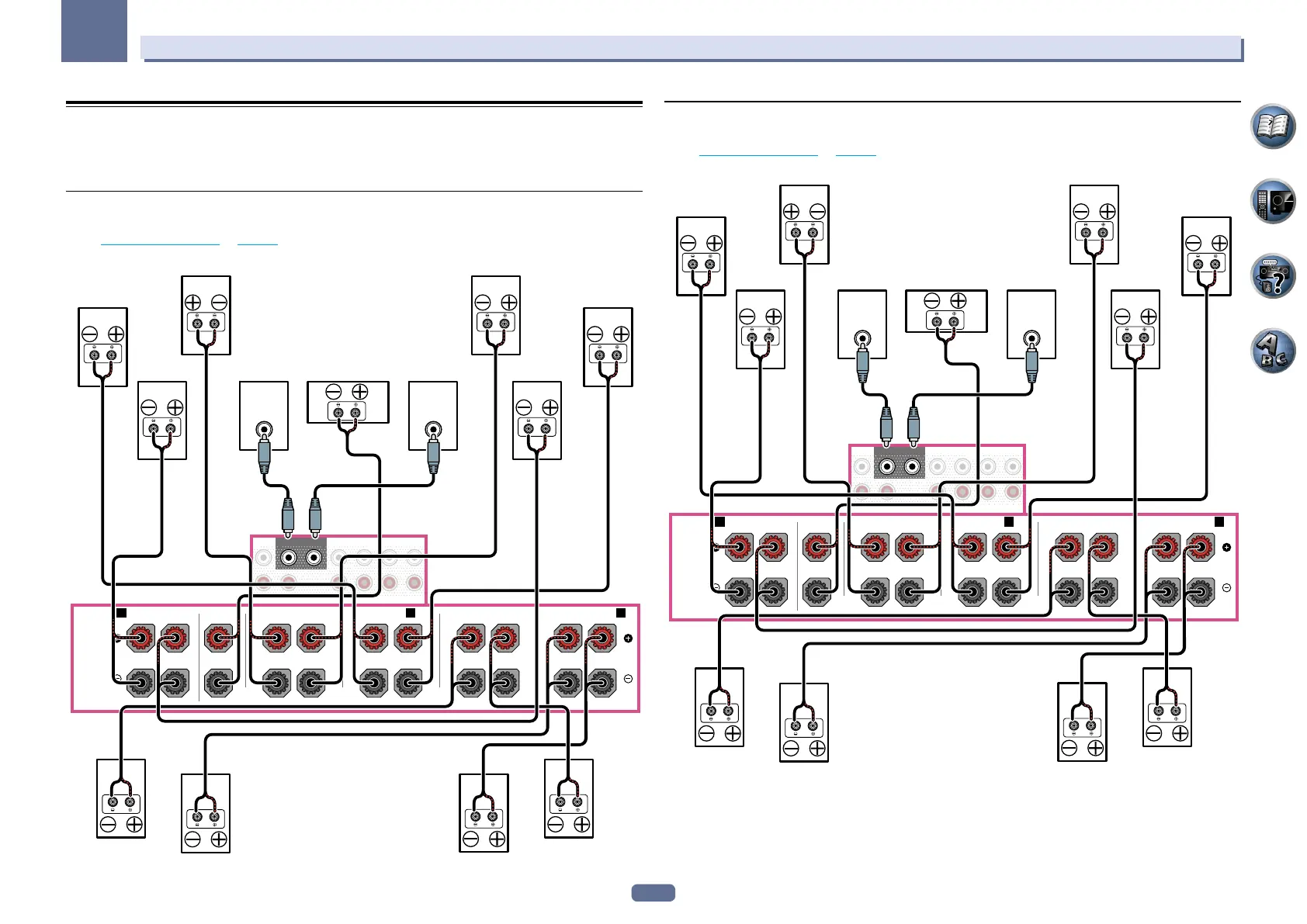

[A] 9.2 channel surround system (Front height/Front wide) connection
! If necessary, select ‘9.1ch FH/FW’ from the Speaker System menu.
See Speaker system setting on page 97 to do this.
! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
SUBWOOFER
12
SURROUND SURR BACK F HEIGHT
(Single)
(Single)
FRONT
CENTER
PRE OUT
F WIDE
SPEAKERS
FRONT CENTER
A A
SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
B
RL
RLRLRLRL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
Front height leftFront height right
Front wide leftFront wide right
Front leftFront right Center Subwoofer 2Subwoofer 1
Surround left
Surround back right Surround back left
Surround right
[B] 7.2 channel surround system & Speaker B connection
! Select ‘7.1ch + Speaker B’ from the Speaker System menu.
See Speaker system setting on page 97 to do this.
! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
SUBWOOFER
12
SURROUND SURR BACK F HEIGHT
(Single)
(Single)
FRONT
CENTER
PRE OUT
F WIDE
SPEAKERS
FRONT CENTER
A A
SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
B
RL
RLRLRLRL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
Front height leftFront height right
Speaker B- leftSpeaker B- right
Front leftFront right Center Subwoofer 2Subwoofer 1
Surround left
Surround back right Surround back left
Surround right

Pioneer sc-lx86 Specifications

General

Receiver type	Surround
Output impedance	6 Ω
Speaker selector	A+B
Audio output channels	9.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	4
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS-ES, DTS-HD, DTS-HD Master Audio
Apple docking compatibility	iPad, iPhone, iPod
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Graphical user interface (GUI) language	English, French, German, Italian, Russian, Spanish
AC input voltage	230-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W
THX-certified	THX Select2 Plus
Cables included	AC
