Pioneer sc-lx86 User Manual

30
03
Connecting your equipment
About HDMI
The HDMI connection transfers uncompressed digital video, as well as almost every kind of digital audio.
This receiver incorporates High-Definition Multimedia Interface (HDMI
®
) technology.
This receiver supports the functions described below through HDMI connections.
! Digital transfer of uncompressed video (contents protected by HDCP (1080p/24, 1080p/60, etc.))
! 3D signal transfer
! Deep Color signal transfer
! x.v.Color signal transfer
! ARC (Audio Return Channel)
! 4K signal transfer
— This may not operate properly, depending on the connected equipment.
— 4K 24p, 4K 25p and 4K 30p signals are supported.
— Not supported for the HDMI IN 6 and IN 7 terminals.
! Input of multi-channel linear PCM digital audio signals (192 kHz or less) for up to 8 channels
! Input of the following digital audio formats:
— Dolby Digital, Dolby Digital Plus, DTS, High bitrate audio (Dolby TrueHD, DTS-HD Master Audio, DTS-HD
High Resolution Audio), DVD-Audio, CD, SACD (DSD signal), Video CD, Super VCD
! Synchronized operation with components using the Control with HDMI function (see Control with HDMI func-
tion on page 68)
Note
! An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High
Bandwidth Digital Content Protection (HDCP). If you choose to connect to a DVI connector, you will need a
separate adaptor (DVIdHDMI) to do so. A DVI connection, however, does not support audio signals. Consult
your local audio dealer for more information.
! If you connect a component that is not compatible with HDCP, an HDCP ERROR message is displayed on
the front panel display. Some components that are compatible with HDCP still cause this message to be dis-
played, but so long as there is no problem with displaying video this is not a malfunction.
! Depending on the component you have connected, using a DVI connection may result in unreliable signal
transfers.
! This receiver supports SACD, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio. To take advantage
of these formats, however, make sure that the component connected to this receiver also supports the corre-
sponding format.
! Use a High Speed HDMI
®
/
TM
cable. If an HDMI cable other than a High Speed HDMI
®
/
TM
cable is used, it may
not work properly.
! When an HDMI cable with a built-in equalizer is connected, it may not operate properly.
! Signal transfer is only possible when connected to a compatible component.
! HDMI format digital audio transmissions require a longer time to be recognized. Due to this, interruption in the
audio may occur when switching between audio formats or beginning playback.
! Turning on/off the device connected to this unit’s HDMI OUT terminal during playback, or disconnecting/con-
necting the HDMI cable during playback, may cause noise or interrupted audio.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and other countries.
“x.v.Color” and are trademarks of Sony Corporation.

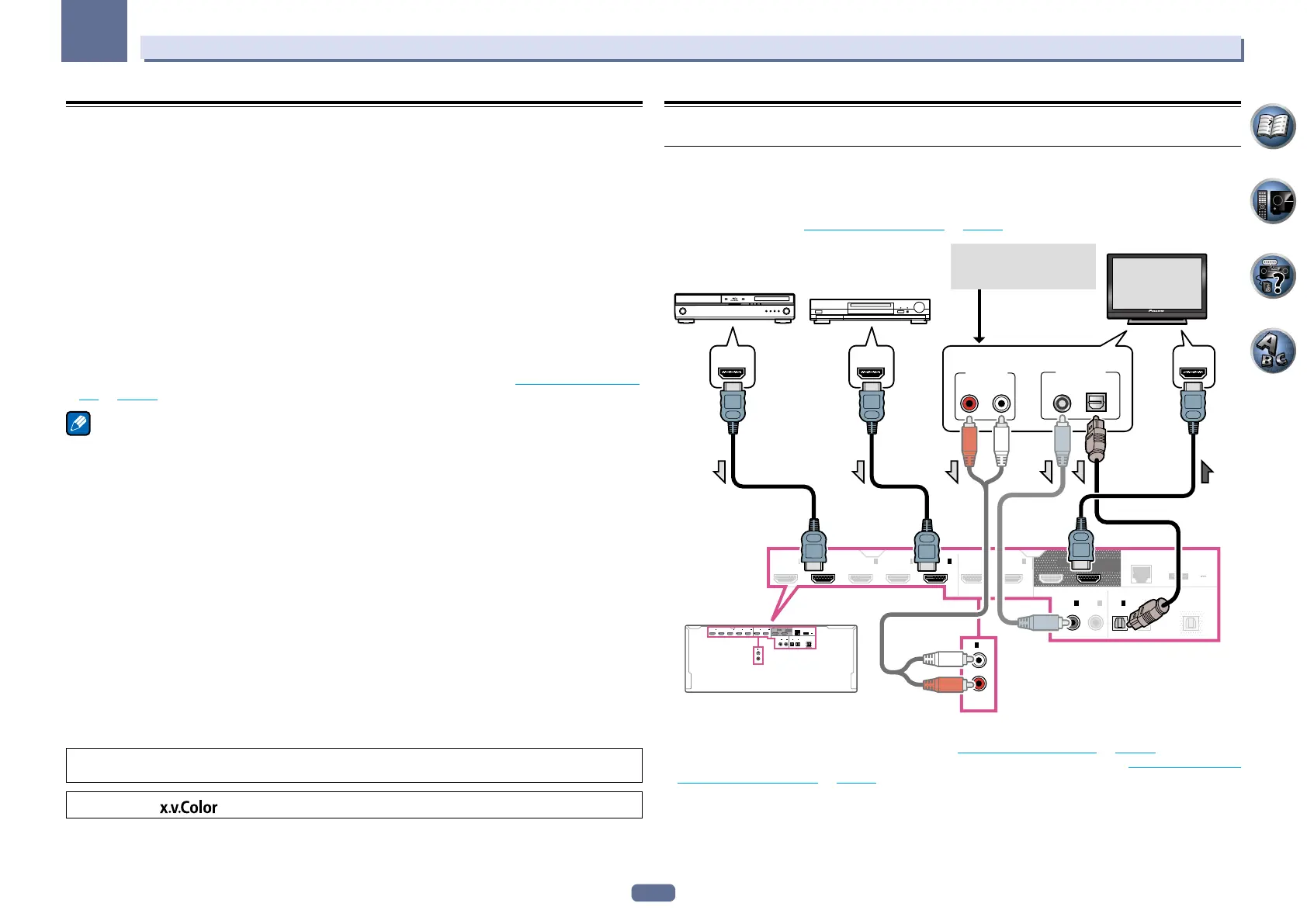

Connecting your TV and playback components
Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray Disc player (BD), etc.), you can connect it
to this receiver using a commercially available HDMI cable.
If the TV and playback components support the Control with HDMI feature, the convenient Control with HDMI
functions can be used (see Control with HDMI function on page 68).
BD IN
LAN
(
10/100
)
OUT 2OUT 1
DC OUTPUT
for WIRELESS LAN
(
OUTPUT
5 V
0.6 A MAX
)
OPTICALCOAXIAL
ASSIGNABLEASSIGNABLE
ASSIGN-
ABLE
(CONTROL)
IN
1
(
DVD
)
IN
1
(
CD
)
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
4
(
VIDEO
)
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
6
IN
7
OUT
ASSIGN-
ABLE
IN
1
(
CD
)
BD IN
LAN
(
10/100
)
OUT 2 OUT 1
DC OUTPUT
for WIRELESS LAN
(
OUTPUT
5 V
0.6 A MAX
)
OPTICALCOAXIAL
ASSIGNABLE ASSIGNABLE
(CONTROL)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
4
(
VIDEO
)
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
6
IN
7
OUT
DIGITAL OUT
COAXIAL OPTICAL
ANALOG
RL
AUDIO OUT
HDMI INHDMI OUT HDMI OUT
HDMI/DVI-compatible
Blu-ray Disc player
Other HDMI/DVI-
equipped component
HDMI/DVI-compatible
monitor
Select one
This connection is required in
order to listen to the sound of
the TV over the receiver.
! When connecting to an HDMI/DVI-compatible monitor using the HDMI OUT 2 terminal, switch the HDMI
output setting to HDMI OUT 2 or HDMI OUT ALL. See Switching the HDMI output on page 79.
! For input components, connections other than HDMI connections are also possible (see Connecting your DVD
player with no HDMI output on page 31).

Pioneer sc-lx86 Specifications

General

Receiver type	Surround
Output impedance	6 Ω
Speaker selector	A+B
Audio output channels	9.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	4
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS-ES, DTS-HD, DTS-HD Master Audio
Apple docking compatibility	iPad, iPhone, iPod
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Graphical user interface (GUI) language	English, French, German, Italian, Russian, Spanish
AC input voltage	230-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W
THX-certified	THX Select2 Plus
Cables included	AC
