Pioneer sc-lx86 User Manual

32
03
Connecting your equipment
Connecting your TV with no HDMI input

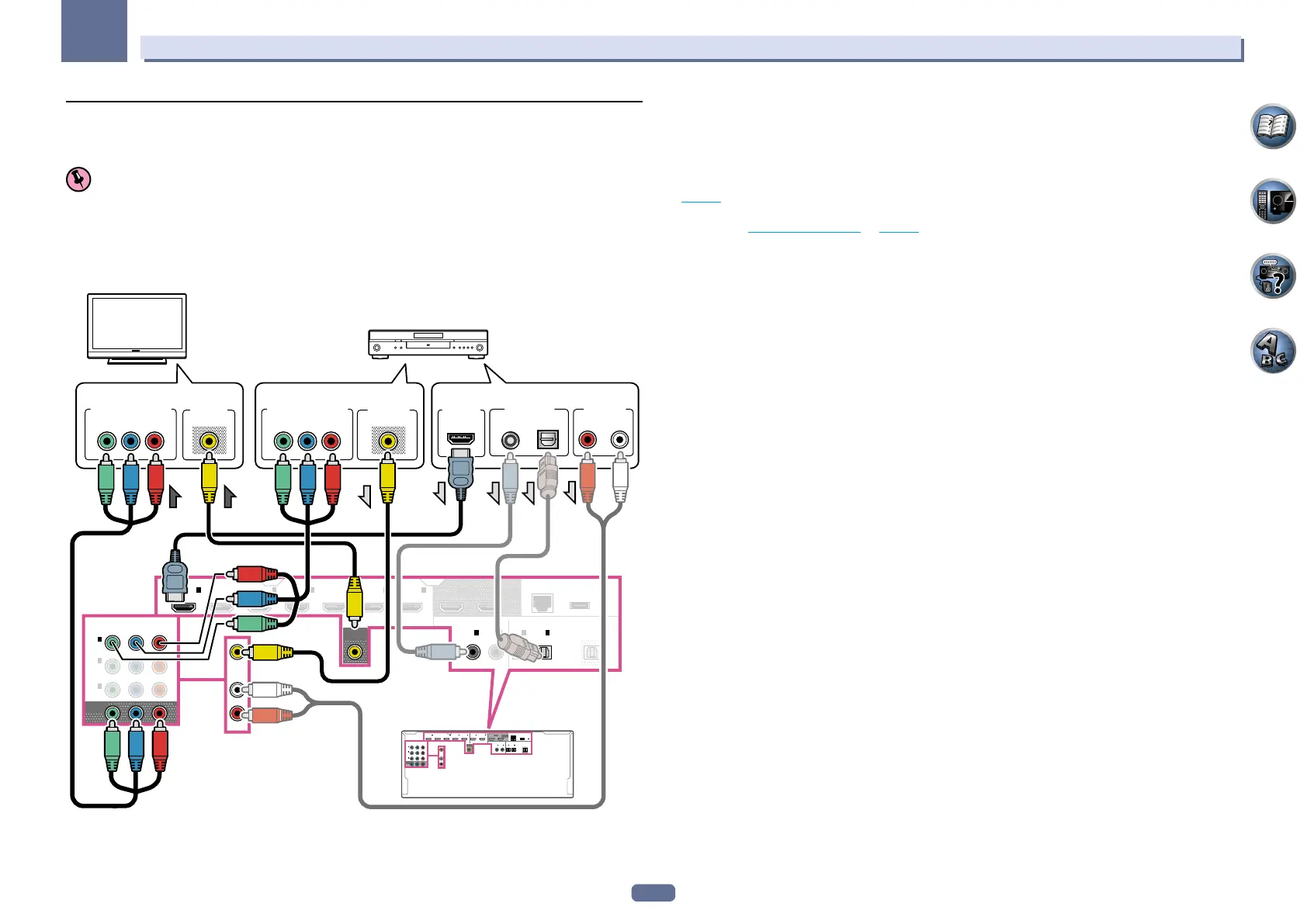

This diagram shows connections of a TV (with no HDMI input) and DVD player (or other playback component) to
the receiver.
Important
! With these connections, the picture is not output to the TV even if the DVD player is connected with an HDMI
cable. Connect the receiver and TV using the same type of video cable as used to connect the receiver and
player.
! Also, when the receiver and TV are connected by anything other than an HDMI cable, the OSD function allow-
ing display of the receiver’s settings, operations, etc., on the TV’s screen cannot be used. In this case, watch
the receiver’s front panel display while performing the various operations and making settings.
BD IN
LAN
(
10/100
)
OUT 2OUT 1
DC OUTPUT
for WIRELESS LAN
(
OUTPUT
5 V
0.6 A MAX
)
OPTICALCOAXIAL
ASSIGNABLE ASSIGNABLE
ASSIGNABLE
(CONTROL)
DVD
IN
MONITOR
OUT
MONITOR
OUT
COMPONENT VIDEO
P B Y
P
R
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
4
(
VIDEO
)
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
1
(
DVD
)
IN
2
(
DVR/
BDR
)
IN
6
IN
7
OUT
IN
3
(
VIDEO
)
BD IN
LAN
(
10/100
)
OUT 2OUT 1
DC OUTPUT
for WIRELESS LAN
(
OUTPUT
5 V
0.6 A MAX
)
OPTICALCOAXIAL
ASSIGNABLEASSIGNABLE
ASSIGNABLE
(CONTROL)
DVD
IN
MONITOR
OUT
MONITOR
OUT
COMPONENT VIDEO
P B Y
P
R
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
4
(
VIDEO
)
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
IN
1
(
DVD
)
IN
2
(
DVR/
BDR
)
IN
6
IN
7
OUT
IN
3
(
VIDEO
)
VIDEO
VIDEO OUT
VIDEO
VIDEO IN
DIGITAL OUT
COAXIAL
ANALOG
RL
AUDIO OUT
OPTICAL
Select oneSelect oneSelect one
HDMI OUT
Y
PB
PR
COMPONENT VIDEO OUT
Y
PB
PR
COMPONENT VIDEO IN
TV
DVD player, etc.
! In order to listening to HD audio with this receiver, connect an HDMI cable, and use analog video cable for
video signal input.
Depending on the player, it may not be possible to output video signals to both HDMI and other video output
(composite, etc.) simultaneously, and it may be necessary to make video output settings. Please refer to the
operating instructions supplied with your player for more information.
! If you want to listen to the sound of the TV over the receiver, connect the receiver and TV with audio cables
(page 30).
! If you use an optical digital audio cable, you’ll need to tell the receiver which digital input you connected the
player to (see The Input Setup menu on page 47).

Pioneer sc-lx86 Specifications

General

Receiver type	Surround
Output impedance	6 Ω
Speaker selector	A+B
Audio output channels	9.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	4
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS-ES, DTS-HD, DTS-HD Master Audio
Apple docking compatibility	iPad, iPhone, iPod
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Graphical user interface (GUI) language	English, French, German, Italian, Russian, Spanish
AC input voltage	230-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W
THX-certified	THX Select2 Plus
Cables included	AC
